Toyota Core Electric (3,000-6,500 LBS)
| Make | Toyota |
| Model | Core Electric (3,000-6,500 LBS) |
| Type | Electric Forklifts |
How can we help?
Description
Overview

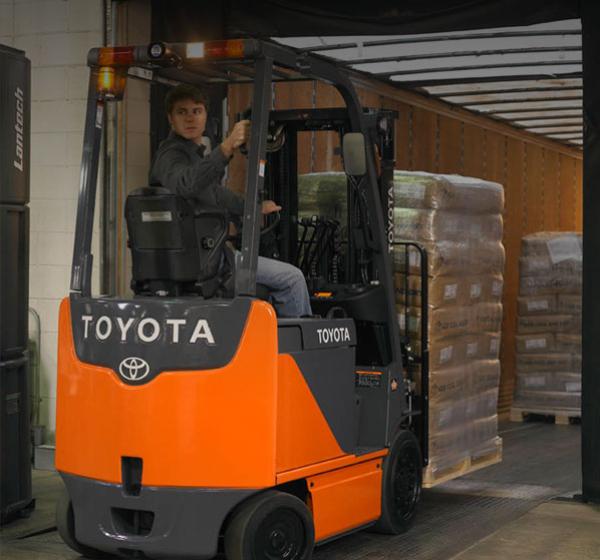

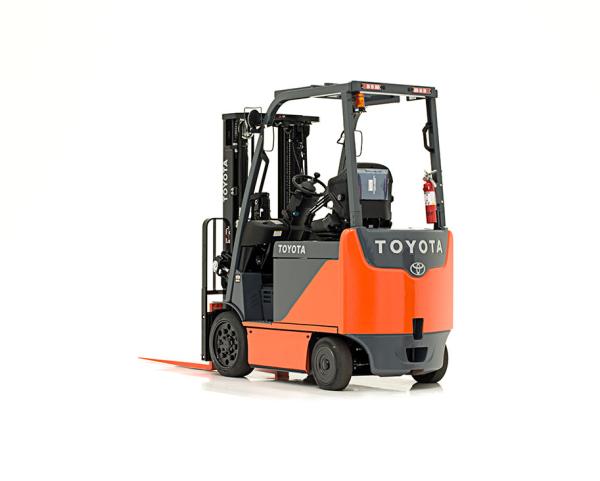

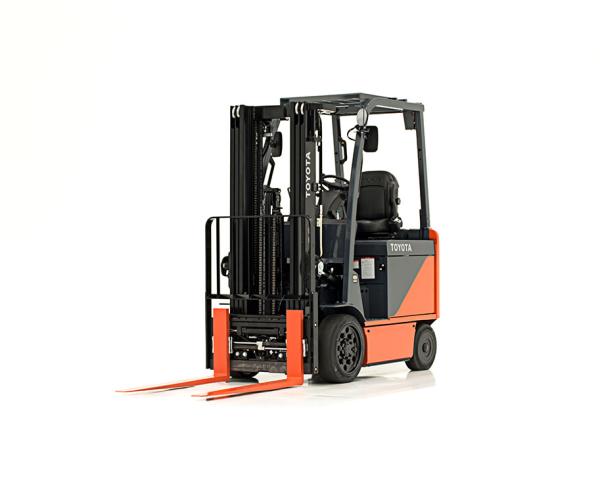

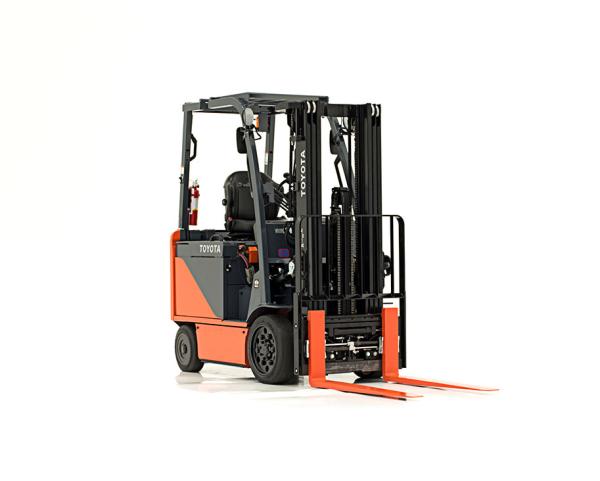

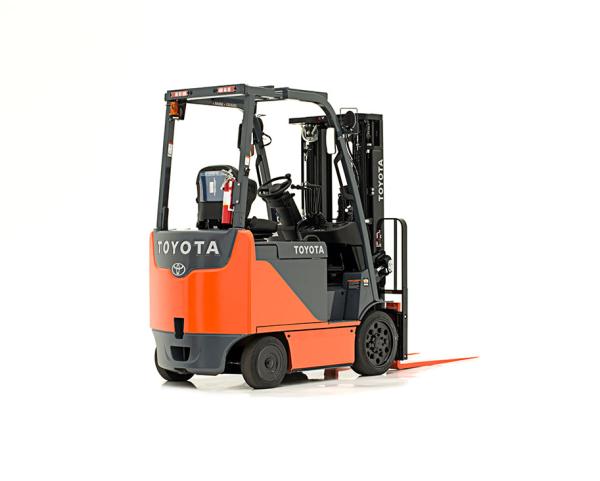

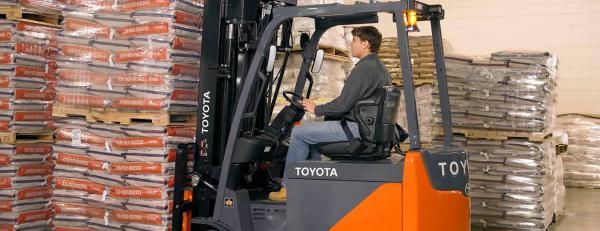

The Toyota Core Electric Forklift is an ideal compact four-wheel electric lift truck solution for most indoor and warehouse applications. The Core Electric Forklift is capable of moving most any standard load while maintaining the ability to fully operate in spaces as small as 11 feet wide. And Toyota designed and built AC motors provide new levels of performance, efficiency, and reliability to maximize your productivity and return on investment.
T-Matics Fleet Management
Toyota’s Fleet Management System, T-Matics, utilizes a Vehicle Management System to track and report forklift operating behavior and/or the operating behavior of the individual forklift operator, including utilization rates, impacts, location and more. Available on any size forklift fleet, T-Matics provides actionable data to make better operational decisions.
Continued Performance
According to recent studies by Peerless Research Group, more and more forklift owners plan to keep their forklifts for 10+ years! Just like a car, truck or other motorized asset, periodic maintenance, service and upkeep is required, even under normal operating conditions, to keep your Toyota Core Electric Forklift operating to peak performance. It is not uncommon for Toyota forklift owners to well exceed 10 years of use, as long as the forklift is properly maintained. Paired with a Planned Maintenance (PM) Plan, the Core Electric Forklift can be an asset for your company for years to come.
Models
Core Electric Forklift
| Model Number | Load Capacity* (lbs.) | Max. Travel Speed Full Load (MPH) | Max. Lift Speed Full Load (FPM) | Max. Gradeability Full Load (%) | Basic Right Angle Stack** (IN.) |
|---|---|---|---|---|---|
| 8FBC15U | 3,000 | 11.5 (36V), 11.5 (48V) | 88 (36V), 108 (48V) | 20 (36V), 21 (48V) | 82.1 |
| 8FBC18U | 3,500 | 11.3 (36V), 11.3 (48V) | 79 (36V), 100 (48V) | 18 (36V), 20 (48V) | 82.1 |
| 8FBCU20 | 4,000 | 9.9 (36V), 11.5 (48V) | 67 (36V), 89 (48V) | 25 (36V), 23 (48V) | 87.2 |
| 8FBCU20-COMP | 4,000 | 9.9 (36V), 11.5 (48V) | 67 (36V), 89 (48V) | 25 (36V), 23 (48V) | 85.2 |
| 8FBCHU25 | 5,000 | 9.6 (36V), 11.5 (48V) | 59 *36V), 79 (48V) | 21 (36V), 24 (48V) | 93.1 |
| 8FBCU25 | 5,000 | 9,6 (36V), 11.5 (48V) | 59 (36V), 79 (48V) | 21 (36V), 19 (48V) | 87.6 |
| 8FBCU25-COMP | 5,000 | 9.6 (36V), 11.5 (48V) | 59 (36V), 79 (48V) | 21 (36V), 19 (48V) | 85.6 |
| 8FBCU28 | 5,500 | 9.3 (36V), 11.5 (48V) | 55 (36V), 73 (48V) | 17 (36V), 20 (48V) | 90.3 |
| 8FBCU30 | 6,000 | 9.0 (36V), 11.2 (48V) | 51 (36V), 69 (48V) | 17 (36V), 20 (48V) | 94.9 |
| 8FBCU32 | 6,500 | 9.0 (36V), 11.2 (48V) | 47 (36V), 65 (48V) | 17 (36V, 19 (48V) | 96.4 |
Specifications
- Length to Forkface: 79.9 - 91.3 in
- Load Capacity: 3,000 - 6,500 lb. Load Capacity
- Overall Width: 41.9 - 43.7 in
- Overhead Guard Height: 88 in
- Travel Speed Full Load: 9 - 11.5 mph Travel Speed Full Load
- Voltage: 36/ 48 Voltage
Features
- 11-12‘ aisle widths
- Foot Activated Parking Brake
- Manual Return to Neutral
- Operator Presence Sensing System (OPSS)
- Hydrostatic (On Demand) Power Steering
- Options: 130+
- Easy-access hydraulic motor
- Heavy-duty, non-slip floor mat
- Adjustable front headlights
- One-way automatic fork leveling
- Punched plate entry/exit step
- Digital (LCD) multifunction display
- Bolt-on Overhead Guard
- Key Lowering Interlock
- 11.8‘ diameter two-spoke steering wheel
- Up to 6,500 lbs. Lifting Capacity
- Dual operator assist grips
- Lift Height: 23 FT.
- Planned Maintenance Indicator
- Toyota designed AC motors
- Easy-access, no-tools-required floorboard
- System of Active Stability (SAS)
- Battery compartment hood assist
- Easy-access Controllers
- Three forms of energy regeneration
- Electric directional shift control
- Four-way adjustable full-suspension seat
- Cowl-mounted hydraulic controls
- Selling Electric Forklift: No. 1
- Up to 23‘ Lift Height
- AC motors (no brushes or commutator)
