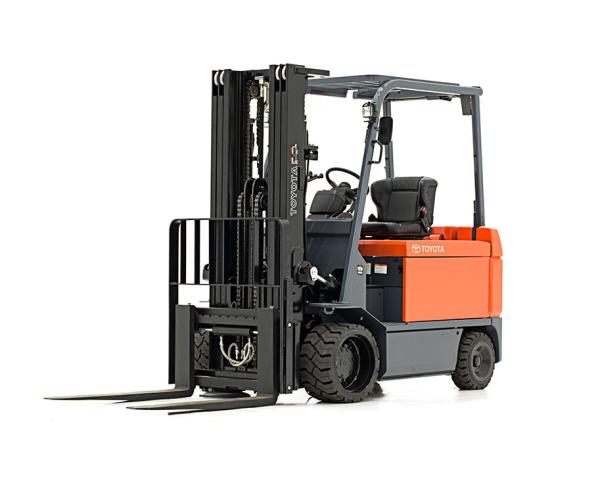

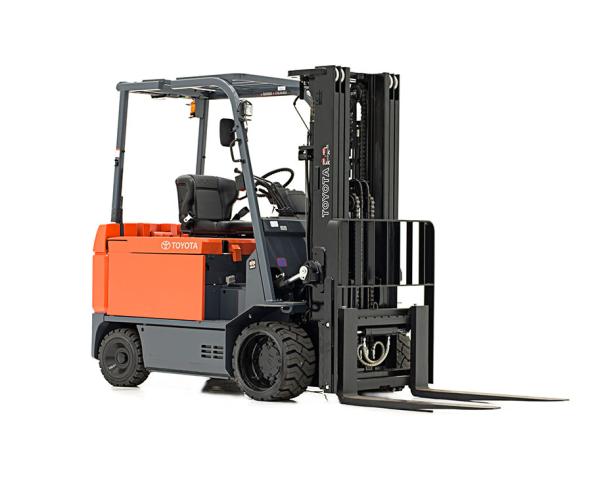

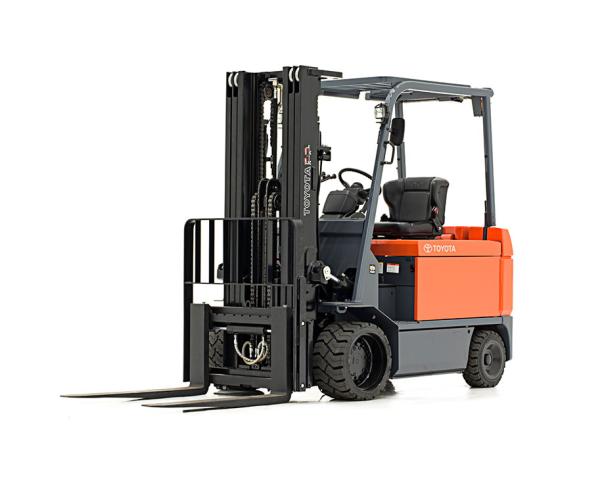

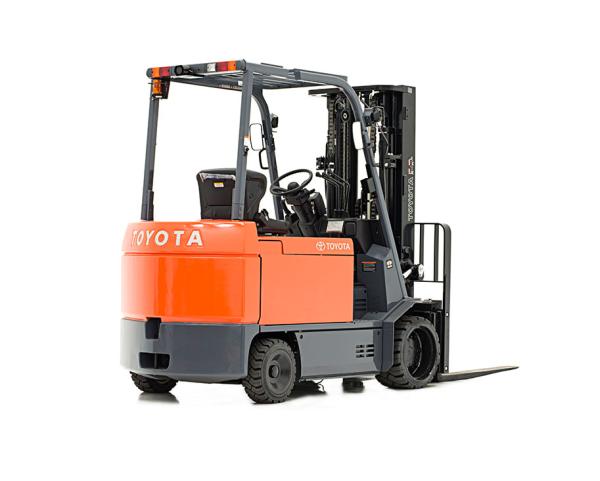

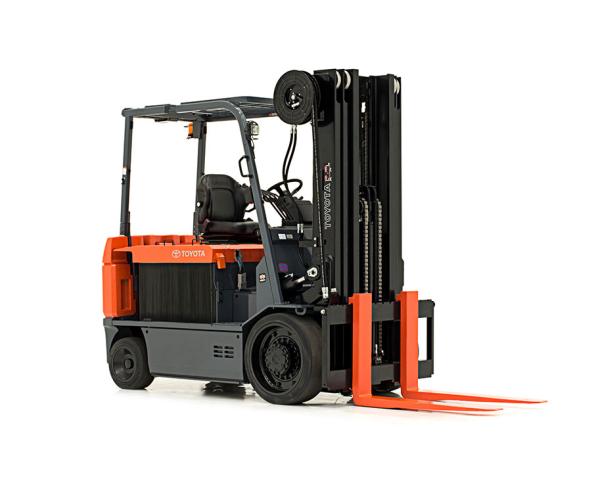

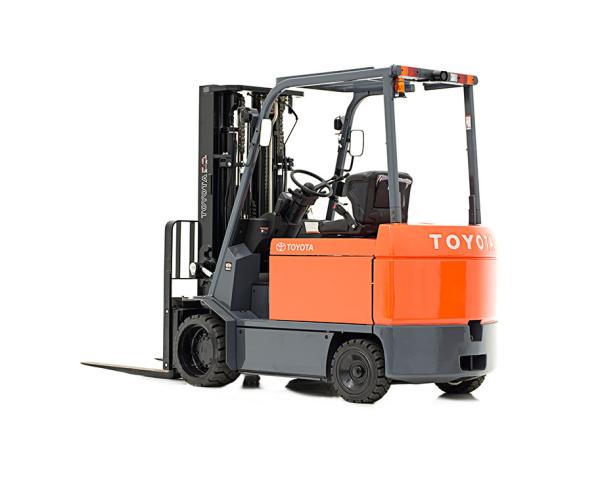

Toyota Large Electric Forklift (8,000-12,000 LBS)
| Make | Toyota |
| Model | Large Electric (8,000-12,000 LBS) |
| Type | Electric Forklifts |
How can we help?
Description
Overview

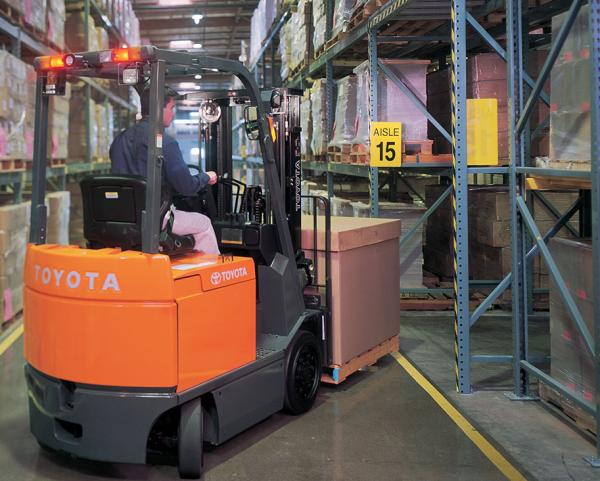

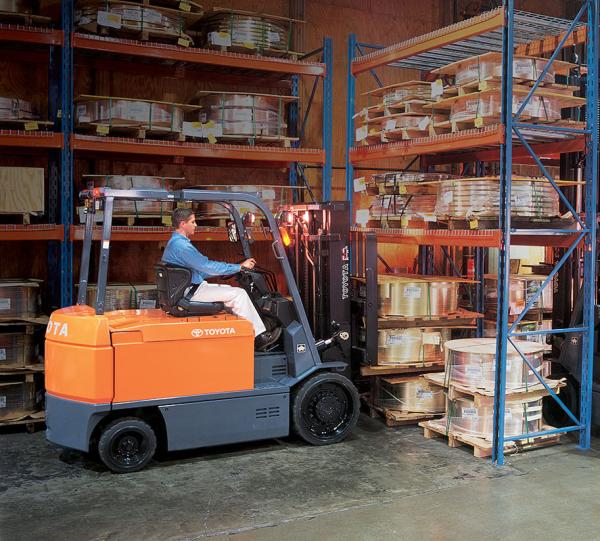

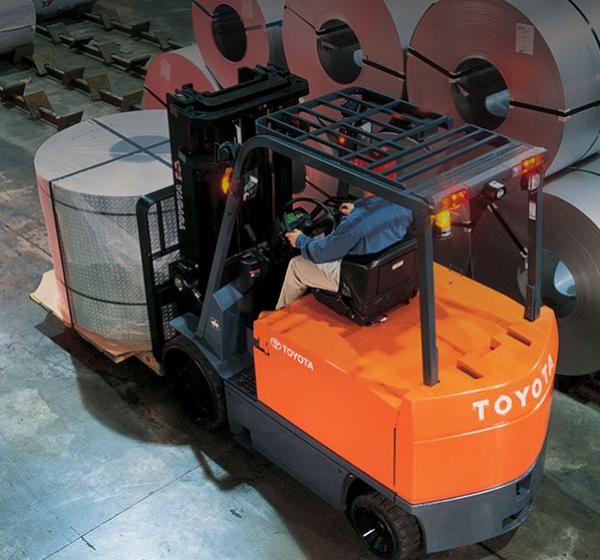

Toyota’s Large Electric Forklift gets the job done, quietly and reliably. With 12,000 pounds of lifting power, its a zero-emissions ride that is perfect for your toughest warehousing challenges, even in the food and beverage industries. It speaks softly and carries a big lift.
Continued Performance
According to recent studies by Peerless Research Group, more and more forklift owners plan to keep their forklifts for 10+ years! Just like a car, truck or another motorized asset, periodic maintenance, service and upkeep is required, even under normal operating conditions, to keep your Toyota Large Electric Forklift operating to peak performance. It is not uncommon for Toyota forklift owners to well exceed 10 years of use, as long as the forklift is properly maintained. Paired with a Planned Maintenance (PM) Plan, the Large Electric Forklift can be an asset for your company for years to come.
Models
Large Electric Forklift
| Model Number | Load Capacity* (lbs.) | Max. Travel Speed Full Load (MPH) | Max. Lift Speed Full Load (FPM) | Max. Gradeability Full Load (%) | Basic Right Angle Stack** (IN.) |
|---|---|---|---|---|---|
| 7FBCU35 | 8,000 | 8.4 (36V), 10.9 (48V) | 51.2 (36V), 72.9 (48 V) | 16 (36V), 22 (48V) | 102.6 |
| 7FBCU45 | 10,000 | 7.8 (36V), 10.9 (48V) | 43 (36V), 57 (48V) | 13 (36V), 18 (48V) | 106.7 |
| 7FBCU55 | 12,000 | 7.5 (36V), 9.3 (48V) | 37 (36V), 53 (48V) | 14 (36V), 20 (48V) | 116.9 |
Specifications
- Electrical System: 36 / 48 V Electrical System
- Length to Forkface: 98.8 - 113 in
- Load Capacity: 8,000 - 12,000 lb. Load Capacity
- Overall Width: 47.6 - 53.1 in
- Overhead Guard Height: 90 - 93.3 in
- Travel Speed Full Load: 7.5 - 10.9 mph Travel Speed Full Load
Features
- Electric directional shift control
- System of Active Stability
- AC drive motor (no brushes or commutator)
- Electric Horn
- System of Active Stability (SAS)
- Planned Maintenance Indicator
- Emissions: 0
- Two-spoke steering wheel
- AC Drive System
- Built-In analyzer
- Easy Access Controller
- Strategically configured instrument display
- Dual operator assist grips
- Easy access no-tools floorboard
- Electrical System: 36/48 V

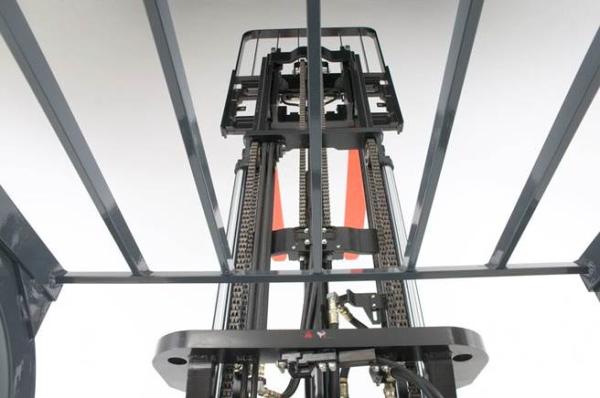

- Bolt-On Overhead Guard
- Double-Action Parking Brake
- Hydrostatic Power Steering
- Battery compartment hood assist dampers
- Digital multifunction display
- Up to 12,000 lb. Lifting Capacity
- Up to 20‘ Lift heights
- Three forms of energy regeneration
- Cowl-mounted hydraulic controls
- Punched plate entry/exit step
- MPH Travel Speed: 10.9
- Key Lowering Interlock
- Navigation in 12.5-13.5 foot aisles
- UL Approved Model Type E
- Memory tilt steering column
- Easy access hydraulic motor
- Self-diagnostics
- Electric Hydraulic Power Steering
- AC drive system (MOSFET Transistor)
- Auto Shut-Off
- Operator Presence Sensing System (OPSS)
