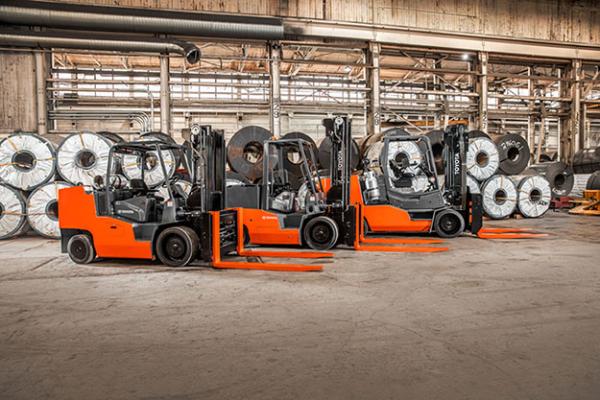

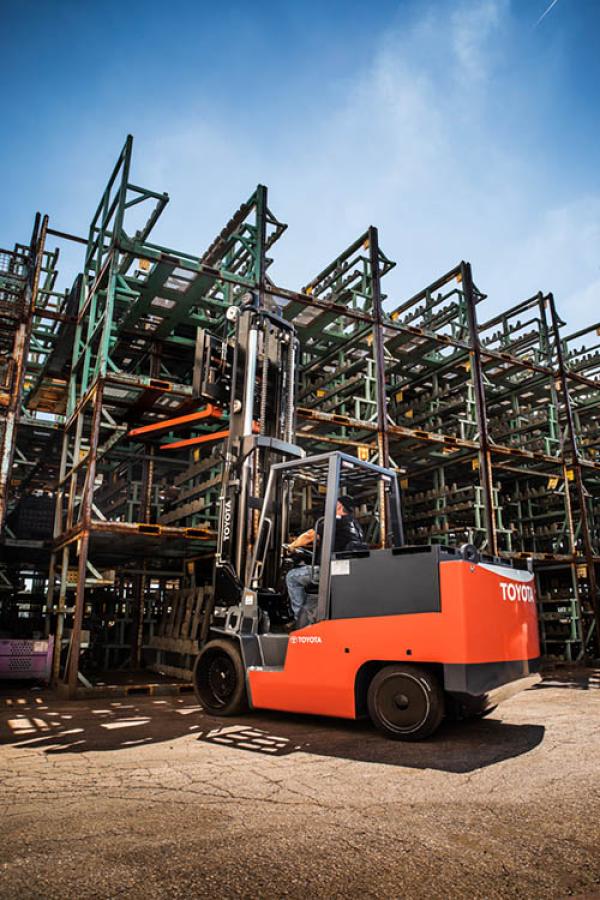

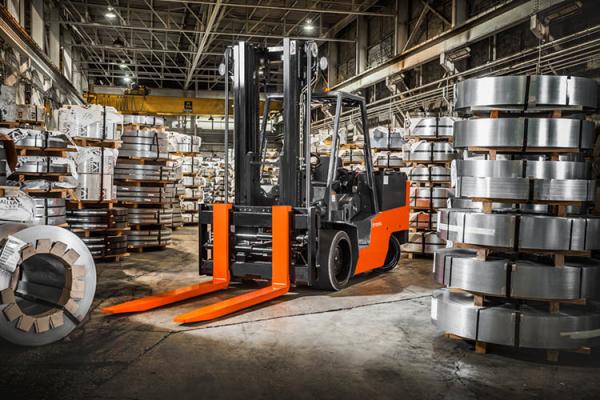

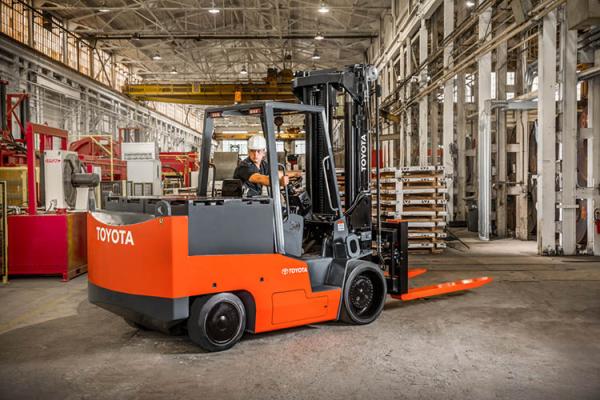

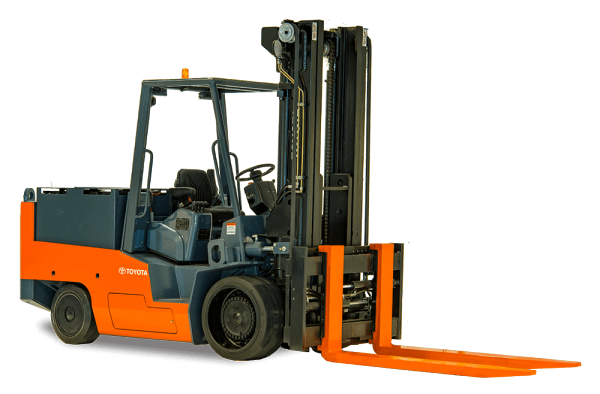

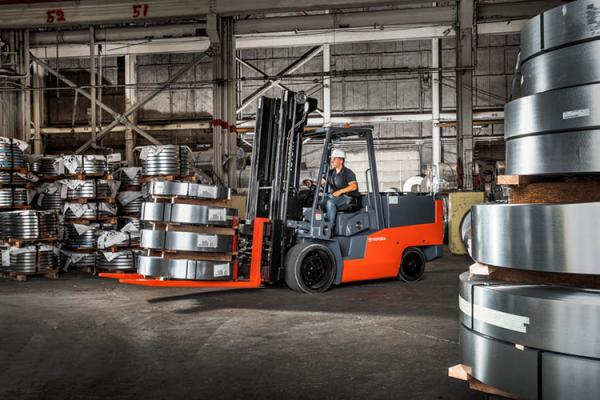

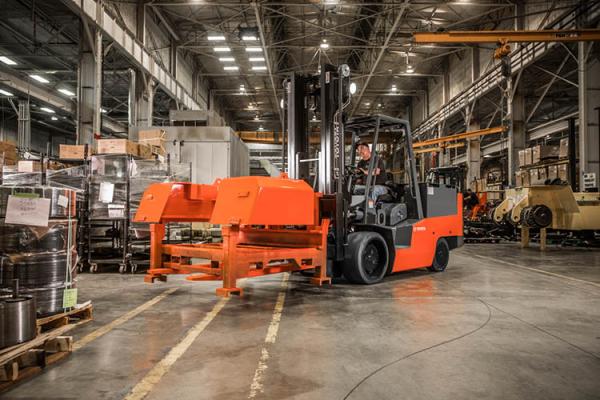

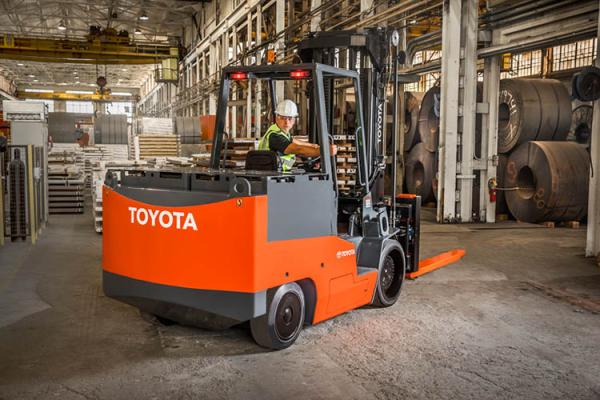

Toyota High-Capacity Electric Cushion (15,000-40,000 LBS)
| Make | Toyota |
| Model | High-Capacity Electric Cushion (15,000-40,000 LBS) |
| Type | High Capacity Forklifts: Cushion |
How can we help?
Description
Overview

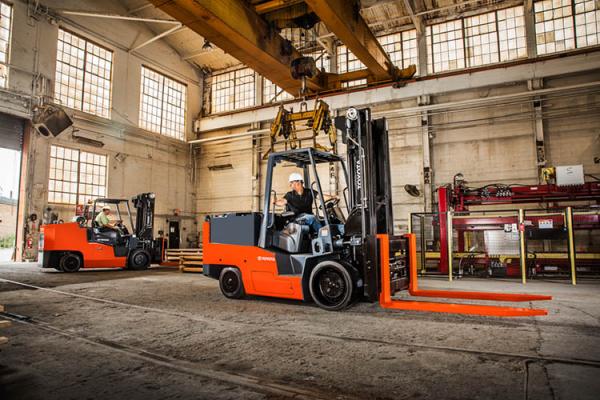

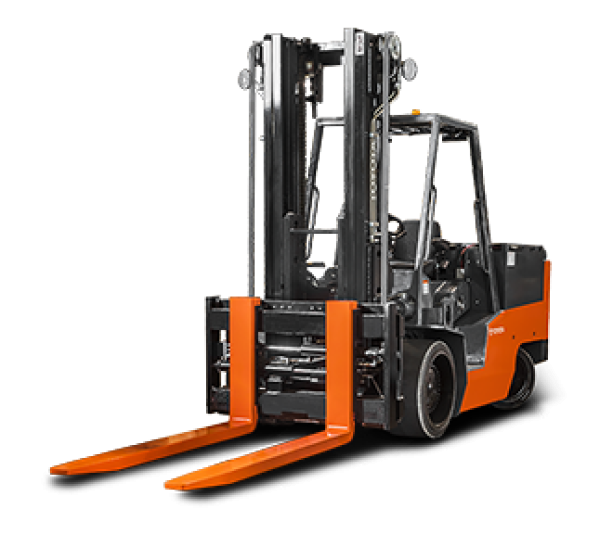

The Toyota High-Capacity Electric Cushion Forklift gives you the versatility to lift massive loads without the need of traditional IC engines. The versatile electric power and high visibility combined with a large 92-inch wheelbase means you’ll have the power you want and the maneuverability you need for your heaviest indoor duties.
Technological Advancement on Display
Every forklift in the Toyota THD line comes equipped with a MD4 7” Touchscreen Display. It combines the rugged power of the THD model lineup with the latest advancements in forklift technology to put ultimate customization, advanced diagnostics, and pertinent forklift information right at your fingertips.
Continued Performance
More forklift owners are seeking out equipment that will help them keep lifting for years in the future. Toyota offers some of the top-manufactured equipment on the market, and the High-Capacity Electric Cushion forklift is one of our most dependable heavy application models. To keep this and all of your other Toyota manufactured equipment running long into the future, consider a Planned Maintenance (PM) plan, where trained Toyota technicians will use only Toyota Genuine Parts to keep your rig lifting and moving.
Models
High-Capacity Electric Cushion Forklift
| Model Number | Load Capacity* (lbs.) | Max. Travel Speed Full Load (MPH) | Max. Lift Speed Full Load (FPM) | Max. Gradeability Full Load (%) | Basic Right Angle Stack** (IN.) |
|---|---|---|---|---|---|
| THDE1500-24 | 15,000 | 5.2 | 39.5 | 15 | 134 |
| THDE1800-24 | 18,000 | 5 | 39.5 | 22.5 | 139.2 |
| THDE2000-24 | 20,000 | 4.7 | 34.5 | 19.9 | 140 |
| THDE2200-24 | 22,000 | 4.6 | 34.5 | 18.7 | 140 |
| THDE3000-24 | 30,000 | 4.1 | 24 | 13.1 | 153.8 |
| THDE3000-30 | 30,000 | 4.1 | 24 | 12.5 | 156.35 |
| THDE3500-24 | 35,000 | 4 | 24 | 12 | 156.3 |
| THDE3500-30 | 35,000 | 3.9 | 16 | 10.8 | 173.5 |
| THDE4000-24 | 40,000 | 3.7 | 16 | 10.6 | 173.5 |
| THDE4000-30 | 40,000 | 3.7 | 16 | 9.9 | 173.5 |
Specifications
- Length to Forkface: 125.93 - 155.59
- Load Capacity: 15,000 - 40,000 lb. Load Capacity
- Model Types Available: 10 Model Types Available
- Overall Width: 62.99 - 72.44 in
- Overhead Guard Height: 93.57 - 102.56 in
- Travel Speed Full Load: 3.7 - 5.2 mph Travel Speed Full Load
Features
- Brakes serviceable without removing entire drive axle
- AC Drive and Pump Motors
- 42.5 HP Drive Motor
- Drum-Type Brake System
- Hydraulic Multi-Gauge for convenient fluid checks
- Finger-tip hydraulic controls
- Cab Meets ANSI Requirements
- Transistor Control Monitors
- HP Drive Motor: 42.5
- Readily accessible lubrication points
- Tilt steering column
- Left-hand shift lever
- Two-coat powder rust-inhibiting polyurethane paint
- Easily accessible drive motor
- Loaded Center of 24“ or 30“
- 72/80-Volt Configurations
- 2 ¾ turn lock-to-lock steering wheel
- Emergency Stop
- Volt Battery: 72 | 80
- Safety Valves in Cylinder Bases
- Load sensing hydraulic system for optimal performance
- Overhead Guard Improves Operator Protection and Promotes Visibility
- EMISSIONS: 0
- Easy seal replacement on chrome-plated rod cylinders
- Heavy Duty Planetary Drive Axle
- Low-height, non-skid steps
