High Capacity Forklifts: Pneumatic

RELIABILITY | • By focusing on enhancing reliability and reducing downtime, the XF Series is able to increase productivity for the end-users. • The patented plated-fin aluminum radiator is used to increase cooling and improved the forklift’s capability in harsh, hot environments. • Dampening pads are placed where the chassis meets the steering axle, engine, torque converter, and overhead guard. • The suspension seat also comes standard. This is all included in the design to reduce the amount of vibration to the operator and increase operator comfort. • The chassis, mast, and front/rear axle are designed to be strong. These components are also made with durable components. This is all done to increase the safety and reliability of the truck when for use in high strength applications. • The controllers, relays, and safety fuses are all placed in the dust and water-free controller box. The main electronic components are also waterproof. This allows the operator to use the forklift in wet environments. • The new stamped air cleaner, with a double seal safety filter, is durable, corrosion-free, and vibration-resistant. This provides better filtration efficiency and lowers intake resistance. • The brake and steering hydraulic systems are separated to prevent interference between each other and increase reliability. • The battery is located above the fuel tank in a battery box. An adiabatic plate is placed between the box and the fuel tank to prolong the battery’s working life. • The gearbox oil is fed through a return oil filter and multi-valve to improve the cleanliness of the hydraulic oil and improve the systems working life.

OPERATOR COMFORT | • While developing the 17,500-22,000lb XF Series, comfort and ease of operation were carefully considered. The engineers decreased vibration levels by using a compound engine damper and full floating seat and cabin. The forklift was made more comfortable because a comfortable operator leads to increased operational productivity. • The foot space is now 30% wider to significantly reduce operator fatigue. The new wide, non-slip step makes getting in and out of the forklift safe and easy. • The easy-to-operate levers provide total load handling operation. The armrest is provided to reduce fatigue. The optional electro-hydraulic proportional control system gives the forklift the ability to make load handling more sensitive and precise. • The mast was redesigned to provide broad forward visibility. This was done by relocating the hydraulic pipes of the fork positioner to the outside of the mast.

COMFORTABLE OPERATION | • The new relocated, easy-to-see LCD instrument display lets the operator check on all aspects of operational status with a glance. • The new automobile-style light/turn-signal stalk and the forward-reverse lever are ergonomically designed and arranged to improve comfort and productivity. • Only 90N of force is required to engage the parking brake. • The small-diameter steering wheel, with tilt adjustment, provides an optimal driving position for the operator. The superior responsiveness of the steering wheel optimizes maneuverability even in narrow spaces. • The automobile-style suspended pedals provide a more ergonomic, operator-centered experience.

SAFETY | • A wide range of technology is applied to ensure absolute safety for both the operator and those in the vicinity. • There’s an energy accumulator in the braking system. This allows for the brakes to continue to function after the engine is shut off. • There is a locking mechanism found on the engine hood, damper, and parking brake for the operator’s safety. • The Operator Presence Sensing System incorporates a lifting, tilting, and traveling stop function. When the operator leaves the seat, the system automatically locks the lifting/tilting functions and disables the forklift from traveling to ensure safety. • The throttling device locks the mast in place if there is a hydraulic failure. This adds to the operational safety of the truck.

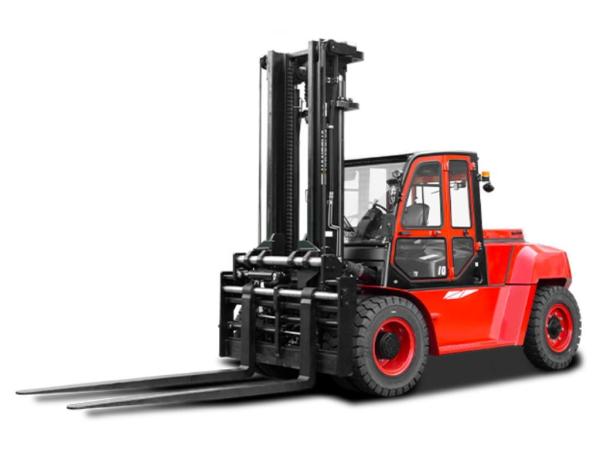

HANGCHA High Capacity Forklift (26,000-36,000 LBS)

COMFORT | The ergonomic integral joystick enables accurate control of the forklift. The optimized hydraulic braking system enables smooth, easy-to-control, braking. The suspension seat and adjustable armrest allow for the operator to find their ideal driving position. Together all of these features create a more comfortable operating experience for the operator.

SAFETY | Great visibility reduces hidden safety hazards caused by blind corners while the forklift is being operated. The spindle and hydraulic self-locking mechanisms are used to connect the cab to the vehicle frame. When the electric or manual hydraulic pump is started, the hydraulic lock is automatically opened and at the same time, the hydraulic cylinder at the bottom of the cab sticks out so that the cab is tilted sideways over the center of gravity, improving the dimension. The optional front and rearview camera systems (with optional memory), improve visibility and increase operational safety.

DRIVE AXLE | The forklift features a heavy-duty drive axle, two-speed deceleration, wet brakes, and hydraulic release spring action parking brake for safe and reliable operation.

HIGH PERFORMANCE | The X Series Pneumatic Forklift was designed with performance in mind. The forklift features a newly designed cab, wet disc brake drive axle, hydraulic adjustable forks, LCD instrument display, highly efficient LED lights, a snail horn, and reverse radar as a part of the standard configuration. With these features, performance is improved and the average operational efficiency increases by over 10%.
