Toyota Core IC Cushion (3,000-6,500 LBS)
| Make | Toyota |
| Model | Core IC Cushion (3,000-6,500 LBS) |
| Type | Internal Combustion: Cushion |
How can we help?
Description
Overview

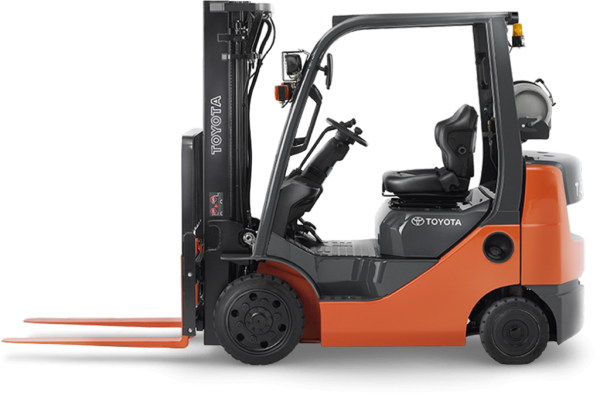

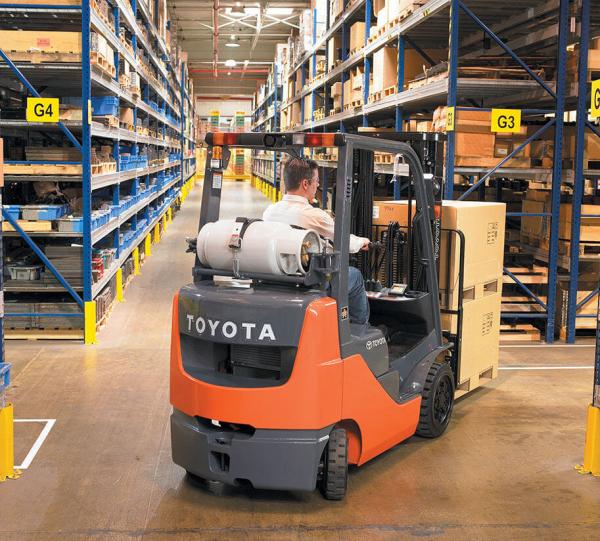

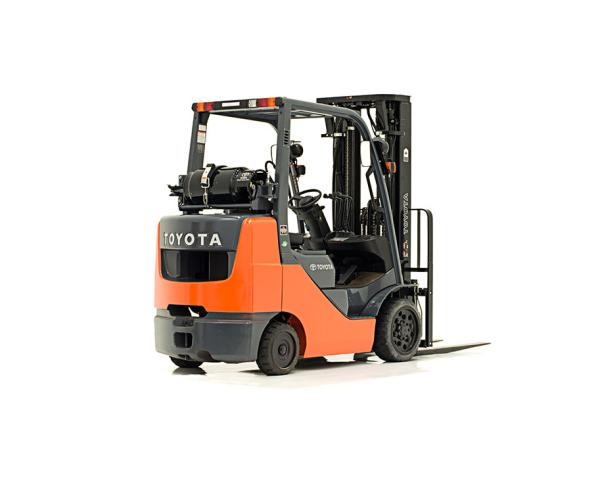

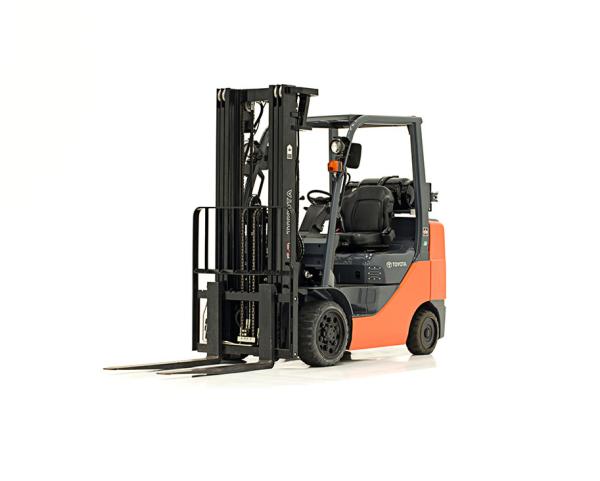

Toyota’s Core IC Cushion Forklift is one of the most popular forklifts in North America. Warehousing and distribution applications, the auto industry, general manufacturing plants and retail storefronts often utilize Toyota’s Core IC Cushion for its extreme versatility. Powerful enough to lift up to 6,500 lbs. yet capable of navigating in 12 foot aisles, the Core IC Cushion forklift is a trusted multipurpose forklift. Model numbers: 8FGCU15-32 | 8FGCSU20
Heart of the Line
The top selling Core IC Cushion Forklift is an industry-leading, multi-use forklift that comes with legendary Toyota reliability, starting with the world-renowned 4Y engine. Toyota’s innovative System of Active Stability comes standard on all Core IC Cushion models to help protect both product and people.
Continued Performance
According to recent studies by Peerless Research Group, more and more forklift owners plan to keep their forklifts for 10+ years! Just like a car, truck or other motorized asset, periodic maintenance, service and upkeep is required, even under normal operating conditions, to keep your Toyota Core IC Cushion Forklift operating to peak performance. It is not uncommon for Toyota forklift owners to well exceed 10 years of use, as long as the forklift is properly maintained. Paired with a Planned Maintenance (PM) Plan, the Toyota Core IC Cushion Forklift can be an asset for your company for years to come.
Models
Core IC Cushion Forklift
| Model Number | Load Capacity* (lbs.) | Max. Travel Speed Full Load (MPH) | Max. Lift Speed Full Load (FPM) | Max. Gradeability Full Load (%) | Basic Right Angle Stack** (IN.) |
|---|---|---|---|---|---|
| 8FGCU15 | 3,000 | 10.9 | 110 | 43 | 83.5 |
| 8FGCU18 | 3,500 | 10.9 | 110 | 40 | 86 |
| 8FGCSU20 | 4,000 | 10.9 | 110 | 35 | 87.6 |
| 8FGCU20 | 4000 | 10.6 | 120 | 36 | 92.3 |
| 8FGCU25 | 5000 | 10.6 | 120 | 31 | 94.3 |
| 8FGCU30 | 6000 | 10.6 | 98 | 25 | 97.5 |
| 8FGCU32 | 6500 | 10.6 | 98 | 25 | 98.8 |
Specifications
- Fuel Type: Gas / LPG / Dual Fuel Fuel Type
- Length to forkface: 82.3 - 98.6 in
- Load Capacity: 3,000 - 6,500 lb. Load Capacity
- Overall Width: 37.2 - 43.7 in
- Overhead Guard Height: 80.1 - 80.7 in
- Travel Speed Full Load: 10.9 MPH Travel Speed Full Load
Features
- Fully-stamped steel side panels
- Heavy-duty non-slip rubber floor mat
- Load Sensing Hydrostatic Steering
- Externally-mounted hydraulic oil return filter
- Easy-access no-tools floorboard
- Low, wide-entry steps
- Fully-sealed air-intake system
- SYSTEM OF ACTIVE STABILITY (SAS)
- Easy-lift engine hood
- Over 23‘ lift height
- Air cleaner discharge valve
- LED headlights
- 12‘ dual operator assist grips
- KEY-LOWERING INTERLOCK
- Dash-mounted brake fluid level check
- Exclusive QR code diagnostics
- BOLT-ON OVERHEAD GUARD
- Navigation in 11‘ - 12‘ aisles
- Independent brake & inching pedals
- HORSEPOWER: 51
- LCD multi-function display
- SELLING IC CUSHION FORKLIFT: #1
- 4-Way adjustable vinyl full-suspension seat
- MPH TRAVEL SPEED: 10.9
- Engine hood assist damper with lock device
- Dash-mounted instrument display
- 11.8‘ diameter two-spoke steering wheel
- Up to 6,500 lb lift capacity
- NEUTRAL ENGINE START SAFETY SWITCH
- OPERATOR PRESENCE SENSING SYSTEM (OPSS)
- Toyota 136 cu. in., 4-cylinder engine (4Y-ECS)
- Large-capacity engine cooling fan
