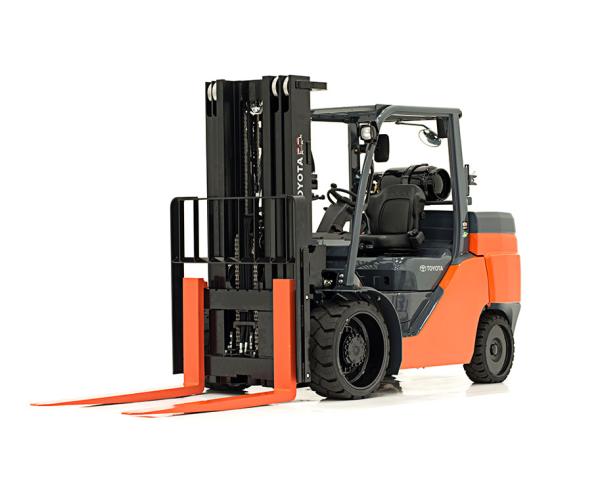

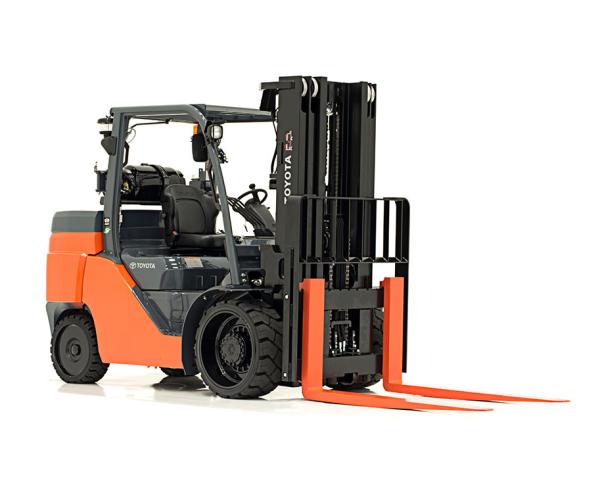

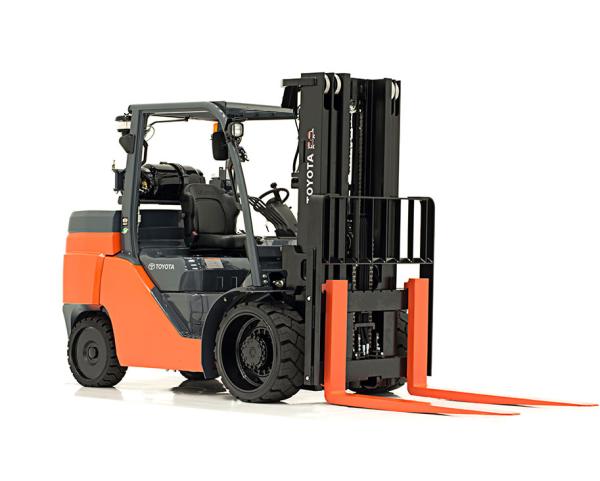

Toyota Large IC Cushion (8,000-15,500 LBS)
| Make | Toyota |
| Model | Large IC Cushion (8,000-15,500 LBS) |
| Type | Internal Combustion: Cushion |
How can we help?
Description
Overview

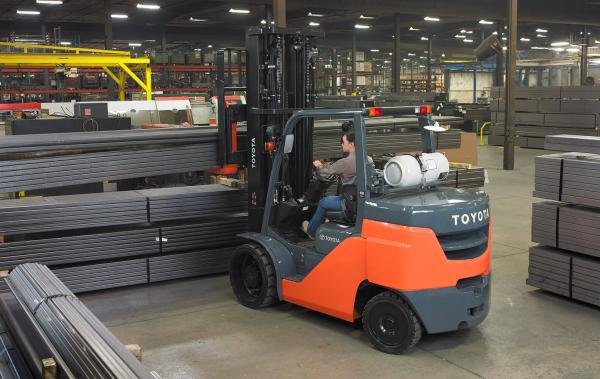

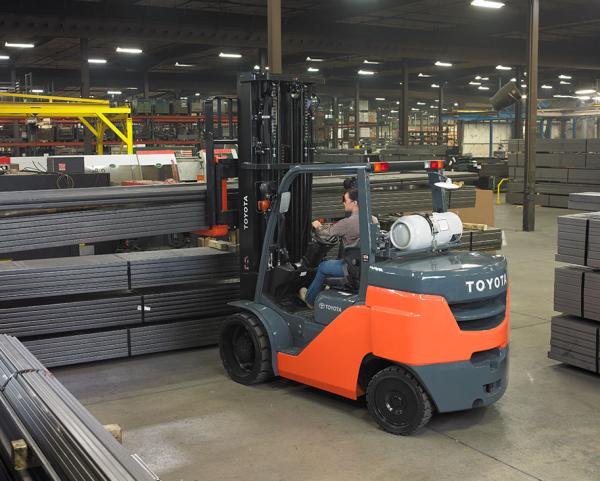

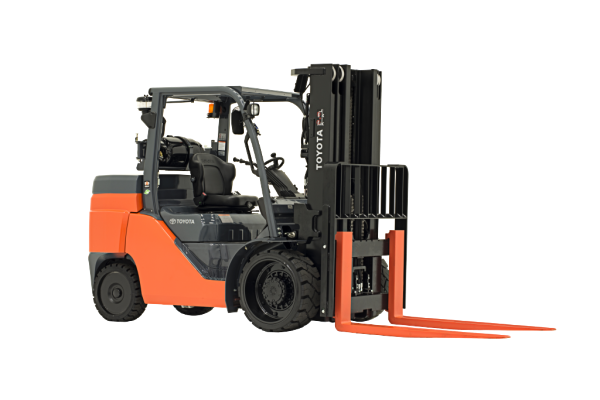

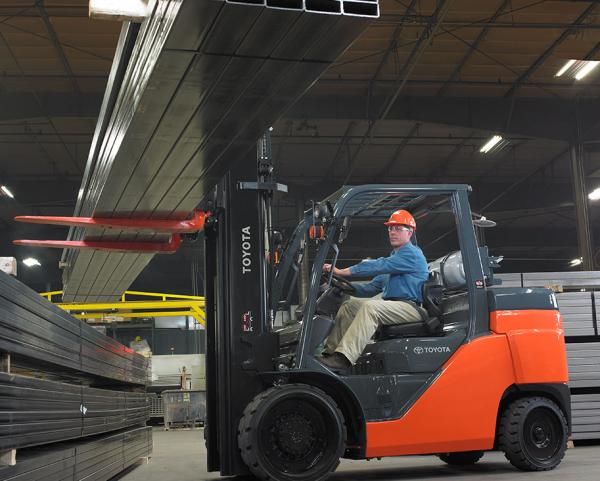

Toyota’s Large IC Cushion forklift is a durable, high lift capacity forklift used primarily indoors and in specialty applications such as retail, lumber yards, heavy-duty manufacturing, shipping and freight, and various warehouse applications. The Large IC Cushion can be outfitted as the Box Car Special or the Paper Roll Special forklift models. Model numbers: 8FGC35-70U.

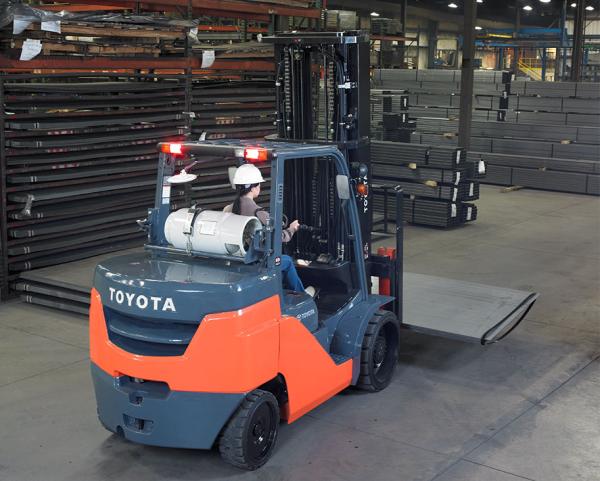

Changing LPG Tanks

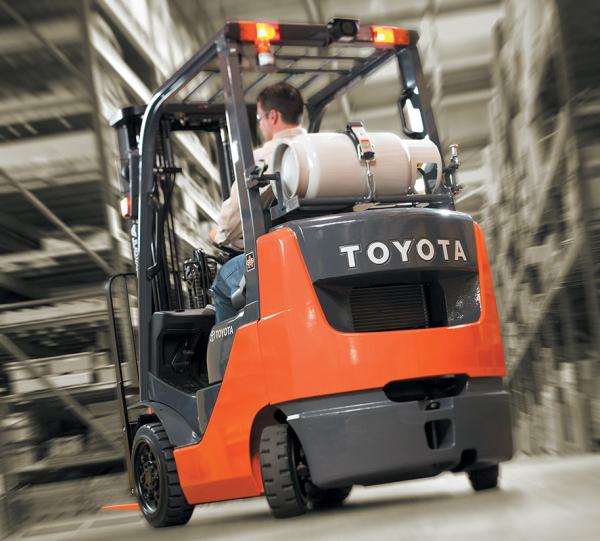

Liquid propane gas (LPG) is a flammable and explosive gas. Changing a forklift LPG tank requires proper instruction. Click to learn eight tips for responsibly changing the LPG tank on your IC forklift.
Models
Large IC Cushion Forklift
| Model Number | Load Capacity* (lbs.) | Max. Travel Speed Full Load (MPH) | Max. Lift Speed Full Load (FPM) | Max. Gradeability Full Load (%) | Basic Right Angle Stack** (IN.) |
|---|---|---|---|---|---|
| 8FGC35U | 8,000 | 11.8 | 100 | 47 | 107.5 |
| 8FGC45U | 10,000 | 11.8 | 98 | 37 | 112 |
| 8FGC55U | 12,000 | 13 | 91 | 34 | 118 |
| 8FGC60U | 13,500 | 13 | 81 | 31 | 123 |
| 8FGC70U | 15,500 | 13 | 81 | 28 | 123 |
Specifications
- Fuel Type: Gas / LPG Fuel Type
- Length to forkface: 103 - 118.1 in
- Load Capacity: 8,000 - 15,500 lb. Load Capacity
- Overall Width: 50 - 57.1 in
- Overhead Guard Height: 83.5 - 86 in
- Travel Speed Full Load: 11.8 - 13 mph Travel Speed Full Load
Features
- Easy lift engine hood with wide 75 degree opening
- LOAD BACKREST
- ELECTRIC HORN
- Engine hood assist damper with lock device
- Up to 15,500 lbs. lift capacity

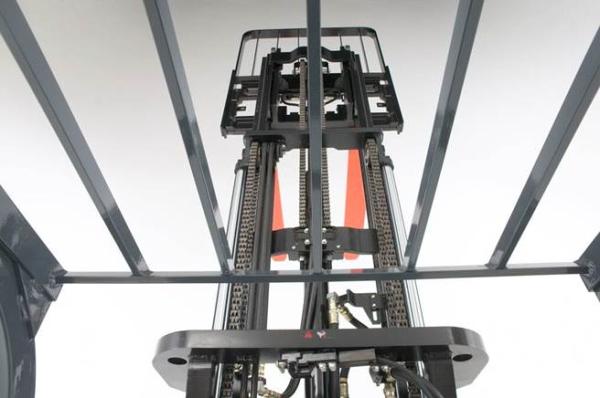

- BOLT-ON OVERHEAD GUARD
- Fully-Sealed Air Intake
- KEY LOWERING INTERLOCK
- Controller Area Network (CAN-bus) communication
- Engine protection system
- Nearly 20‘ lift height
- Fork Leveling: Automatic
- Dash mounted instrument display
- SYSTEM OF ACTIVE STABILITY (SAS)
- Easy access no-tools floorboard
- Low, wide entry steps
- Load sensing power steering

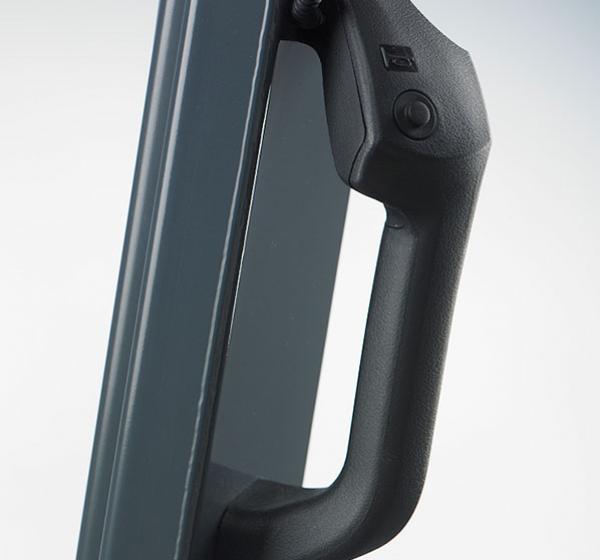

- DUAL OPERATOR ASSIST GRIPS
- 11.8‘ diameter two-spoke steering wheel
- LED headlights
- LCD multi-function display
- SYSTEM OF ACTIVE STABILITY
- Easy access to common service items such as filters & dipsticks
- Travel Speed: 13 mph
- OPERATOR RESTRAINT SEAT
- 12‘ long dual operator assist grips
- NEUTRAL START SAFETY SWITCH
- 4-Way adjustable vinyl full-suspension seat
- Navigation in 13-14‘ aisle widths
- Horsepower: 84
- OPERATOR PRESENCE SENSING SYSTEM (OPSS)
- Exclusive QR code diagnostics
- Integrated monitoring system
- Adjustable headlights with guards
- Dash integrated amenity tray and oversized cup holder
- Air Cleaner discharge valve
- Moisture resistant electric connectors
