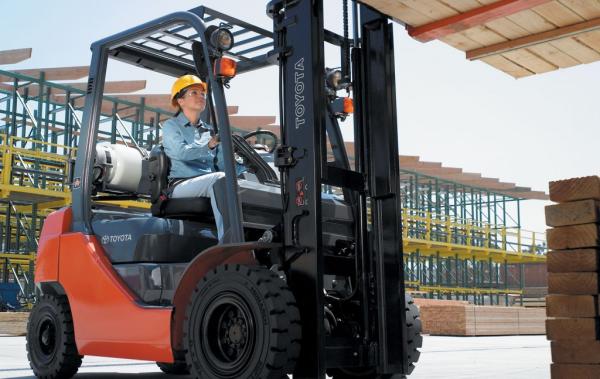

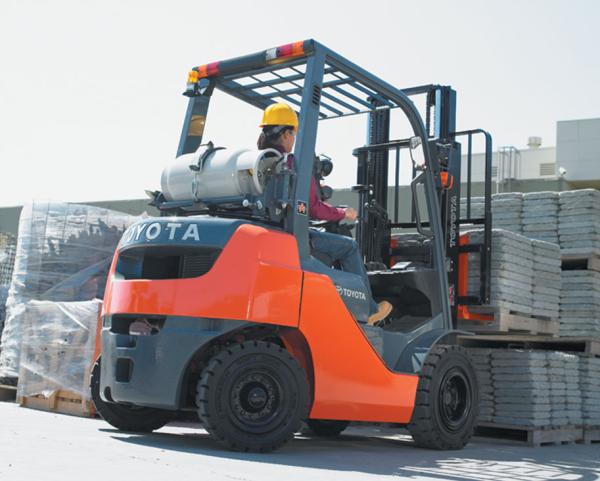

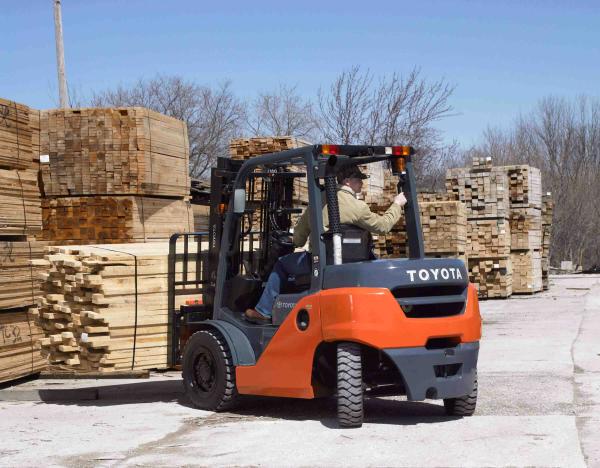

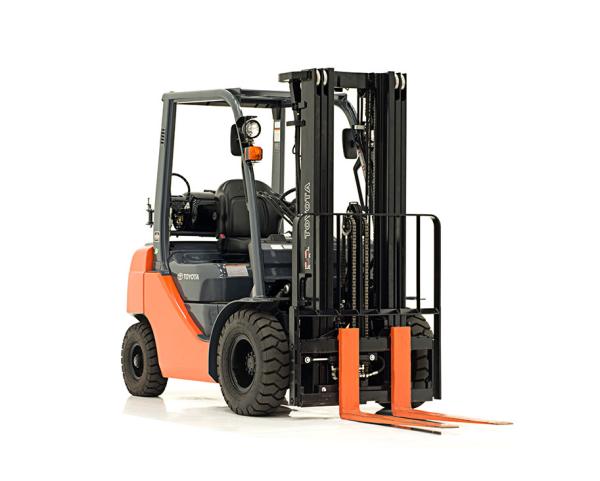

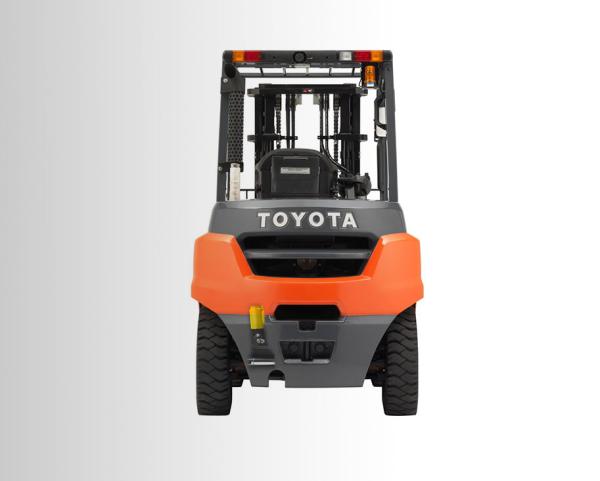

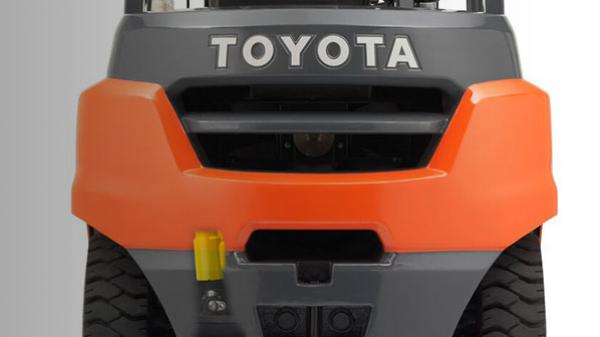

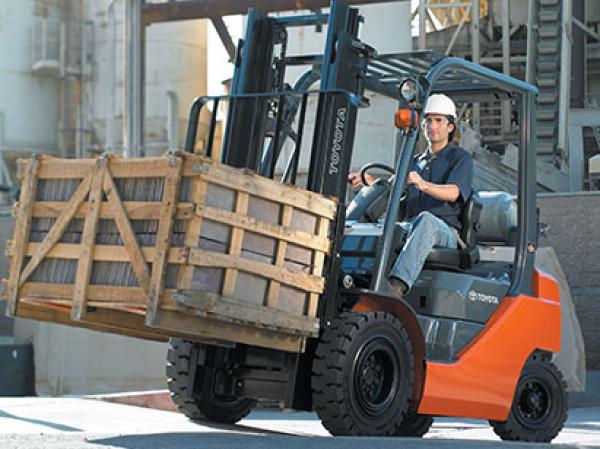

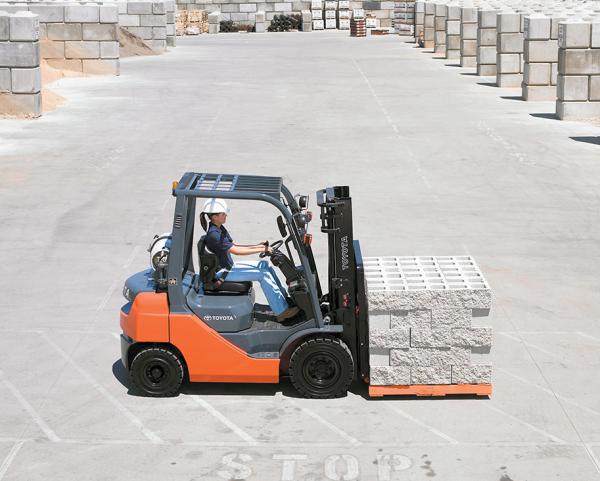

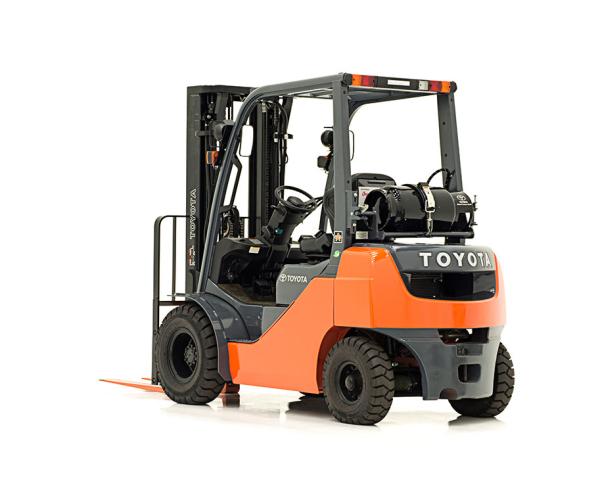

Toyota Core IC Pneumatic (3,000-6,500 LBS)
| Make | Toyota |
| Model | Core IC Pneumatic (3,000-6,500 LBS) |
| Type | Internal Combustion: Pneumatic |
How can we help?
Description
Continued Performance
According to recent studies by Peerless Research Group, more and more forklift owners plan to keep their forklifts for 10+ years! Just like a car, truck or other motorized asset, periodic maintenance, service and upkeep is required, even under normal operating conditions, to keep your Toyota Core IC Pneumatic Forklift operating to peak performance. It is not uncommon for Toyota forklift owners to well exceed 10 years of use, as long as the forklift is properly maintained. Paired with a Planned Maintenance (PM) Plan, the Core IC Pneumatic Forklift can be an asset for your company for years to come.
Models
Core IC Pneumatic Forklift
| Model Number | Load Capacity* (lbs.) | Max. Travel Speed Full Load (MPH) | Max. Lift Speed Full Load (FPM) | Max. Gradeability Full Load (%) | Basic Right Angle Stack** (IN.) |
|---|---|---|---|---|---|
| 8FDU15 | 3,000 | 11.8 | 128 | 45 | 91.9 |
| 8FGU15 | 3,000 | 11.5 | 131 | 45 | 92.1 |
| 8FDU18 | 3,500 | 11.8 | 128 | 45 | 93.9 |
| 8FGU18 | 3,500 | 11.5 | 131 | 45 | 93.9 |
| 8FDU20 | 4,000 | 10.3 | 121 | 39 | 103.2 |
| 8FGU20 | 4,000 | 10.9 | 118 | 41 | 103.2 |
| 8FDU25 | 5,000 | 10.3 | 121 | 33 | 105.9 |
| 8FGU25 | 5,000 | 10.9 | 118 | 34 | 105.9 |
| 8FDU30 | 6,000 | 10.3 | 98 | 29 | 111.4 |
| 8FGU30 | 6,000 | 11.2 | 100 | 26 | 111.6 |
| 8FDU32 | 6,500 | 10.3 | 98 | 28 | 112.4 |
| 8FGU32 | 6,500 | 11.2 | 100 | 26 | 112.4 |
Specifications
- Fuel Type: Gas / LP / Dual Fuel Fuel Type
- Length to Forkface: 89.6 - 110.2 in
- Load Capacity: 3,000 - 6,500 lb. Load Capacity
- Overall Width: 42.1 - 48.8 in
- Overhead Guard Height: 81.9 - 85.5 in
- Travel Speed Full Load: 10.3 - 11.8 mph Travel Speed Full Load
Features
- LED headlights
- Dash mounted instrument display
- Technician Programmable Speed Control
- 4-Way adjustable vinyl full-suspension seat
- Exclusive QR code diagnostics
- System of Active Stability (SAS)
- Easy access no-tools floorboard
- Selling IC Pneumatic Forklift: No. 1
- Heavy-duty non-slip rubber floor mat
- Load Sensing Hydrostatic Steering
- Air cleaner discharge valve
- 12‘ long dual operator assist grips
- 11.8‘ diameter two-spoke steering wheel
- Dash mounted brake fluid level check
- EPA/CARB certified gasoline engine
- Engine hood assist damper with lock device
- Fully-stamped steel side panels
- Operator Presence Sensing System (OPSS)
- Neutral Engine Start Safety Switch
- Easy lift engine hood with wide 75 degree opening
- Bolt-On Overhead Guard
- Cowl-mount hydraulic control levers with rubber boot covers
- Externally mounted hydraulic oil return filter
- LCD multi-function display
- Toyota Built Engines: 4Y / 1ZS
- Key Lowering Interlock
- Electric horn
- Horsepower: 51-57
- Integrated monitoring system
- One-way automatic fork leveling
