Toyota Large IC Pneumatic (13,500-17,500 LBS)
| Make | Toyota |
| Model | Large IC Pneumatic (13,500-17,500 LBS) |
| Type | Internal Combustion: Pneumatic |
How can we help?
Description
Overview

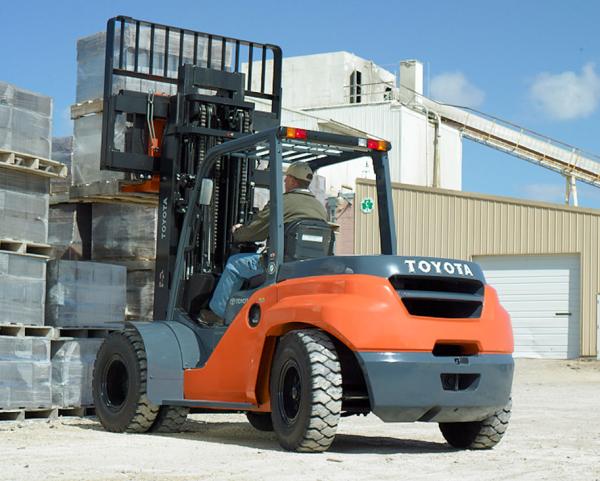

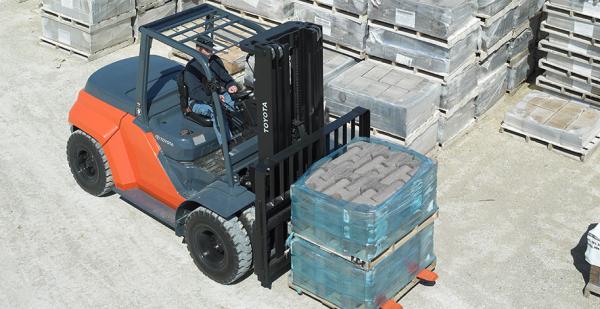

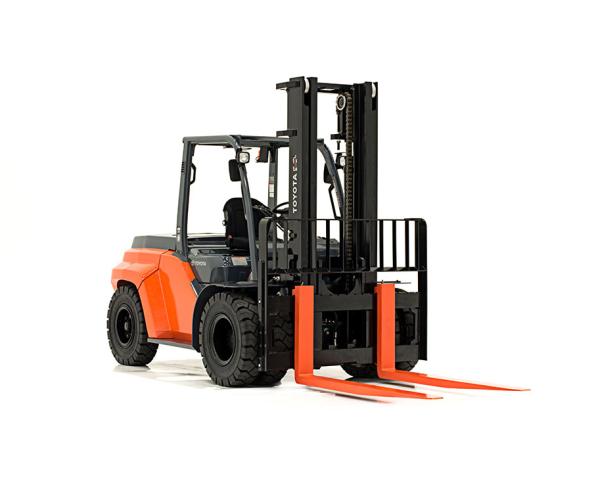

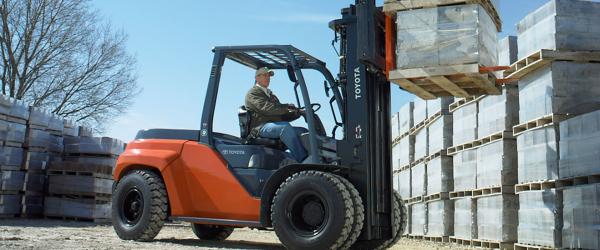

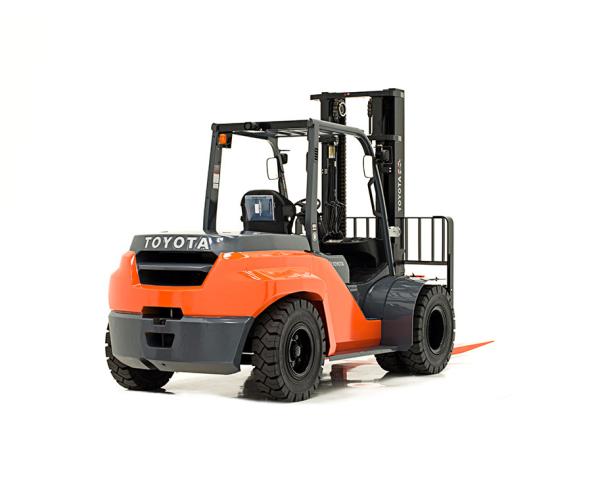

The Toyota Large IC Pneumatic Forklift can lift up to 17,500 lbs. and can easily navigate in gravel, dirt and asphalt. Popular on construction sites as well as in lumber yards, brick and stone distribution centers, specialized warehouses and heavy-duty manufacturing plants, this large heavy-duty forklift is engineered to be extremely durable and efficient in all conditions.
The Toyota Difference
Quality, durability, reliability and overall value are common terms our customers use to describe their Toyota forklift. And, they’re not alone. In fact, Toyota has been ranked number one in these major categories by Peerless Research Group since the inception of their annual survey!
Continued Performance
According to recent studies by Peerless Research Group, more and more forklift owners plan to keep their forklifts for 10+ years! Just like a car, truck or other motorized asset, periodic maintenance, service and upkeep is required, even under normal operating conditions, to keep your Toyota Large IC Pneumatic Forklift operating to peak performance. It is not uncommon for Toyota forklift owners to well exceed 10 years of use, as long as the forklift is properly maintained. Paired with a Planned Maintenance (PM) Plan, the Large IC Pneumatic Forklift can be an asset for your company for years to come.
Models
Large IC Pneumatic Forklift
| Model Number | Load Capacity* (lbs.) | Max. Travel Speed Full Load (MPH) | Max. Lift Speed Full Load (FPM) | Max. Gradeability Full Load (%) | Basic Right Angle Stack** (IN.) |
|---|---|---|---|---|---|
| 8FD60U | 13,500 | 11.8 | 81 | 34 | 150 |
| 8FG60U | 13,500 | 11.8 | 81 | 34 | 150 |
| 8FD70U | 15,500 | 11.8 | 81 | 30 | 152 |
| 8FG70U | 15,500 | 11.8 | 81 | 30 | 152 |
| 8FD80U | 17,500 | 11.8 | 73 | 26 | 154 |
| 8FG80U | 17,500 | 11.8 | 81 | 26 | 154 |
Specifications
- Fuel Type: Gas / LPG / Diesel Fuel Type
- Length to Forkface: 137.4 - 141.3 in
- Load Capacity: 13,500 - 17,500 lb. Load Capacity
- Overall Width: 77.4 in
- Overhead Guard Height: 90.9 in
- Travel Speed Full Load: 11.8 mph Travel Speed Full Load
Features
- 11.8‘ diameter two-spoke steering wheel
- System of Active Stability (SAS)
- Electric Horn
- LED headlights
- Moisture resistant electric connectors
- Low wide-entry steps
- 4-Way adjustable vinyl full-suspension seat
- Easy lift engine hood with wide 75° opening
- Operator Presence Sensing System (OPSS)
- Load-sensing power steering
- Air cleaner discharge valve
- FPM Lifting Speed: 81
- Integrated monitoring system
- Toyota Built Engines: 1FS / 1KD
- Controller Area Network (CAN-bus) communication
- LCD multi-function display
- Dash-mounted instrument display
- Easy access to common service items such as filters & dipsticks
- Dual Drive Tires
- 12‘ dual operator assist grips
- Neutral Start Safety Switch
- Automatic Transmission: 2 Speed
- Engine hood assist damper with lock device
- Exclusive QR code diagnostics
- Easy access no-tools floorboard
- Toyota designed and built engines
- Cowl-mount hydraulic control levers
- Bolt-On Overhead Guard
- Key Lowering Interlock
