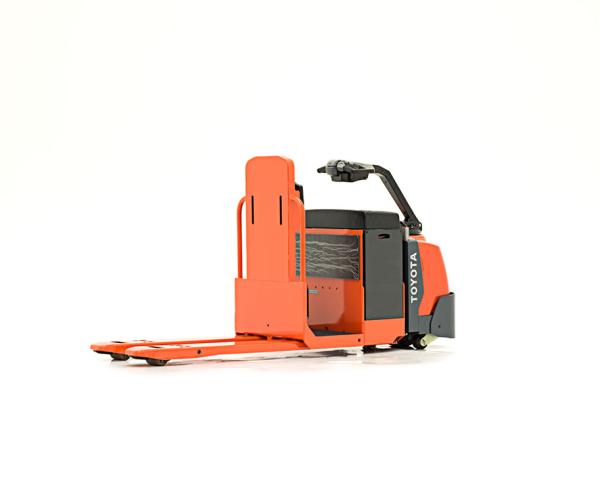

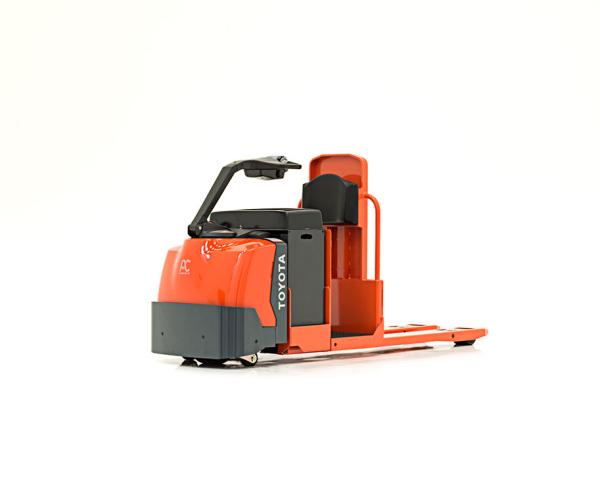

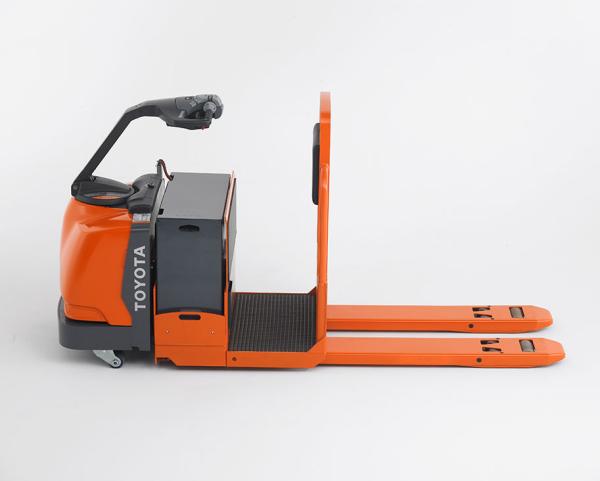

Toyota Center-Controlled Rider Pallet Jack (6,000-8,000 LBS)
| Make | Toyota |
| Model | Center-Controlled Rider Pallet Jack (6,000-8,000 LBS) |
| Type | Pallet Jacks and Stackers |
How can we help?
Description
Overview

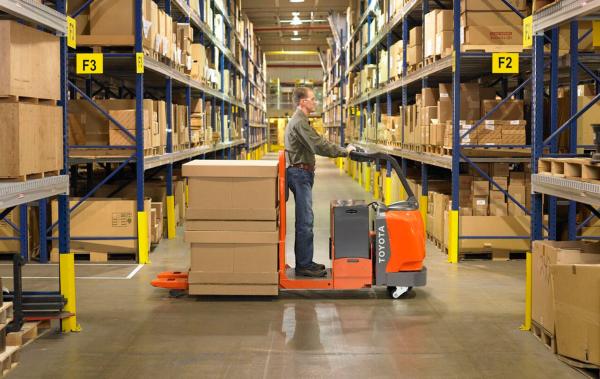

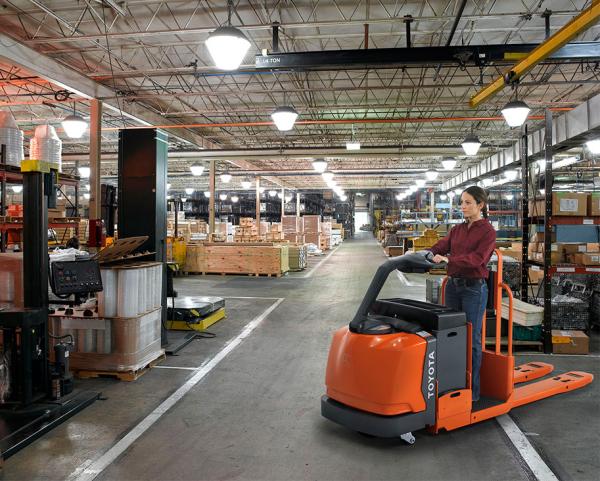

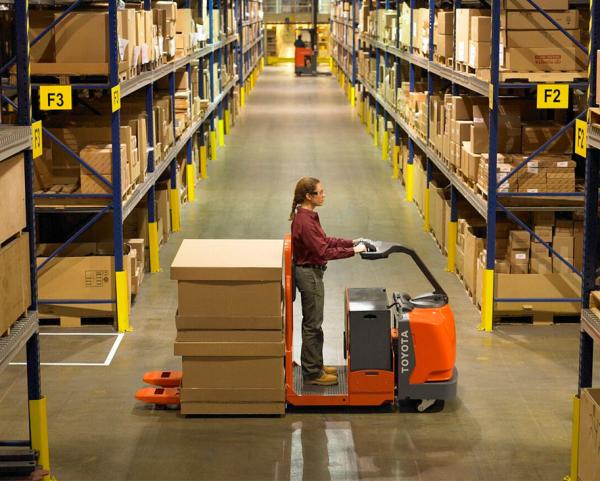

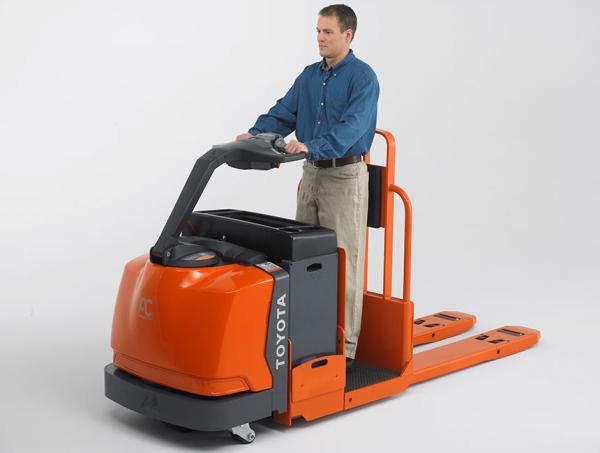

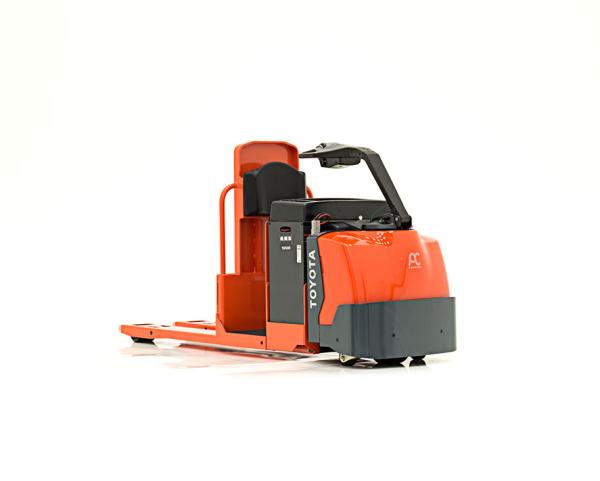

The Toyota Center-Controlled Rider Pallet Jack is easy to maneuver and quick to respond to commands. The motorized pallet jack, ideal for longer runs, provides a comfortable operator compartment. Doubling as a ground-level order picker, the Center-Controlled Rider Pallet Jack is an asset to any warehouse or distribution center.
Models
Center-Controlled Rider Pallet Jack
| Model Number | Load Capacity* (lbs.) | Max. Travel Speed Full Load (MPH) | Max. Lift Speed Full Load (FPM) | Max. Gradeability Full Load (%) | Basic Right Angle Stack** (IN.) |
|---|---|---|---|---|---|
| 8HBC30 | 6,000 | 6.2 | N/A | 10 | 98.8 |
| 8HBC40 | 8,000 | 6.2 | N/A | 10 | 142 |
Continued Performance
According to recent studies by Peerless Research Group, more and more forklift owners plan to keep their forklifts for 10+ years! Just like a car, truck or other motorized asset, periodic maintenance, service and upkeep is required, even under normal operating conditions, to keep your Toyota Center-Controlled Rider Pallet Jack operating to peak performance. It is not uncommon for Toyota forklift owners to well exceed 10 years of use, as long as the forklift is properly maintained. Paired with a Planned Maintenance (PM) Plan, the Center-Controlled Rider Pallet Jack can be an asset for your company for years to come.
Specifications
- Height (Extended Handle): 56 in
- Load Capacity: 6,000 - 8,000 lb. Load Capacity
- Overall Length: 90.3 - 155.7 in
- Overall Width: 32.5 in
- Travel Speed Full Load: 6.2 mph Travel Speed Full Load
- Voltage: 24 Voltage
Features
- Comfortable Operator Compartment For Long Days
- Error Indicator with Self-Diagnostics
- Regenerative Braking
- Control Handle With Duel Brake Levers
- Heavy-Duty Spring-Loaded Stabilizing Casters

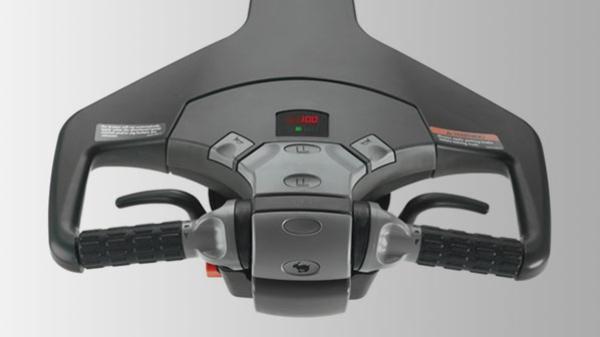

- Multifunction Control Handle with Ergonomically Angled Hand Grips and Wrap-Around Hand Guard
- Programmable Performance
- Up to 8,000 lbs. Carrying Capacity
- High-Speed, Interlock Button
- Easy Service Access
- 96‘ Forks Option For Order Picking
- Teflon® Coated PolyLube Lift Linkage Bushings (Maintenance Free)
- Heavy-Duty Bushings and Pins
- Self-Adjusting Electric Disc Brake
- Wrap-Around Hand Guard
- Welded Construction with Reinforced Heavy-Duty Bumper
- Box Rail Fork Construction
- Emmisions: 0
- Intuitively Positioned Lift/Lower and Horn Buttons (Horn Button on 8TB50 Only)
- 24-Volt Electrical System
- Low-Effort Control Handle
- AC Drive Motor (No Brushes or Commutator)
- MPH Travel Speed: 6.2
- Bubble-Cushioned Operator Floor Mat, Padded Backrest and Knee Pad
- Dual Thumb Wheels with Twist Grips for Directional Control and Travel Speed
- AC Drive System
- Electronic Horn
- Controller Area Network (CAN-bus) Communications
- On-Board Self-Diagnostics
- Volt Motor: 24
- One-Piece, Lightweight Service Access Cover
