Toyota Counter-Balanced Stacker (2,000-4,000 LBS)
| Make | Toyota |
| Model | Counter-Balanced Stacker (2,000-4,000 LBS) |
| Type | Pallet Jacks and Stackers |
How can we help?
Description
Overview

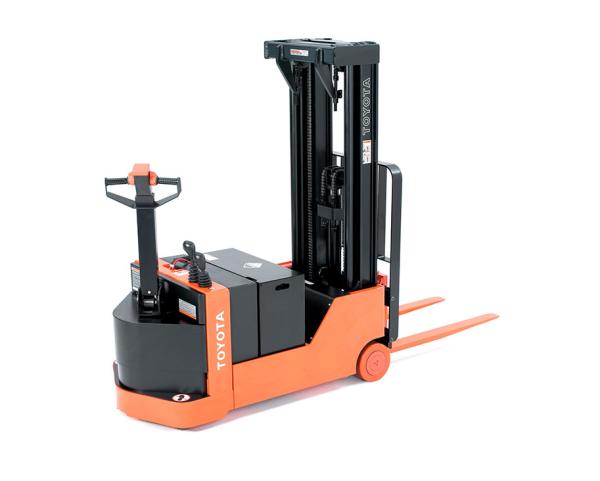

Toyota’s Counterbalanced Electric Pallet Stacker is a nimble, highly-versatile lift that complements nearly any primarily indoor application. Balanced similar to a traditional forklift and without baselegs, the Counterbalanced Electric Stacker can fit into tight spaces. Extremely durable and budget friendly, the Toyota Counterbalanced Stacker can help increase both your uptime and your bottom line.
Models
Counter-Balanced Stacker
| Model Number | Load Capacity* (lbs.) | Max. Travel Speed Full Load (MPH) | Max. Lift Speed Full Load (FPM) | Max. Gradeability Full Load (%) | Basic Right Angle Stack** (IN.) |
|---|---|---|---|---|---|
| 6BWC10 | 2,000 | 2.9 | 37 | 6 | 111 |
| 6BWC15 | 3,000 | 3 | 32 | 6 | 116 |
| 6BWC20 | 4,000 | 2.8 | 27 | 6 | 122 |
Continued Performance
According to recent studies by Peerless Research Group, more and more forklift owners plan to keep their forklifts for 10+ years! Just like a car, truck or other motorized asset, periodic maintenance, service and upkeep is required, even under normal operating conditions, to keep your Toyota Center-Controlled Rider Pallet Jack operating to peak performance. It is not uncommon for Toyota forklift owners to well exceed 10 years of use, as long as the forklift is properly maintained. Paired with a Planned Maintenance (PM) Plan, the Center-Controlled Rider Pallet Jack can be an asset for your company for years to come.
Specifications
- Length to Forkface: 64.8 - 76.6 in
- Load Capacity: 2,000 - 4,000 lb. Load Capacity
- Mast Lowered Height: 83 in
- Overall Width: 34.1 in
- Travel Speed Full Load: 2.8 - 3 mph Travel Speed Full Load
- Voltage: 24 Voltage
Features
- Easy-Access Service Cover
- Reverse Polarity Protection Contactor
- Multifunction Control Handle
- Electric Horn
- Direction Reverse Switch In Control Handle
- Pressure-Overload Relief Valve and Lowering Control Fuses
- SB-175 Red Connector
- 24 Volt Electrical System
- Directional Thumb Control
- On/Off Key Switch
- UL-Approved Model Type E
- Up to 4,000 lb. Lifting Capacity
- 30-Inch Wide ITA Class II Hook-Type Carriage
- Fully-Programmable Drive System
- 9-10‘ Aisle Widths
- Up to 15‘ Lift Height
- Volt Motor: 24
- Steel Access Door
- High-Visibility Mast
- Automatic Resetting Circuit Breaker
- FPM Lift Speed: 37
- Emissions: 0
- Emergency Power Disconnect Switch
- Power On Self Test
- MOSFET Programmable Controller
- High Visibility Mast
- Mechanical Drum Brake
