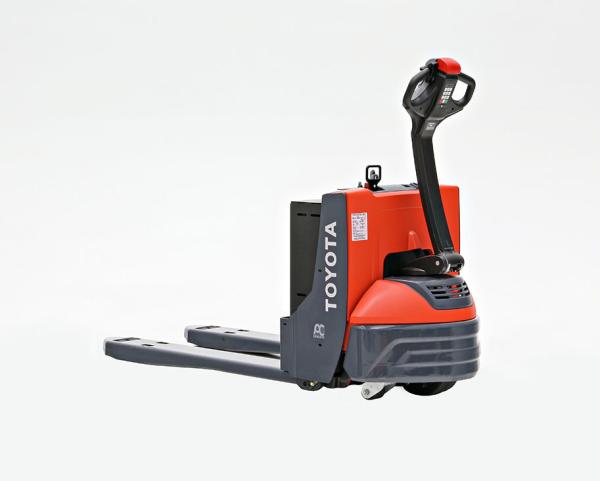

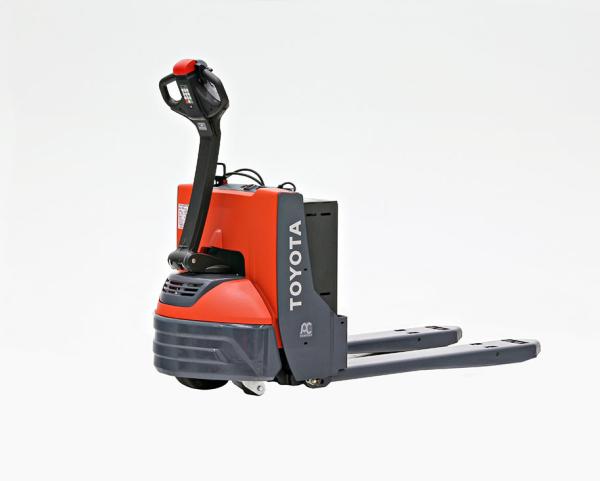

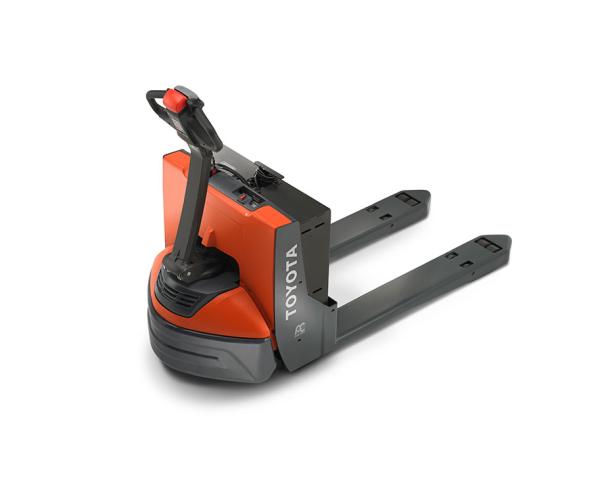

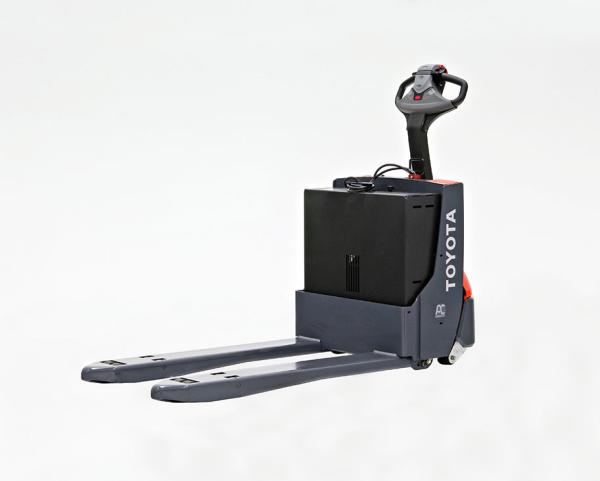

Toyota Electric Walkie Pallet Jack (4,500 LBS)
| Make | Toyota |
| Model | Electric Walkie Pallet Jack (4,500 LBS) |
| Type | Pallet Jacks and Stackers |
How can we help?
Description
Overview
The Toyota Electric Walkie Pallet Jack makes pulling product through the warehouse efficient and convenient. The first of its kind to offer a factory option for an integrated fork scale, the Electric Walkie Pallet Jack can calculate weight even as the load is lifted and save space by eliminating the need for a separate scale. Ideal for mid-distance runs as well as loading and unloading trailers, it’s a handy, multi-use solution for nearly any application.
Models
Continued Performance
According to recent studies by Peerless Research Group, more and more forklift owners plan to keep their forklifts for 10+ years! Just like a car, truck or other motorized asset, periodic maintenance, service and upkeep is required, even under normal operating conditions, to keep your Toyota Center-Controlled Rider Pallet Jack operating to peak performance. It is not uncommon for Toyota forklift owners to well exceed 10 years of use, as long as the forklift is properly maintained. Paired with a Planned Maintenance (PM) Plan, the Center-Controlled Rider Pallet Jack can be an asset for your company for years to come.
Electric Walkie Pallet Jack
| Model Number | Load Capacity* (lbs.) | Max. Travel Speed Full Load (MPH) | Max. Lift Speed Full Load (FPM) | Max. Gradeability Full Load (%) | Basic Right Angle Stack** (IN.) |
|---|---|---|---|---|---|
| 8HBW23 | 4500 | 3.6 | N/A | 10 | 85.3 |
Specifications
- Height (Extended Handle): 47.2 in
- Load Capacity: 4,500 lb. Load Capacity
- Overall Length: 53.4 - 81.4 in
- Overall Width: 26.6 in
- Travel Speed Full Load: 3.6 mph Travel Speed Full Load
- Voltage: 24 Voltage
Features
- Box Rail Fork Construction
- Electric Disc Brake
- Programmable Neutral Speed Reduction
- Emergency Power Disconnect
- Controller Area Network (CAN-Bus) Communication
- Volt Motor: 24
- Fingertip Control of all Functions
- Programmable Service Indicator
- Directional Thumb Wheels
- Highly maneuverable

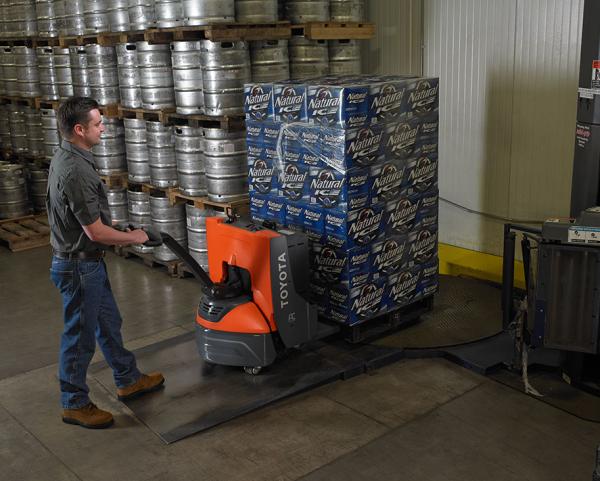

- Integrated Fork Scale
- Spring-Loaded Control Handle
- Up to 4,500 lbs. Carrying Capacity
- High-Strength Service Cover with Pen & Pencil Storage Tray
- Battery Compartment: 26.5‘ x 7.8‘ x Open Height
- IP65 Electrical System
- “Pinwheel“ Capability for Right Angle Stacking
- Emissions: 0
- Long run times
- Electronic Brake Release
- Click to Creep Function
- Rated: IP65
- Transistor Drive Control System (MOSFET)
- 24 Volt Electrical System
- Multifunction Control Handle with Ergonomically Angled Hand Grips
- Steel Battery Case
- Anti-Roll Back System
- Electric Horn
- Regenerative Braking
- Optional Integrated Fork Scale
- Tool-free cover removal
- AC Drive Motor
Links
Copy Set
Continued Performance
According to recent studies by Peerless Research Group, more and more forklift owners plan to keep their forklifts for 10+ years! Just like a car, truck or other motorized asset, periodic maintenance, service and upkeep is required, even under normal operating conditions, to keep your Toyota Center-Controlled Rider Pallet Jack operating to peak performance. It is not uncommon for Toyota forklift owners to well exceed 10 years of use, as long as the forklift is properly maintained. Paired with a Planned Maintenance (PM) Plan, the Center-Controlled Rider Pallet Jack can be an asset for your company for years to come.
Electric Walkie Pallet Jack
| Model Number | Load Capacity* (lbs.) | Max. Travel Speed Full Load (MPH) | Max. Lift Speed Full Load (FPM) | Max. Gradeability Full Load (%) | Basic Right Angle Stack** (IN.) |
|---|---|---|---|---|---|
| 8HBW23 | 4500 | 3.6 | N/A | 10 | 85.3 |
