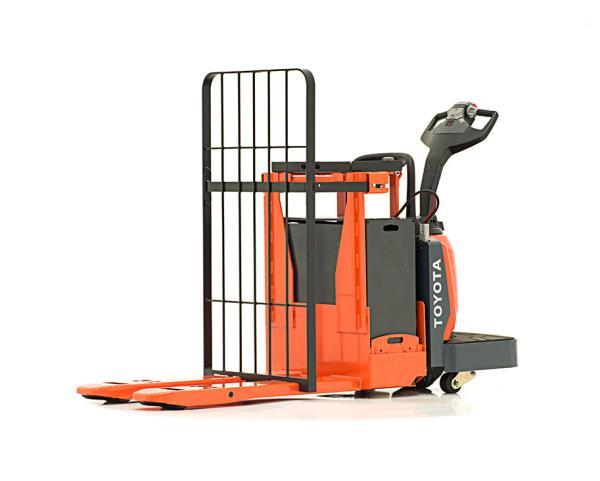

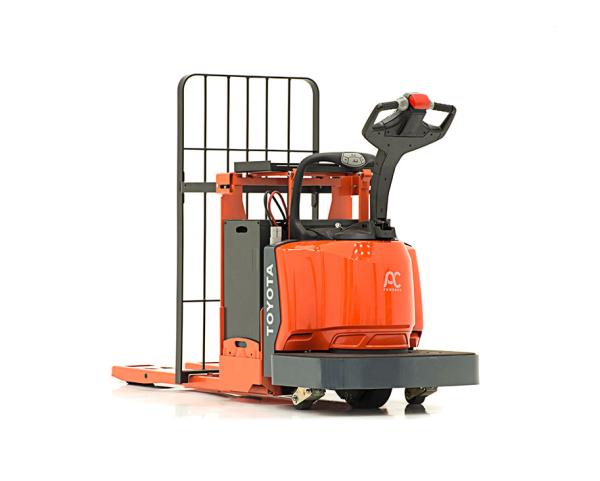

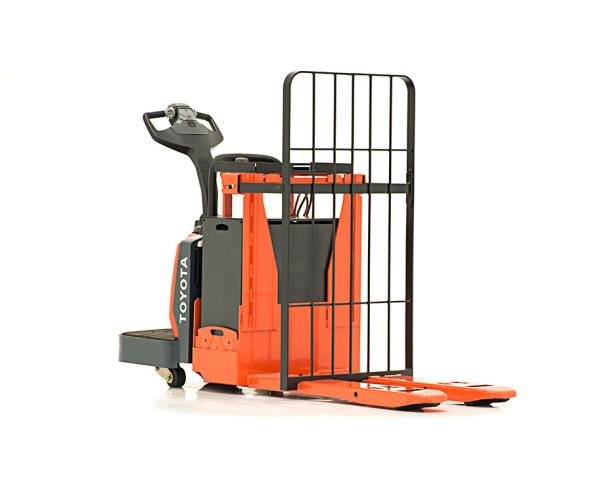

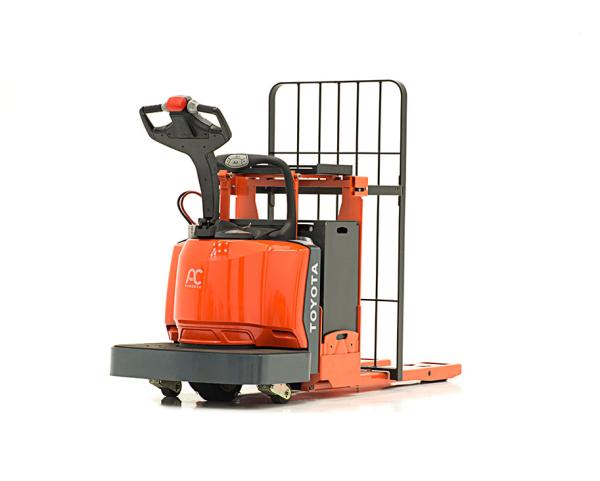

Toyota End-Controlled Rider Pallet Jack (6,000-8,000 LBS)
| Make | Toyota |
| Model | End-Controlled Rider Pallet Jack (6,000-8,000 LBS) |
| Type | Pallet Jacks and Stackers |
How can we help?
Description
Overview
The Toyota End-Controlled Rider pallet jack is easy to maneuver and quick to respond to commands. The End-Controlled Rider, ideal for longer runs, makes moving product throughout the warehouse efficient and enjoyable. Doubling as a ground-level order picker, the End-Controlled Rider pallet jack is an asset to any warehouse or distribution center.
Models
Continued Performance
According to recent studies by Peerless Research Group, more and more forklift owners plan to keep their forklifts for 10+ years! Just like a car, truck or other motorized asset, periodic maintenance, service and upkeep is required, even under normal operating conditions, to keep your Toyota End-Controlled Rider Pallet Jack operating to peak performance. It is not uncommon for Toyota forklift owners to well exceed 10 years of use, as long as the forklift is properly maintained. Paired with a Planned Maintenance (PM) Plan, the End-Controlled Rider Pallet Jack can be an asset for your company for years to come.
Option for Cold Climates
Toyota’s End-Controlled Rider Pallet Jack offers various solutions for extreme climates, including galvanized options, cold conditioning packages and ergonomic features to accommodate heavy gloves.
End-Controlled Rider Pallet Jack
| Model Number | Load Capacity* (lbs.) | Max. Travel Speed Full Load (MPH) | Max. Lift Speed Full Load (FPM) | Max. Gradeability Full Load (%) | Basic Right Angle Stack** (IN.) |
|---|---|---|---|---|---|
| 8HBE30 | 6000 | 6.2 | N/A | 10 | 85.4 |
| 8HBE40 | 8000 | 6.2 | N/A | 10 | 129.3 |
Specifications
- Height (Extended Handle): 56.7 in
- Load Capacity: 6,000 - 8,000 lb. Load Capacity
- Overall Length: 76.4 - 186.8 in
- Overall Width: 36 in
- Travel Speed Full Load: 6.2 mph Travel Speed Full Load
- Voltage: 24 Voltage
Features
- One-Piece, Lightweight Service Access Cover
- AC Drive System
- DIRECTIONAL REVERSE SWITCH ON CONTROL HANDLE
- Intuitively Positioned Lift/Lower and Horn Buttons (Horn Button on 8TB50 Only)
- Regenerative Braking
- Controller Area Network (CAN-bus) Communications
- Galvanized option for wet or cold climates
- Box Rail Fork Construction
- WRAP-AROUND HAND GUARD
- Volt Motor: 24
- EMISSIONS: 0
- Soft-Cushioned Rider Platform
- ELECTRIC HORN
- 96‘ forks option for order picking
- Dual Thumb Wheels with Twist Grips for Directional Control and Travel Speed
- MPH travel speed: 6.2
- AC Drive Motor (No Brushes or Commutator)
- Up to 8,000 lbs. Carrying Capacity
- Teflon® Coated PolyLubeLift Linkage Bushings (Maintenance Free)
- Self-Adjusting Electric Disc Brake
- Error Indicator with Self-Diagnostics
- Welded Construction with Reinforced Heavy-Duty Bumper
- SPRING-LOADED CONTROL HANDLE

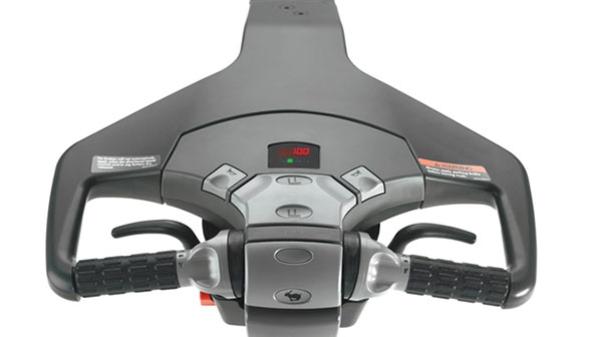

- Multifunction Control Handle with Ergonomically Angled Hand Grips and Wrap-Around Hand Guard
- STABILITY HAND RAIL WITH LIFT, LOWER, HORN AND HIGH-SPEED FUNCTIONS
- RUNAWAY PROTECTION
- 24-Volt Electrical System
- Low Platform Step Height
- Programmable Performance
