Toyota Industrial Walkie Stacker (2,200-4,000 LBS)
| Make | Toyota |
| Model | Industrial Walkie Stacker (2,200-4,000 LBS) |
| Type | Pallet Jacks and Stackers |
How can we help?
Description
Overview

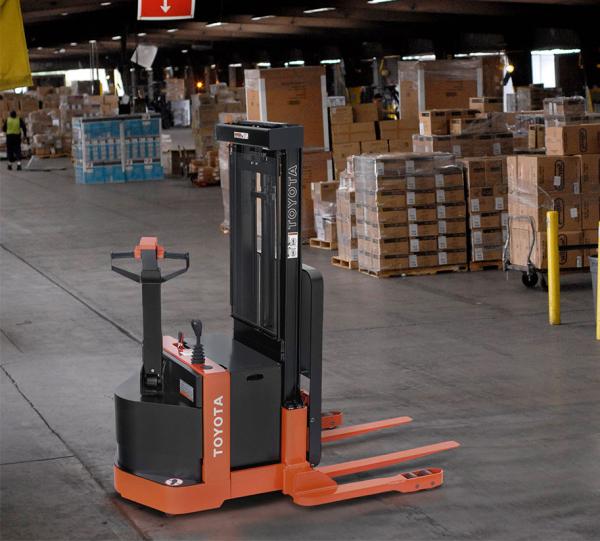

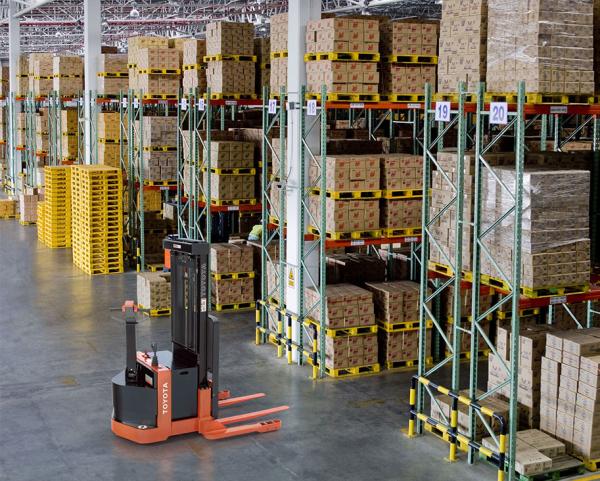

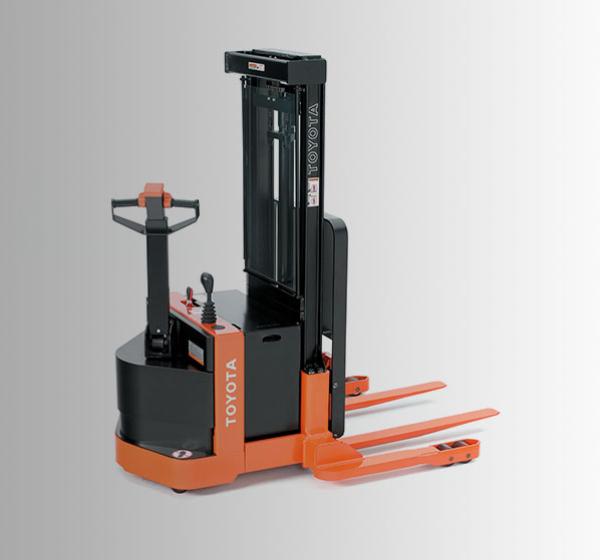

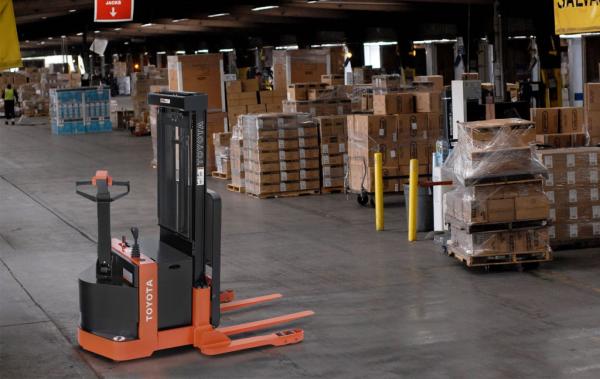

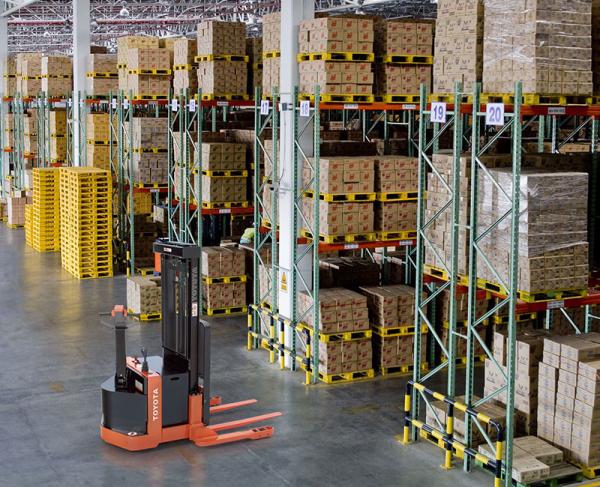

When a traditional forklift isn’t necessary but lifting product above a second-tier rack is, the Toyota Industrial Stacker is a cost-efficient, easy-to-use solution. With top-of-the-line durability and long-run performance, the Industrial Stacker is an economical complement to nearly any forklift fleet.
Models
Industrial Walkie Stacker
| Model Number | Load Capacity* (lbs.) | Max. Travel Speed Full Load (MPH) | Max. Lift Speed Full Load (FPM) | Max. Gradeability Full Load (%) | Basic Right Angle Stack** (IN.) |
|---|---|---|---|---|---|
| 6BSW11 | 2,200 | 2.9 | 32 | 6 | 81 |
| 6BWS15 | 3,000 | 2.9 | 32 | 6 | 85 |
| 6BWS20 | 4,000 | 2.6 | 27 | 6 | 88 |
Continued Performance
According to recent studies by Peerless Research Group, more and more forklift owners plan to keep their forklifts for 10+ years! Just like a car, truck or other motorized asset, periodic maintenance, service and upkeep is required, even under normal operating conditions, to keep your Toyota Industrial Stacker operating to peak performance. It is not uncommon for Toyota forklift owners to well exceed 10 years of use, as long as the forklift is properly maintained. Paired with a Planned Maintenance (PM) Plan, the Industrial Stacker can be an asset for your company for years to come.
Specifications
- Length to forkface: 38.4 - 47.9 in
- Load Capacity: 2,200 - 4,000 lb. Load Capacity
- Mast Lowered Height: 83 in
- Overall Width: 40 - 58 in
- Travel Speed Full Load: 2.6 - 2.9 mph Travel Speed Full Load
- Voltage: 24 Voltage
Features
- Power On Self Test
- Navigation in 7-8‘ aisles
- Steel Access Door
- Emergency Power Disconnect Switch
- High-Visibility Mast
- Fully-Programmable Drive System
- Safety Glass Mast Guard
- Multifunction Control Handle
- 24 Volt Electrical System
- Up to 4,000 lb. Lifting Capacity
- Easy-Access Service Cover
- MOSFET Programmable Controller
- Electric Horn
- SB-175 Red Connector
- Direction Reverse Switch In Control Handle
- MPH Travel Speed: 2.8
- On/Off Key Switch
- Directional Thumb Control
- UL-Approved Model Type E
- Automatic Resetting Circuit Breaker
- FPM Lower Speed: 60
- 12‘ Lift Heights
- Battery Compartment: 32.3‘ x 13.3‘ x Open Height
- Reverse Polarity Protection Contactor
- Mechanical Drum Brake
- Emissions: 0
