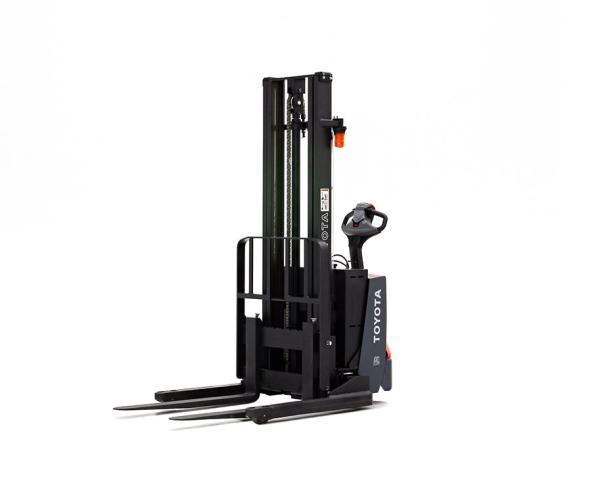

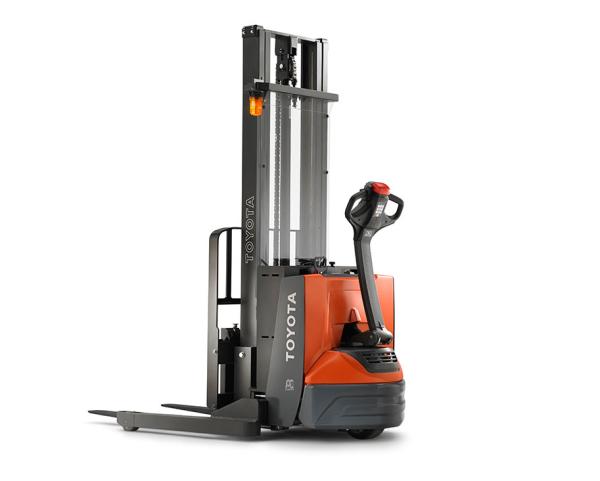

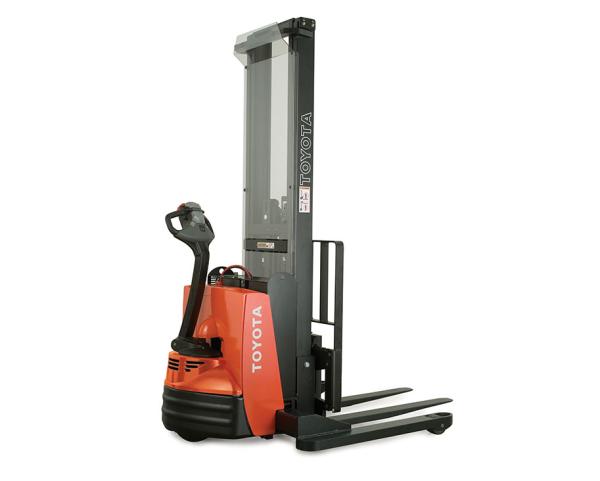

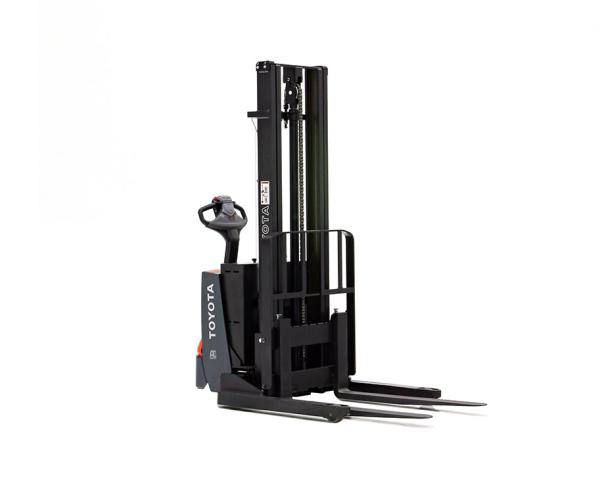

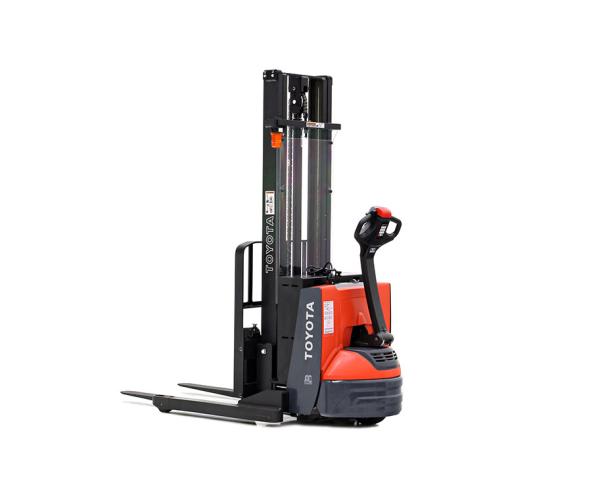

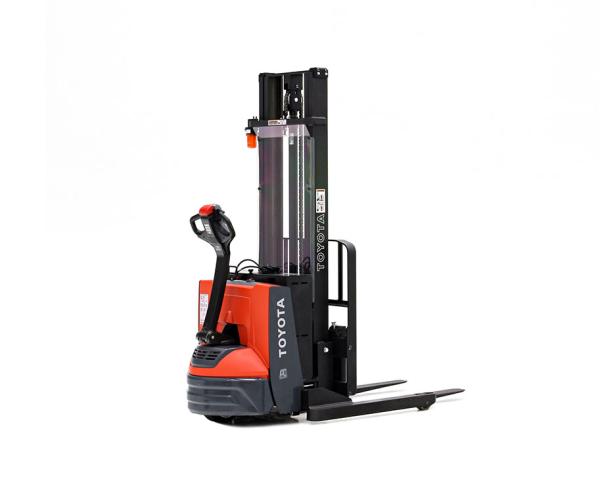

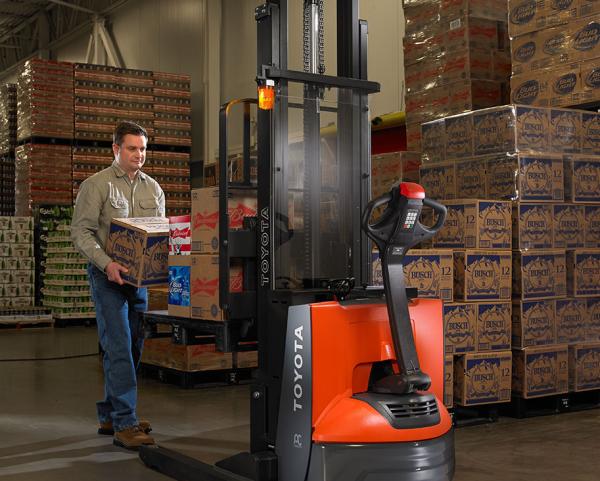

Toyota Walkie Stacker (2,000-2,500 LBS)
| Make | Toyota |
| Model | Walkie Stacker (2,000-2,500 LBS) |
| Type | Pallet Jacks and Stackers |
How can we help?
Description
Overview
Toyota’s industry-leading Walkie Stacker includes adjustable baselegs to accommodate various pallet sizes and aisle widths. The versatility of this walk behind forklift makes it a strong complement to nearly any indoor application. Extremely durable and budget friendly, the Toyota Walkie Stacker Forklift can help increase both your uptime and your bottom line.
Models
Walkie Stacker
| Model Number | Load Capacity* (lbs.) | Max. Travel Speed Full Load (MPH) | Max. Lift Speed Full Load (FPM) | Max. Gradeability Full Load (%) | Basic Right Angle Stack** (IN.) |
|---|---|---|---|---|---|
| 8BWS10 | 2000 | 3.4 | 20 - 53 | 6 | 86.7 |
| 8BWS13 | 2500 | 3.4 | 19 - 54 | 10 | 86.7 |
Continued Performance
According to recent studies by Peerless Research Group, more and more forklift owners plan to keep their forklifts for 10+ years! Just like a car, truck or other motorized asset, periodic maintenance, service and upkeep is required, even under normal operating conditions, to keep your Toyota Industrial Stacker operating to peak performance. It is not uncommon for Toyota forklift owners to well exceed 10 years of use, as long as the forklift is properly maintained. Paired with a Planned Maintenance (PM) Plan, the Industrial Stacker can be an asset for your company for years to come.
Specifications
- Electrical System: 24 V Electrical System
- Length to forkface: 35.6 in
- Load Capacity: 2,000 - 2,500 lb. Load Capacity
- Mast Lowered Height: 71 - 91 in
- Overall Width: 40 - 59 in
- Travel Speed Full Load: 3.4 mph Travel Speed Full Load
Features
- Error Indicator with Self-Diagnostics
- Click-to-Creep Function
- Battery Discharge Indicator & Correction With Lift Interrupt
- Multifunction Control Handle with Ergonomically-Angled Hand Grips
- 182º Steering Arc
- Electronic Brake Release
- IP65 Electrical System
- Programmable Neutral Speed Reduction
- Heavy Duty Bumpers
- Directional Thumb Wheels
- Emergency Power Disconnect Switch
- Navigation in 7-8‘ aisles
- Bolt-On Mast Mounting
- Increased Bumper Clearance
- One-piece High-Strength Service Cover
- Transistor Drive Control System (MOSFET)
- Programmable Service Indicator
- Rugged, All-Steel Frame Construction
- Safety Glass Mast Guard
- Regenerative Braking
- 24 Volt Electrical System
- AC Drive Motor
- Programmable Performance
- Direction Reverse Switch
- Up to 2,500 lb. Lifting Capacity
- Fingertip Control of all Functions
- Click-to-Creep travel function
- Up to 12‘ Lift Heights
- Emissions: 0
- Rated: IP65
- Class ‘F‘ Motor Insulation
- Battery Compartment: 27.3‘L x 7.8‘W x Open Height
- 32‘ to 51‘ Straddle Openings Available
- Controller Area Network (CAN-Bus) Communication
- Electric Horn
- Stainless Steel Linkage Pins
- Volt Motor: 24
