Toyota Large IC Cushion (8,000-15,500 LBS)

Internal Combustion: Cushion


How can we help?

(509) 535-1776

Overview

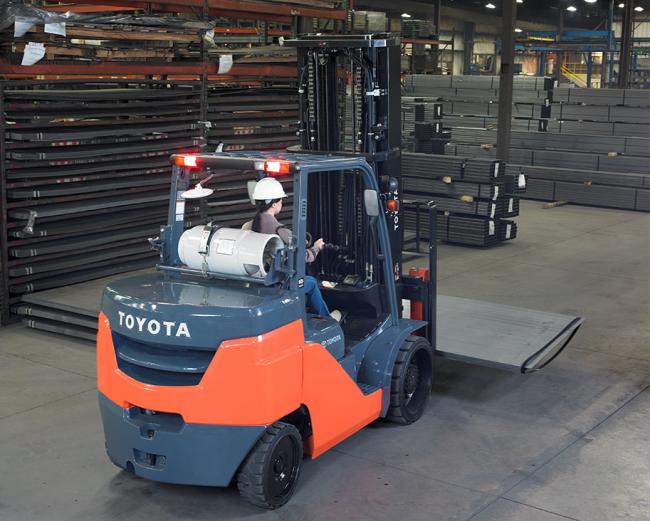

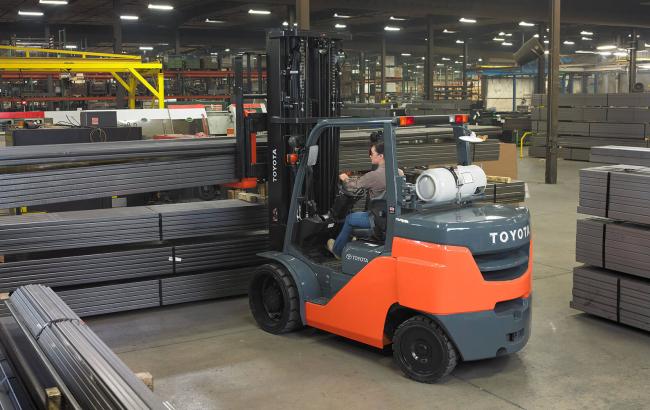

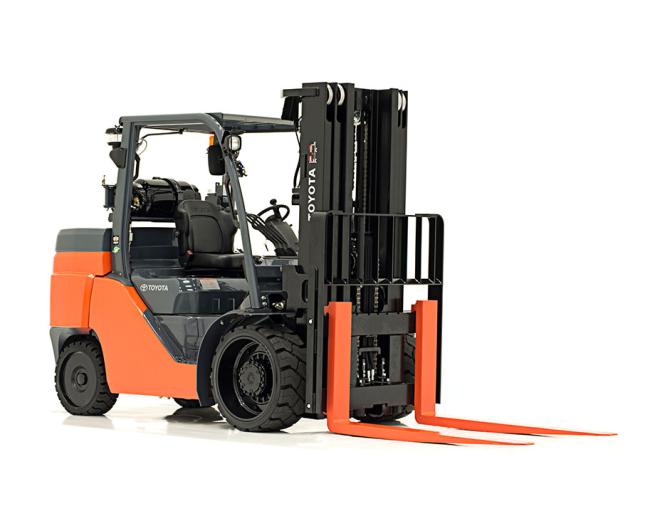

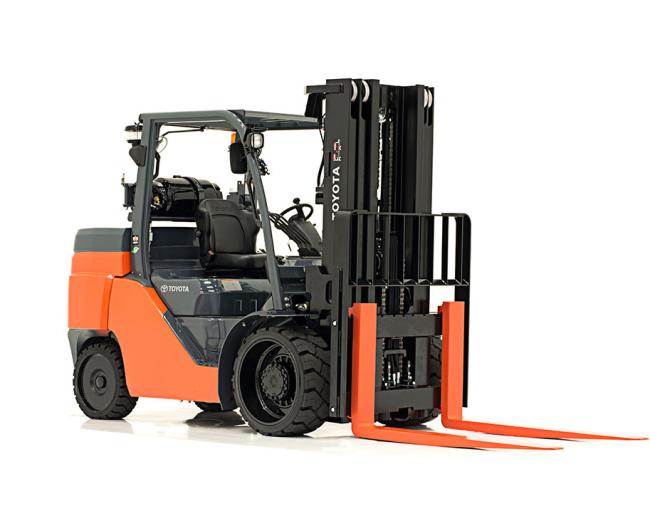

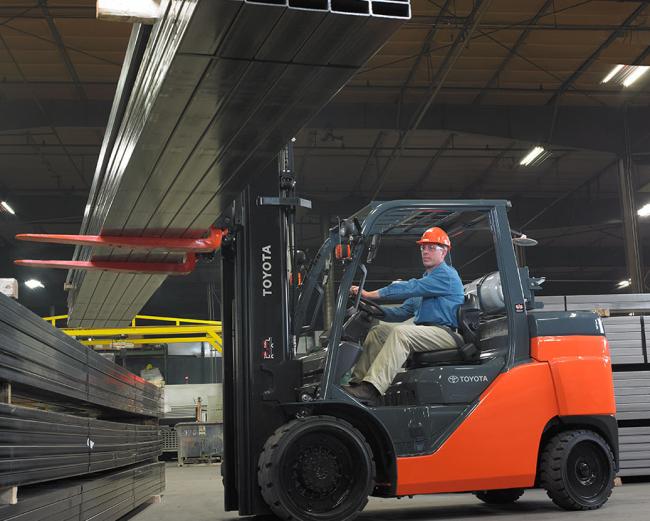

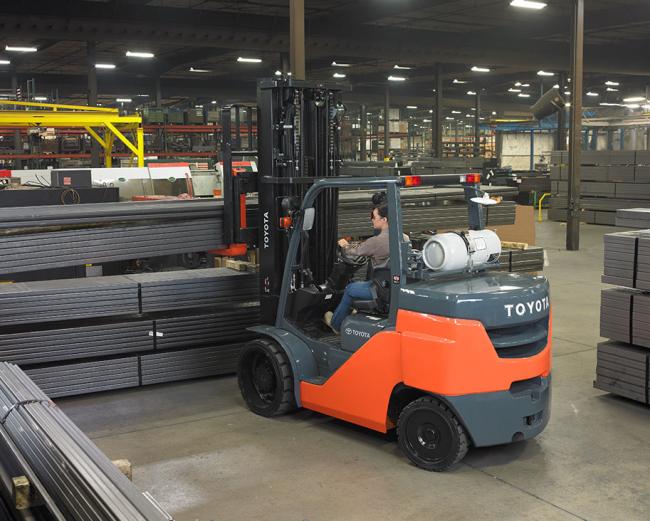

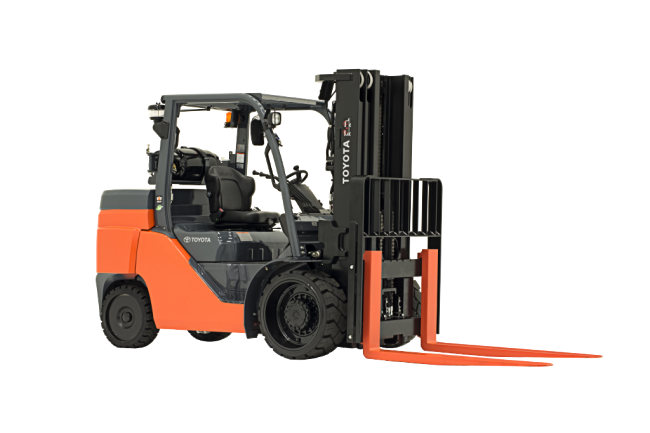

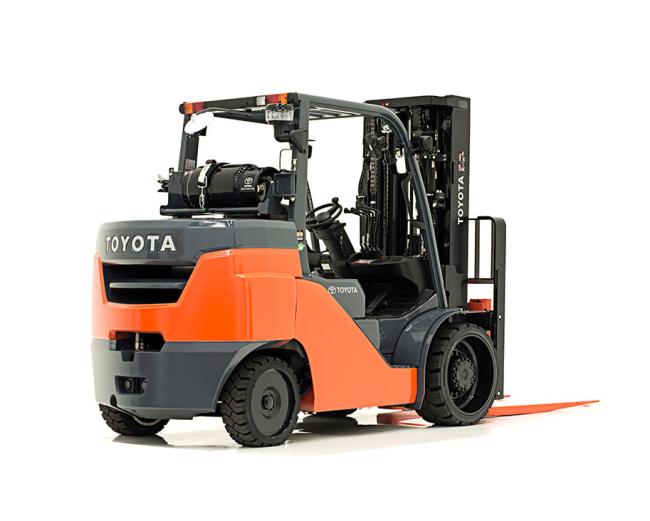

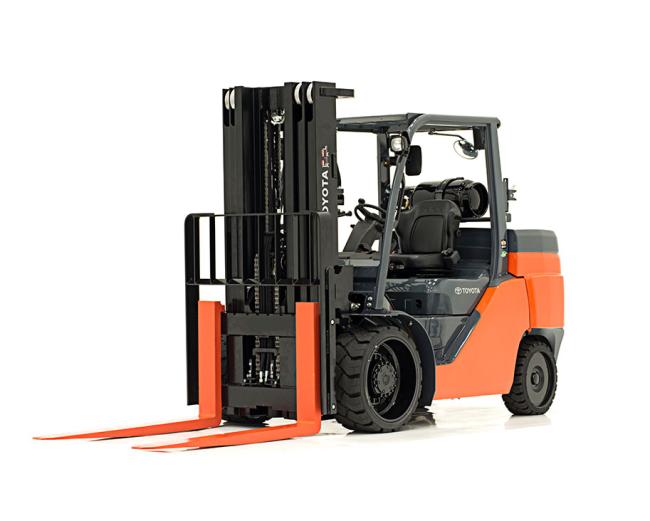

Toyota’s Large IC Cushion forklift is a durable, high lift capacity forklift used primarily indoors and in specialty applications such as retail, lumber yards, heavy-duty manufacturing, shipping and freight, and various warehouse applications. The Large IC Cushion can be outfitted as the Box Car Special or the Paper Roll Special forklift models. Model numbers: 8FGC35-70U.

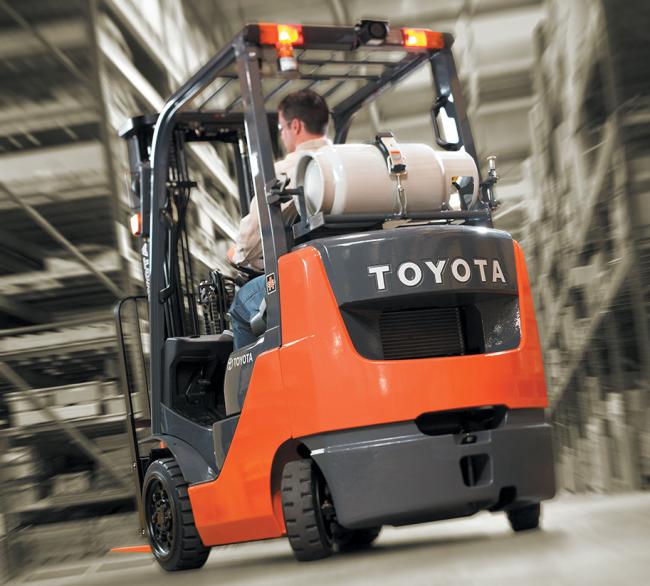

Changing LPG Tanks

Liquid propane gas (LPG) is a flammable and explosive gas. Changing a forklift LPG tank requires proper instruction. Click to learn eight tips for responsibly changing the LPG tank on your IC forklift.


Overview

Toyota’s Large IC Cushion forklift is a durable, high lift capacity forklift used primarily indoors and in specialty applications such as retail, lumber yards, heavy-duty manufacturing, shipping and freight, and various warehouse applications. The Large IC Cushion can be outfitted as the Box Car Special or the Paper Roll Special forklift models. Model numbers: 8FGC35-70U.

Changing LPG Tanks

Liquid propane gas (LPG) is a flammable and explosive gas. Changing a forklift LPG tank requires proper instruction. Click to learn eight tips for responsibly changing the LPG tank on your IC forklift.


Large IC Cushion Forklift

Model Number Load Capacity* (lbs.) Max. Travel Speed Full Load (MPH) Max. Lift Speed Full Load (FPM) Max. Gradeability Full Load (%) Basic Right Angle Stack** (IN.)
8FGC35U 8,000 11.8 100 47 107.5
8FGC45U 10,000 11.8 98 37 112
8FGC55U 12,000 13 91 34 118
8FGC60U 13,500 13 81 31 123
8FGC70U 15,500 13 81 28 123

Features

  • Easy lift engine hood with wide 75 degree opening

  • LOAD BACKREST

  • ELECTRIC HORN

  • Engine hood assist damper with lock device

  • Up to 15,500 lbs. lift capacity

  • BOLT-ON OVERHEAD GUARD

  • Fully-Sealed Air Intake

  • KEY LOWERING INTERLOCK

  • Controller Area Network (CAN-bus) communication

  • Engine protection system

  • Nearly 20‘ lift height

  • Fork Leveling: Automatic

  • Dash mounted instrument display

  • SYSTEM OF ACTIVE STABILITY (SAS)

  • Easy access no-tools floorboard

  • Low, wide entry steps

  • Load sensing power steering

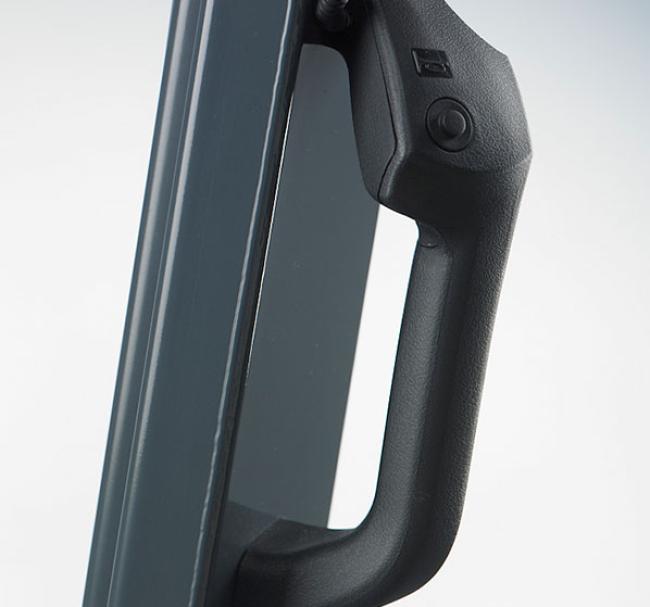

  • DUAL OPERATOR ASSIST GRIPS

  • 11.8‘ diameter two-spoke steering wheel

  • LED headlights

  • LCD multi-function display

  • SYSTEM OF ACTIVE STABILITY

  • Easy access to common service items such as filters & dipsticks

  • Travel Speed: 13 mph

  • OPERATOR RESTRAINT SEAT

  • 12‘ long dual operator assist grips

  • NEUTRAL START SAFETY SWITCH

  • 4-Way adjustable vinyl full-suspension seat

  • Navigation in 13-14‘ aisle widths

  • Horsepower: 84

  • OPERATOR PRESENCE SENSING SYSTEM (OPSS)

  • Exclusive QR code diagnostics

  • Integrated monitoring system

  • Adjustable headlights with guards

  • Dash integrated amenity tray and oversized cup holder

  • Air Cleaner discharge valve

  • Moisture resistant electric connectors

Specifications

Fuel Type:
Gas / LPG Fuel Type
Length to forkface:
103 - 118.1 in
Load Capacity:
8,000 - 15,500 lb. Load Capacity
Overall Width:
50 - 57.1 in
Overhead Guard Height:
83.5 - 86 in
Travel Speed Full Load:
11.8 - 13 mph Travel Speed Full Load
  • Details

    Large IC Cushion Forklift

    Model Number Load Capacity* (lbs.) Max. Travel Speed Full Load (MPH) Max. Lift Speed Full Load (FPM) Max. Gradeability Full Load (%) Basic Right Angle Stack** (IN.)
    8FGC35U 8,000 11.8 100 47 107.5
    8FGC45U 10,000 11.8 98 37 112
    8FGC55U 12,000 13 91 34 118
    8FGC60U 13,500 13 81 31 123
    8FGC70U 15,500 13 81 28 123
  • Features

    Features

    • Easy lift engine hood with wide 75 degree opening

    • LOAD BACKREST

    • ELECTRIC HORN

    • Engine hood assist damper with lock device

    • Up to 15,500 lbs. lift capacity

    • BOLT-ON OVERHEAD GUARD

    • Fully-Sealed Air Intake

    • KEY LOWERING INTERLOCK

    • Controller Area Network (CAN-bus) communication

    • Engine protection system

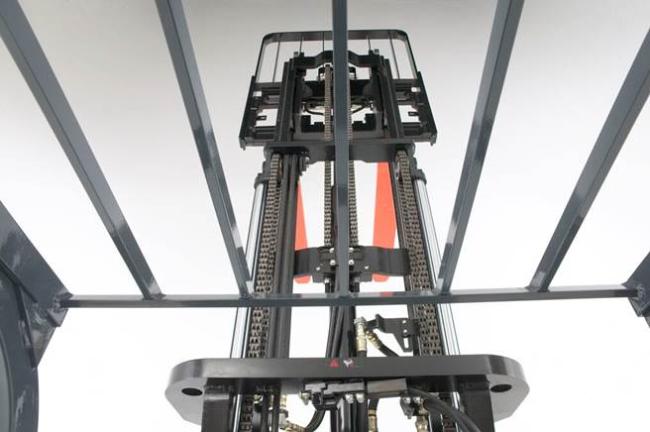

    • Nearly 20‘ lift height

    • Fork Leveling: Automatic

    • Dash mounted instrument display

    • SYSTEM OF ACTIVE STABILITY (SAS)

    • Easy access no-tools floorboard

    • Low, wide entry steps

    • Load sensing power steering

    • DUAL OPERATOR ASSIST GRIPS

    • 11.8‘ diameter two-spoke steering wheel

    • LED headlights

    • LCD multi-function display

    • SYSTEM OF ACTIVE STABILITY

    • Easy access to common service items such as filters & dipsticks

    • Travel Speed: 13 mph

    • OPERATOR RESTRAINT SEAT

    • 12‘ long dual operator assist grips

    • NEUTRAL START SAFETY SWITCH

    • 4-Way adjustable vinyl full-suspension seat

    • Navigation in 13-14‘ aisle widths

    • Horsepower: 84

    • OPERATOR PRESENCE SENSING SYSTEM (OPSS)

    • Exclusive QR code diagnostics

    • Integrated monitoring system

    • Adjustable headlights with guards

    • Dash integrated amenity tray and oversized cup holder

    • Air Cleaner discharge valve

    • Moisture resistant electric connectors

  • Specifications

    Specifications

    Fuel Type:
    		Gas / LPG Fuel Type
    Length to forkface:
    		103 - 118.1 in
    Load Capacity:
    		8,000 - 15,500 lb. Load Capacity
    Overall Width:
    		50 - 57.1 in
    Overhead Guard Height:
    		83.5 - 86 in
    Travel Speed Full Load:
    		11.8 - 13 mph Travel Speed Full Load
