Toyota Core Electric (3,000-6,500 LBS)

Electric Forklifts


How can we help?

(406) 541-8903

Overview

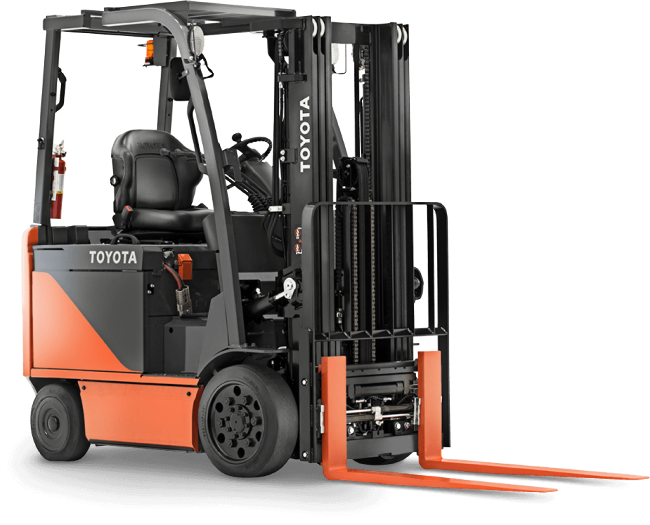

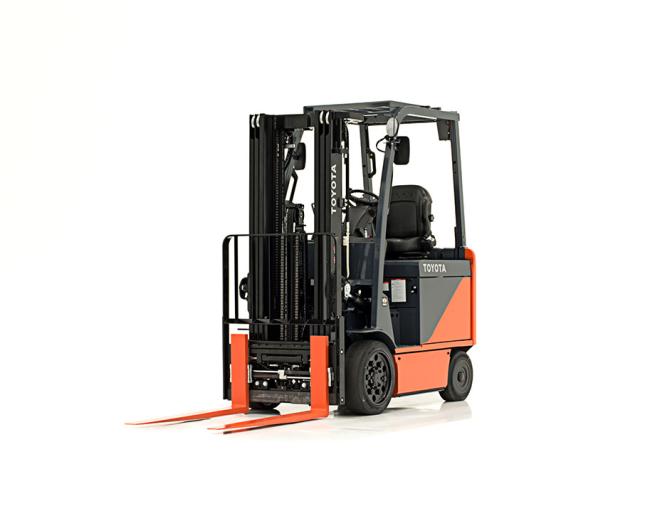

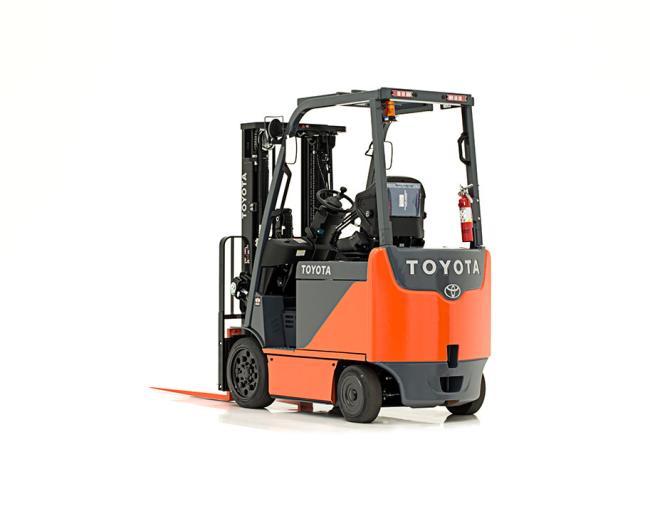

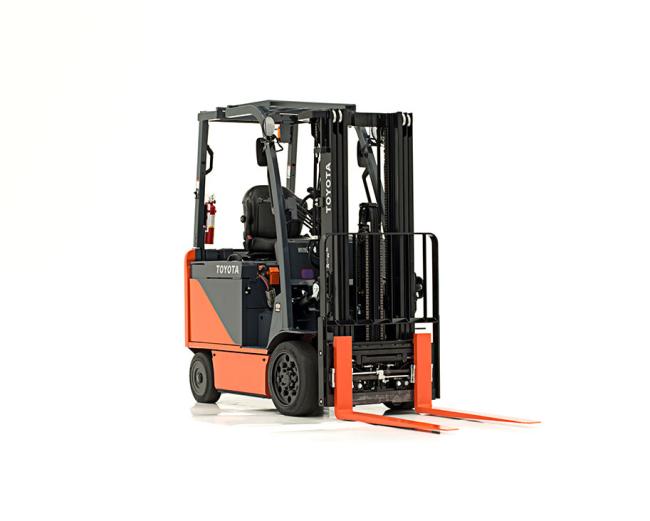

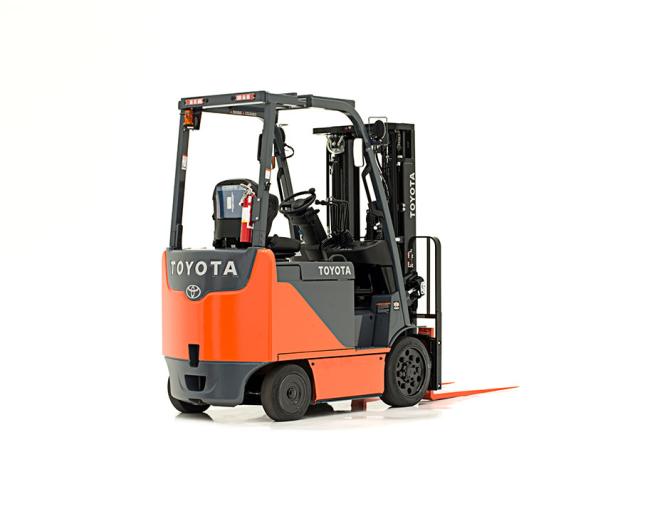

The Toyota Core Electric Forklift is an ideal compact four-wheel electric lift truck solution for most indoor and warehouse applications. The Core Electric Forklift is capable of moving most any standard load while maintaining the ability to fully operate in spaces as small as 11 feet wide. And Toyota designed and built AC motors provide new levels of performance, efficiency, and reliability to maximize your productivity and return on investment.

T-Matics Fleet Management

Toyota’s Fleet Management System, T-Matics, utilizes a Vehicle Management System to track and report forklift operating behavior and/or the operating behavior of the individual forklift operator, including utilization rates, impacts, location and more. Available on any size forklift fleet, T-Matics provides actionable data to make better operational decisions.

Continued Performance

According to recent studies by Peerless Research Group, more and more forklift owners plan to keep their forklifts for 10+ years! Just like a car, truck or other motorized asset, periodic maintenance, service and upkeep is required, even under normal operating conditions, to keep your Toyota Core Electric Forklift operating to peak performance. It is not uncommon for Toyota forklift owners to well exceed 10 years of use, as long as the forklift is properly maintained. Paired with a Planned Maintenance (PM) Plan, the Core Electric Forklift can be an asset for your company for years to come.


Overview

The Toyota Core Electric Forklift is an ideal compact four-wheel electric lift truck solution for most indoor and warehouse applications. The Core Electric Forklift is capable of moving most any standard load while maintaining the ability to fully operate in spaces as small as 11 feet wide. And Toyota designed and built AC motors provide new levels of performance, efficiency, and reliability to maximize your productivity and return on investment.

T-Matics Fleet Management

Toyota’s Fleet Management System, T-Matics, utilizes a Vehicle Management System to track and report forklift operating behavior and/or the operating behavior of the individual forklift operator, including utilization rates, impacts, location and more. Available on any size forklift fleet, T-Matics provides actionable data to make better operational decisions.

Continued Performance

According to recent studies by Peerless Research Group, more and more forklift owners plan to keep their forklifts for 10+ years! Just like a car, truck or other motorized asset, periodic maintenance, service and upkeep is required, even under normal operating conditions, to keep your Toyota Core Electric Forklift operating to peak performance. It is not uncommon for Toyota forklift owners to well exceed 10 years of use, as long as the forklift is properly maintained. Paired with a Planned Maintenance (PM) Plan, the Core Electric Forklift can be an asset for your company for years to come.


Core Electric Forklift

Model Number Load Capacity* (lbs.) Max. Travel Speed Full Load (MPH) Max. Lift Speed Full Load (FPM) Max. Gradeability Full Load (%) Basic Right Angle Stack** (IN.)
8FBC15U 3,000 11.5 (36V), 11.5 (48V) 88 (36V), 108 (48V) 20 (36V), 21 (48V) 82.1
8FBC18U 3,500 11.3 (36V), 11.3 (48V) 79 (36V), 100 (48V) 18 (36V), 20 (48V) 82.1
8FBCU20 4,000 9.9 (36V), 11.5 (48V) 67 (36V), 89 (48V) 25 (36V), 23 (48V) 87.2
8FBCU20-COMP 4,000 9.9 (36V), 11.5 (48V) 67 (36V), 89 (48V) 25 (36V), 23 (48V) 85.2
8FBCHU25 5,000 9.6 (36V), 11.5 (48V) 59 *36V), 79 (48V) 21 (36V), 24 (48V) 93.1
8FBCU25 5,000 9,6 (36V), 11.5 (48V) 59 (36V), 79 (48V) 21 (36V), 19 (48V) 87.6
8FBCU25-COMP 5,000 9.6 (36V), 11.5 (48V) 59 (36V), 79 (48V) 21 (36V), 19 (48V) 85.6
8FBCU28 5,500 9.3 (36V), 11.5 (48V) 55 (36V), 73 (48V) 17 (36V), 20 (48V) 90.3
8FBCU30 6,000 9.0 (36V), 11.2 (48V) 51 (36V), 69 (48V) 17 (36V), 20 (48V) 94.9
8FBCU32 6,500 9.0 (36V), 11.2 (48V) 47 (36V), 65 (48V) 17 (36V, 19 (48V) 96.4

Features

  • Planned Maintenance Indicator

  • Hydrostatic (On Demand) Power Steering

  • Operator Presence Sensing System (OPSS)

  • Key Lowering Interlock

  • 11.8‘ diameter two-spoke steering wheel

  • System of Active Stability (SAS)

  • Four-way adjustable full-suspension seat

  • One-way automatic fork leveling

  • Easy-access, no-tools-required floorboard

  • Digital (LCD) multifunction display

  • Selling Electric Forklift: No. 1

  • Lift Height: 23 FT.

  • Three forms of energy regeneration

  • Options: 130+

  • Cowl-mounted hydraulic controls

  • Foot Activated Parking Brake

  • Up to 6,500 lbs. Lifting Capacity

  • Bolt-on Overhead Guard

  • Easy-access Controllers

  • AC motors (no brushes or commutator)

  • Toyota designed AC motors

  • Adjustable front headlights

  • Up to 23‘ Lift Height

  • Easy-access hydraulic motor

  • Dual operator assist grips

  • Electric directional shift control

  • Battery compartment hood assist

  • Punched plate entry/exit step

  • Heavy-duty, non-slip floor mat

  • Manual Return to Neutral

  • 11-12‘ aisle widths

Specifications

Length to Forkface:
79.9 - 91.3 in
Load Capacity:
3,000 - 6,500 lb. Load Capacity
Overall Width:
41.9 - 43.7 in
Overhead Guard Height:
88 in
Travel Speed Full Load:
9 - 11.5 mph Travel Speed Full Load
Voltage:
36/ 48 Voltage
  • Details

    Core Electric Forklift

    Model Number Load Capacity* (lbs.) Max. Travel Speed Full Load (MPH) Max. Lift Speed Full Load (FPM) Max. Gradeability Full Load (%) Basic Right Angle Stack** (IN.)
    8FBC15U 3,000 11.5 (36V), 11.5 (48V) 88 (36V), 108 (48V) 20 (36V), 21 (48V) 82.1
    8FBC18U 3,500 11.3 (36V), 11.3 (48V) 79 (36V), 100 (48V) 18 (36V), 20 (48V) 82.1
    8FBCU20 4,000 9.9 (36V), 11.5 (48V) 67 (36V), 89 (48V) 25 (36V), 23 (48V) 87.2
    8FBCU20-COMP 4,000 9.9 (36V), 11.5 (48V) 67 (36V), 89 (48V) 25 (36V), 23 (48V) 85.2
    8FBCHU25 5,000 9.6 (36V), 11.5 (48V) 59 *36V), 79 (48V) 21 (36V), 24 (48V) 93.1
    8FBCU25 5,000 9,6 (36V), 11.5 (48V) 59 (36V), 79 (48V) 21 (36V), 19 (48V) 87.6
    8FBCU25-COMP 5,000 9.6 (36V), 11.5 (48V) 59 (36V), 79 (48V) 21 (36V), 19 (48V) 85.6
    8FBCU28 5,500 9.3 (36V), 11.5 (48V) 55 (36V), 73 (48V) 17 (36V), 20 (48V) 90.3
    8FBCU30 6,000 9.0 (36V), 11.2 (48V) 51 (36V), 69 (48V) 17 (36V), 20 (48V) 94.9
    8FBCU32 6,500 9.0 (36V), 11.2 (48V) 47 (36V), 65 (48V) 17 (36V, 19 (48V) 96.4
  • Features

    Features

    • Planned Maintenance Indicator

    • Hydrostatic (On Demand) Power Steering

    • Operator Presence Sensing System (OPSS)

    • Key Lowering Interlock

    • 11.8‘ diameter two-spoke steering wheel

    • System of Active Stability (SAS)

    • Four-way adjustable full-suspension seat

    • One-way automatic fork leveling

    • Easy-access, no-tools-required floorboard

    • Digital (LCD) multifunction display

    • Selling Electric Forklift: No. 1

    • Lift Height: 23 FT.

    • Three forms of energy regeneration

    • Options: 130+

    • Cowl-mounted hydraulic controls

    • Foot Activated Parking Brake

    • Up to 6,500 lbs. Lifting Capacity

    • Bolt-on Overhead Guard

    • Easy-access Controllers

    • AC motors (no brushes or commutator)

    • Toyota designed AC motors

    • Adjustable front headlights

    • Up to 23‘ Lift Height

    • Easy-access hydraulic motor

    • Dual operator assist grips

    • Electric directional shift control

    • Battery compartment hood assist

    • Punched plate entry/exit step

    • Heavy-duty, non-slip floor mat

    • Manual Return to Neutral

    • 11-12‘ aisle widths

  • Specifications

    Specifications

    Length to Forkface:
    		79.9 - 91.3 in
    Load Capacity:
    		3,000 - 6,500 lb. Load Capacity
    Overall Width:
    		41.9 - 43.7 in
    Overhead Guard Height:
    		88 in
    Travel Speed Full Load:
    		9 - 11.5 mph Travel Speed Full Load
    Voltage:
    		36/ 48 Voltage
