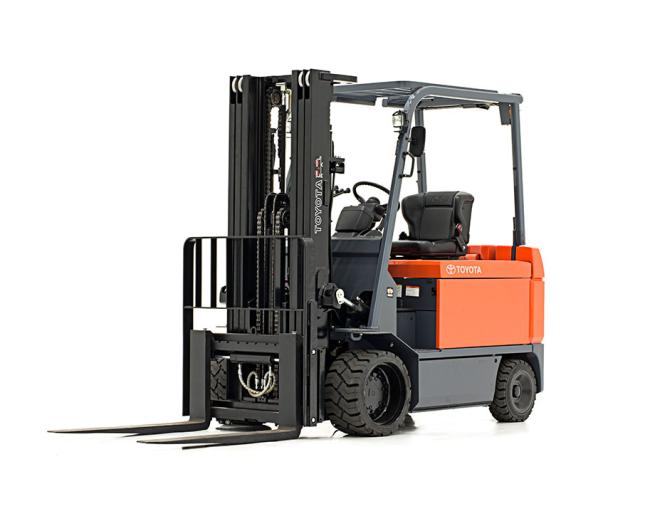

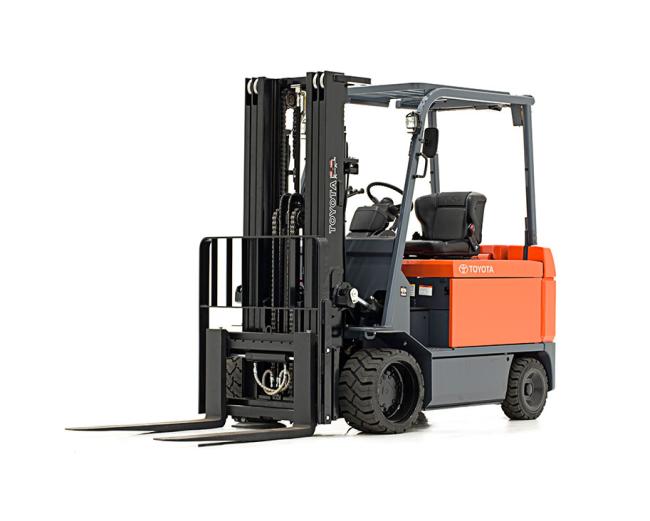

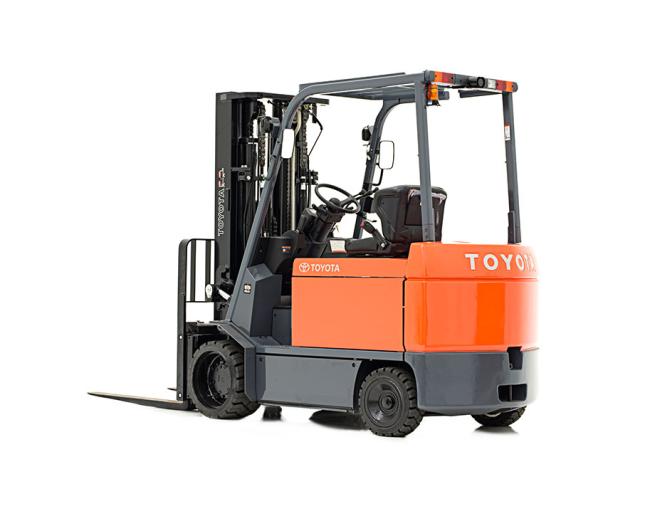

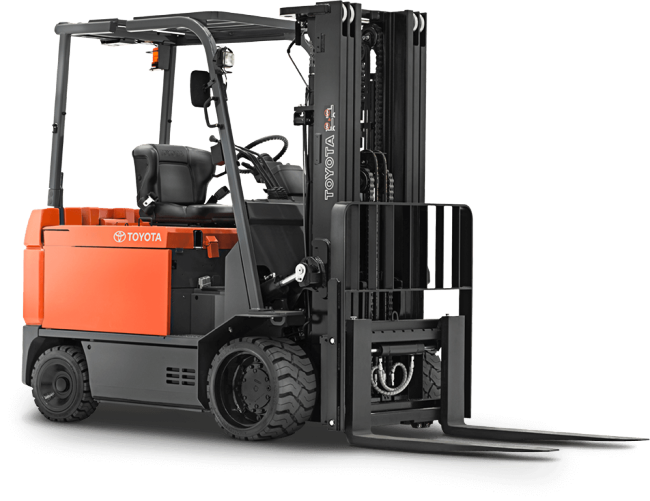

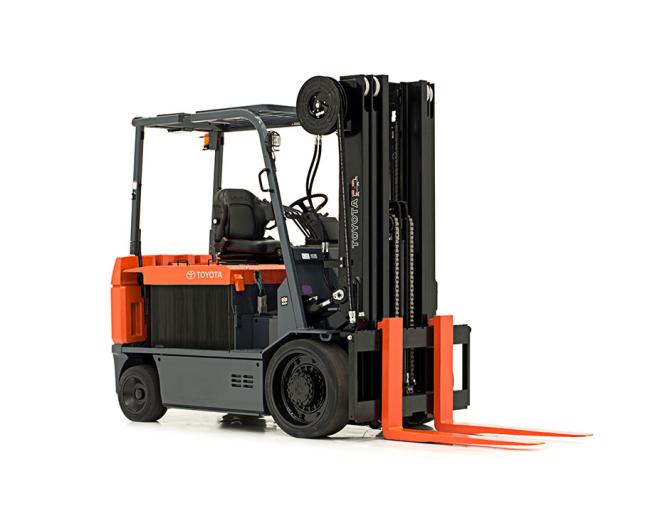

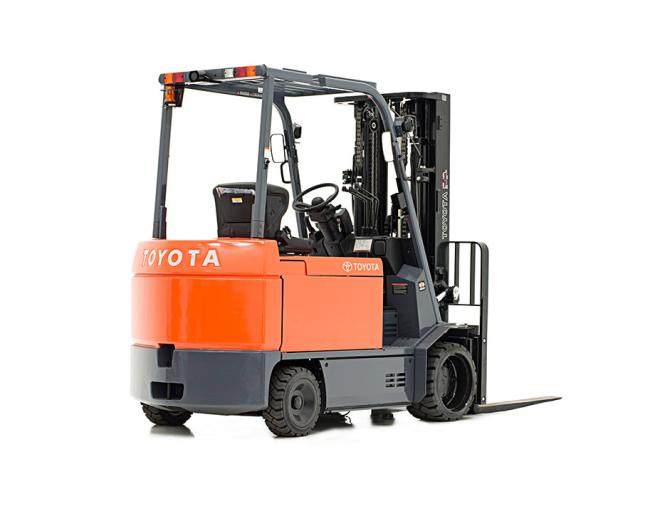

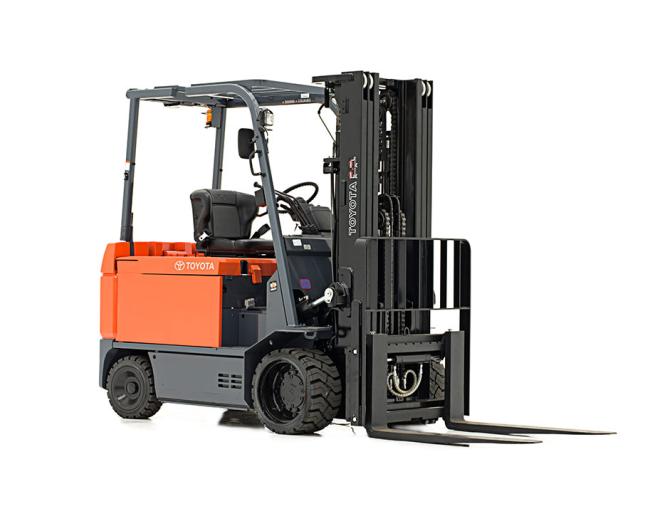

Large Electric Forklift
| Model Number | Load Capacity* (lbs.) | Max. Travel Speed Full Load (MPH) | Max. Lift Speed Full Load (FPM) | Max. Gradeability Full Load (%) | Basic Right Angle Stack** (IN.) |
|---|---|---|---|---|---|
| 7FBCU35 | 8,000 | 8.4 (36V), 10.9 (48V) | 51.2 (36V), 72.9 (48 V) | 16 (36V), 22 (48V) | 102.6 |
| 7FBCU45 | 10,000 | 7.8 (36V), 10.9 (48V) | 43 (36V), 57 (48V) | 13 (36V), 18 (48V) | 106.7 |
| 7FBCU55 | 12,000 | 7.5 (36V), 9.3 (48V) | 37 (36V), 53 (48V) | 14 (36V), 20 (48V) | 116.9 |
Features
-
Strategically configured instrument display
-
AC drive motor (no brushes or commutator)
-
Planned Maintenance Indicator
-
Key Lowering Interlock
-

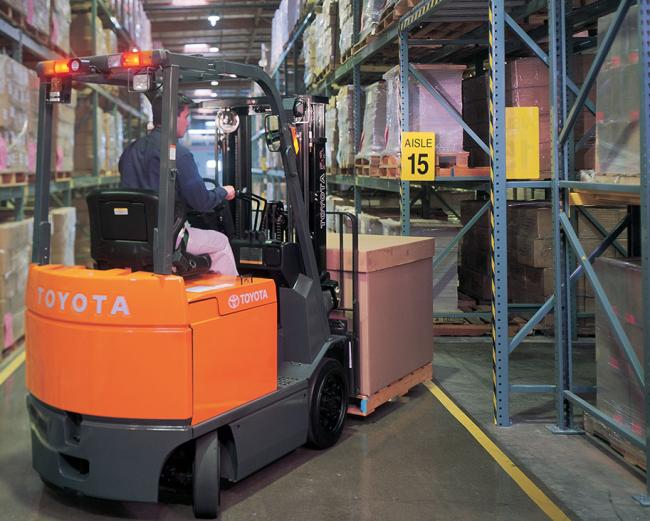

Navigation in 12.5-13.5 foot aisles
-

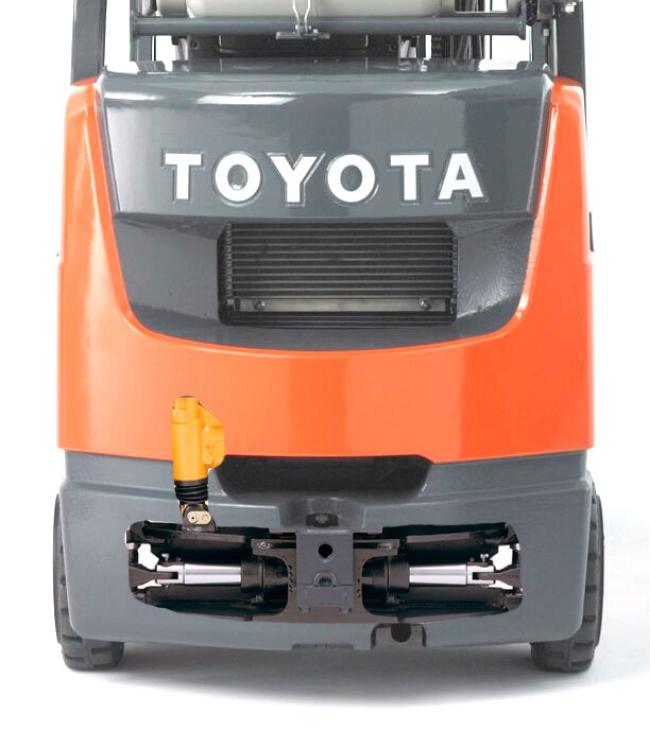

Hydrostatic Power Steering
-
Self-diagnostics
-
Operator Presence Sensing System (OPSS)
-
System of Active Stability (SAS)
-
Cowl-mounted hydraulic controls
-
Bolt-On Overhead Guard
-
Emissions: 0
-
Up to 20‘ Lift heights
-
Digital multifunction display
-
UL Approved Model Type E
-
Built-In analyzer
-
Double-Action Parking Brake
-
Electrical System: 36/48 V
-
Auto Shut-Off
-
Up to 12,000 lb. Lifting Capacity
-
Electric Horn
-
Battery compartment hood assist dampers
-
Electric Hydraulic Power Steering
-
Easy access hydraulic motor
-
System of Active Stability
-
AC drive system (MOSFET Transistor)
-
Easy access no-tools floorboard
-
Easy Access Controller
-
MPH Travel Speed: 10.9
-
Dual operator assist grips
-
Electric directional shift control
-
Three forms of energy regeneration
-
Two-spoke steering wheel
-
AC Drive System
-
Memory tilt steering column
-
Punched plate entry/exit step
Specifications
Electrical System: |
36 / 48 V Electrical System |
Length to Forkface: |
98.8 - 113 in |
Load Capacity: |
8,000 - 12,000 lb. Load Capacity |
Overall Width: |
47.6 - 53.1 in |
Overhead Guard Height: |
90 - 93.3 in |
Travel Speed Full Load: |
7.5 - 10.9 mph Travel Speed Full Load |
