Toyota Stand-Up Rider (3,000-4,000 LBS)

Electric Forklifts


How can we help?

(406) 541-8903

Overview

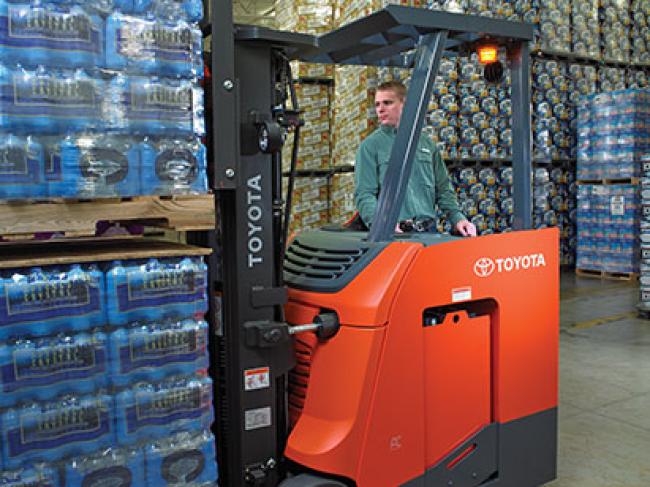

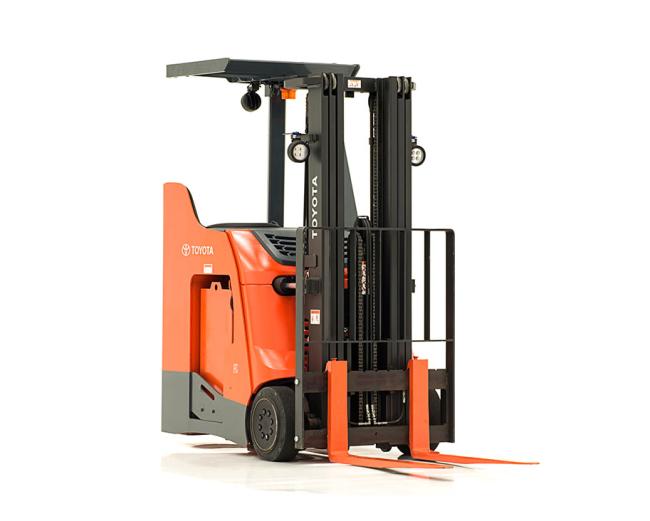

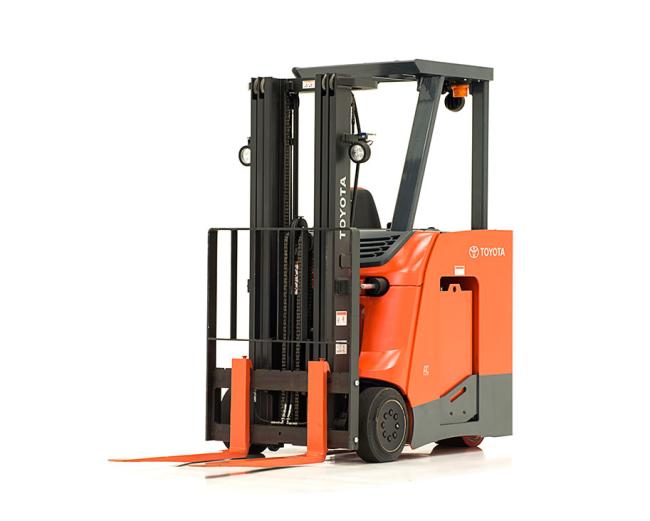

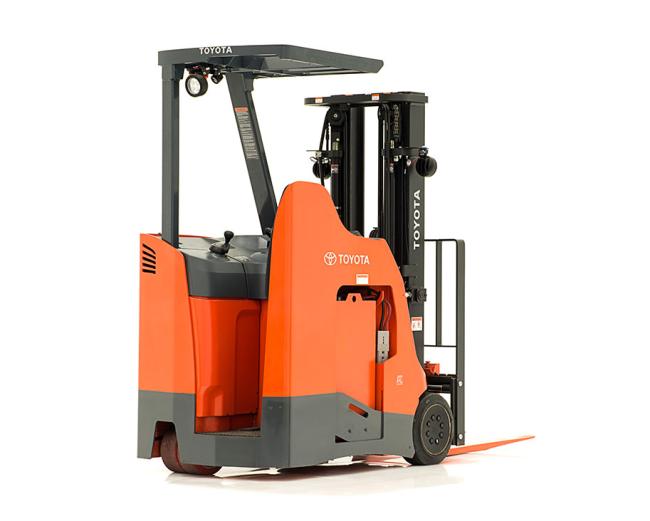

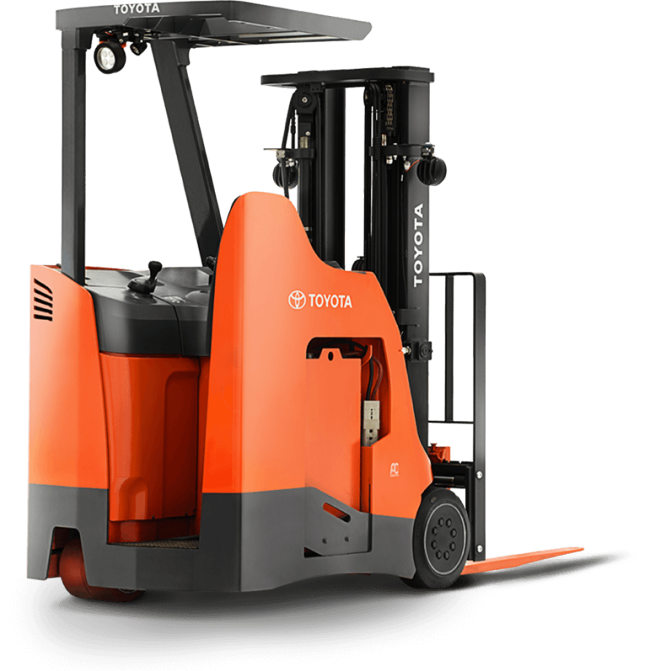

The unique dock-to-stock capability of the Toyota Stand-Up Rider Forklift makes it top of its class and one of the most versatile forklifts in Toyota’s product line. Because it is designed for 5,000 lb. loads, it is more flexible and can handle more capacity at greater heights with added durability. Its compact design allows it to seamlessly navigate narrow aisles with ease, giving you the ability to store more products in your facility. This Toyota Forklift delivers improved ergonomics, reliability, and sturdiness while reducing service intervals. The Toyota Stand-Up Rider is a multi-purpose forklift that is ready to work when you are.

Stand Up to the Challenge

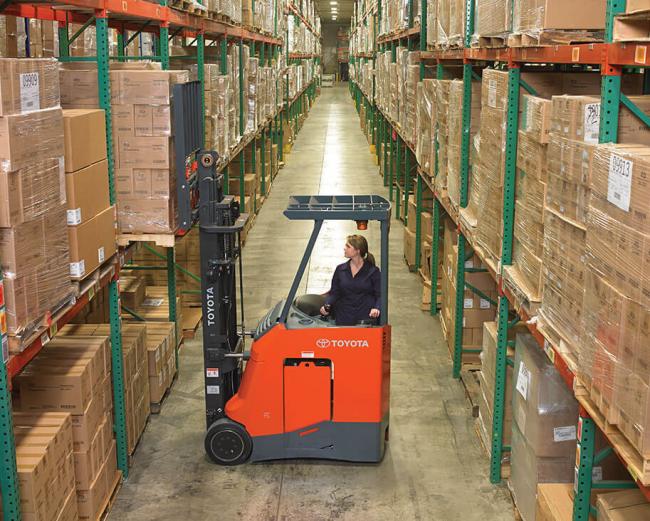

Designed with an angled front cover and overhead guard, Toyota’s Stand-Up Rider helps operators gain better visibility and increased efficiency while the forklift is in use. The standard open-view, 4-cylinder mast provides operators with a clear line of sight. Toyota’s Stand-Up Rider delivers top travel and lift/lower speeds courtesy of the AC drive motor.


Overview

The unique dock-to-stock capability of the Toyota Stand-Up Rider Forklift makes it top of its class and one of the most versatile forklifts in Toyota’s product line. Because it is designed for 5,000 lb. loads, it is more flexible and can handle more capacity at greater heights with added durability. Its compact design allows it to seamlessly navigate narrow aisles with ease, giving you the ability to store more products in your facility. This Toyota Forklift delivers improved ergonomics, reliability, and sturdiness while reducing service intervals. The Toyota Stand-Up Rider is a multi-purpose forklift that is ready to work when you are.

Stand Up to the Challenge

Designed with an angled front cover and overhead guard, Toyota’s Stand-Up Rider helps operators gain better visibility and increased efficiency while the forklift is in use. The standard open-view, 4-cylinder mast provides operators with a clear line of sight. Toyota’s Stand-Up Rider delivers top travel and lift/lower speeds courtesy of the AC drive motor.


Stand-Up Rider Forklift

Model Number Load Capacity* (lbs.) Max. Travel Speed Full Load (MPH) Max. Lift Speed Full Load (FPM) Max. Gradeability Full Load (%) Basic Right Angle Stack** (IN.)
8BNCU15-16.5 3,000 7.5 70 15 68.8
8BNCU15/18.5 3,000 7.5 70 15 70.8
8BNCU18/16.5 3,500 7.5 65 15 68.8
8BNCU18/18.5 3,500 7.5 65 15 70.8
8BNCU20-21.5 4,000 7.5 60 15 73.5
8BNCU20/18.5 4,000 7.5 60 15 70.8

Features

  • Regenerative Braking

  • Spacious Operator Compartment

  • Maintenance Indicator

  • One-Piece Top Cover

  • Integrated Clipboard, Amenity Tray & Cup Holder

  • Self-Diagnostics

  • Independent Lift, Steer & Auxiliary Motors

  • Programmable Maintenance Indicator

  • Flexible Side Stance Operator Compartment

  • Low-Effort Brake Pedal

  • Hydrostatic Power Steering

  • Dual Electric Disk Brakes

  • Temperature Indicator

  • Battery Compartment Rollers

  • AC Transistor Control System with MOSFET

  • Navigation in 10‘ aisles

  • Cushion Ride Suspension

  • Volt Motor: 36

  • Hydraulic Mast Cushioning

  • 36 Volt Electrical System

  • Low Step Height

  • Cornering Speed Control

  • Emissions: 0

  • Built-In Analyzer

  • Cushioned Padded Backrest & Armrest

  • Up to 23‘ Lift height

  • MPH Travel Speed: 7.5

  • High Visibility Mast & Overhead Guard

  • AC Induction Drive and Lift Motors

  • Up to 4,000 lb. Lifting Capacity

Specifications

Electrical System:
36 V Electrical System
Length to Forkface:
68.5 - 70.5 in
Load Capacity:
3,000 - 4,000 lb. Load Capacity
Overall Width:
41.5 in
Overhead Guard Height:
88 in
Travel Speed Full Load:
7.5 mph Travel Speed Full Load
  • Details

    Stand-Up Rider Forklift

    Model Number Load Capacity* (lbs.) Max. Travel Speed Full Load (MPH) Max. Lift Speed Full Load (FPM) Max. Gradeability Full Load (%) Basic Right Angle Stack** (IN.)
    8BNCU15-16.5 3,000 7.5 70 15 68.8
    8BNCU15/18.5 3,000 7.5 70 15 70.8
    8BNCU18/16.5 3,500 7.5 65 15 68.8
    8BNCU18/18.5 3,500 7.5 65 15 70.8
    8BNCU20-21.5 4,000 7.5 60 15 73.5
    8BNCU20/18.5 4,000 7.5 60 15 70.8
  • Features

    Features

    • Regenerative Braking

    • Spacious Operator Compartment

    • Maintenance Indicator

    • One-Piece Top Cover

    • Integrated Clipboard, Amenity Tray & Cup Holder

    • Self-Diagnostics

    • Independent Lift, Steer & Auxiliary Motors

    • Programmable Maintenance Indicator

    • Flexible Side Stance Operator Compartment

    • Low-Effort Brake Pedal

    • Hydrostatic Power Steering

    • Dual Electric Disk Brakes

    • Temperature Indicator

    • Battery Compartment Rollers

    • AC Transistor Control System with MOSFET

    • Navigation in 10‘ aisles

    • Cushion Ride Suspension

    • Volt Motor: 36

    • Hydraulic Mast Cushioning

    • 36 Volt Electrical System

    • Low Step Height

    • Cornering Speed Control

    • Emissions: 0

    • Built-In Analyzer

    • Cushioned Padded Backrest & Armrest

    • Up to 23‘ Lift height

    • MPH Travel Speed: 7.5

    • High Visibility Mast & Overhead Guard

    • AC Induction Drive and Lift Motors

    • Up to 4,000 lb. Lifting Capacity

  • Specifications

    Specifications

    Electrical System:
    		36 V Electrical System
    Length to Forkface:
    		68.5 - 70.5 in
    Load Capacity:
    		3,000 - 4,000 lb. Load Capacity
    Overall Width:
    		41.5 in
    Overhead Guard Height:
    		88 in
    Travel Speed Full Load:
    		7.5 mph Travel Speed Full Load
