Toyota Counter-Balanced Stacker (2,000-4,000 LBS)
Pallet Jacks and Stackers
How can we help?
(509) 535-1776

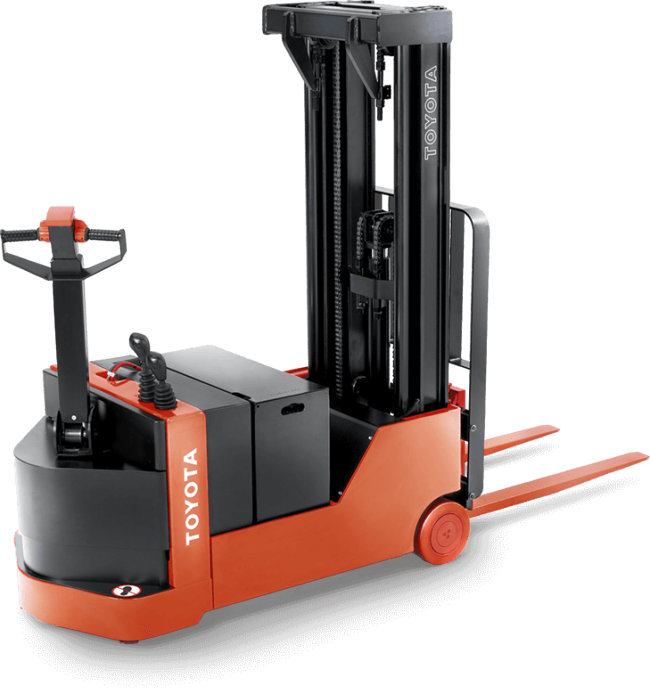

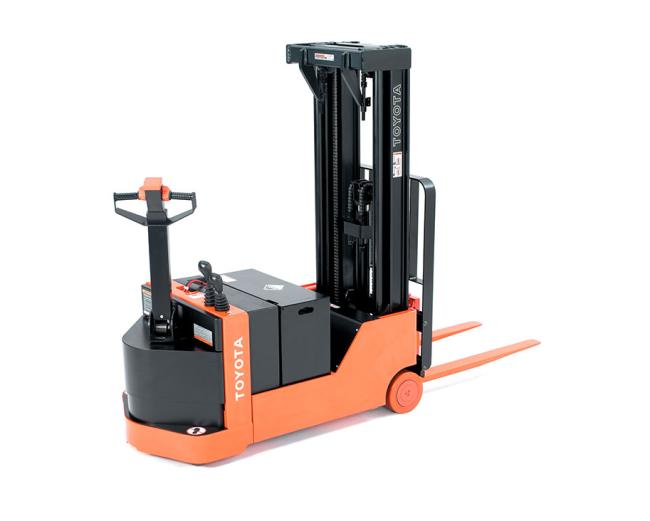

Counter-Balanced Stacker
| Model Number | Load Capacity* (lbs.) | Max. Travel Speed Full Load (MPH) | Max. Lift Speed Full Load (FPM) | Max. Gradeability Full Load (%) | Basic Right Angle Stack** (IN.) |
|---|---|---|---|---|---|
| 6BWC10 | 2,000 | 2.9 | 37 | 6 | 111 |
| 6BWC15 | 3,000 | 3 | 32 | 6 | 116 |
| 6BWC20 | 4,000 | 2.8 | 27 | 6 | 122 |
Continued Performance
According to recent studies by Peerless Research Group, more and more forklift owners plan to keep their forklifts for 10+ years! Just like a car, truck or other motorized asset, periodic maintenance, service and upkeep is required, even under normal operating conditions, to keep your Toyota Center-Controlled Rider Pallet Jack operating to peak performance. It is not uncommon for Toyota forklift owners to well exceed 10 years of use, as long as the forklift is properly maintained. Paired with a Planned Maintenance (PM) Plan, the Center-Controlled Rider Pallet Jack can be an asset for your company for years to come.
Features
-
High-Visibility Mast
-
Mechanical Drum Brake
-
30-Inch Wide ITA Class II Hook-Type Carriage
-
FPM Lift Speed: 37
-
Up to 15‘ Lift Height
-
Electric Horn
-
Steel Access Door
-
SB-175 Red Connector
-
Automatic Resetting Circuit Breaker
-
Reverse Polarity Protection Contactor
-
MOSFET Programmable Controller
-
Emergency Power Disconnect Switch
-
Multifunction Control Handle
-
UL-Approved Model Type E
-
Direction Reverse Switch In Control Handle
-
Volt Motor: 24
-
Emissions: 0
-
Directional Thumb Control
-
Pressure-Overload Relief Valve and Lowering Control Fuses
-
24 Volt Electrical System
-
On/Off Key Switch
-
Power On Self Test
-
Fully-Programmable Drive System
-
9-10‘ Aisle Widths
-
High Visibility Mast
-
Easy-Access Service Cover
-
Up to 4,000 lb. Lifting Capacity
Specifications
Length to Forkface: |
64.8 - 76.6 in |
Load Capacity: |
2,000 - 4,000 lb. Load Capacity |
Mast Lowered Height: |
83 in |
Overall Width: |
34.1 in |
Travel Speed Full Load: |
2.8 - 3 mph Travel Speed Full Load |
Voltage: |
24 Voltage |
