Toyota End-Controlled Rider Pallet Jack (6,000-8,000 LBS)
Pallet Jacks and Stackers
How can we help?
(406) 541-8903
Continued Performance
According to recent studies by Peerless Research Group, more and more forklift owners plan to keep their forklifts for 10+ years! Just like a car, truck or other motorized asset, periodic maintenance, service and upkeep is required, even under normal operating conditions, to keep your Toyota End-Controlled Rider Pallet Jack operating to peak performance. It is not uncommon for Toyota forklift owners to well exceed 10 years of use, as long as the forklift is properly maintained. Paired with a Planned Maintenance (PM) Plan, the End-Controlled Rider Pallet Jack can be an asset for your company for years to come.
Option for Cold Climates
Toyota’s End-Controlled Rider Pallet Jack offers various solutions for extreme climates, including galvanized options, cold conditioning packages and ergonomic features to accommodate heavy gloves.
End-Controlled Rider Pallet Jack
| Model Number | Load Capacity* (lbs.) | Max. Travel Speed Full Load (MPH) | Max. Lift Speed Full Load (FPM) | Max. Gradeability Full Load (%) | Basic Right Angle Stack** (IN.) |
|---|---|---|---|---|---|
| 8HBE30 | 6000 | 6.2 | N/A | 10 | 85.4 |
| 8HBE40 | 8000 | 6.2 | N/A | 10 | 129.3 |
Features
-
One-Piece, Lightweight Service Access Cover
-
Dual Thumb Wheels with Twist Grips for Directional Control and Travel Speed
-
AC Drive System
-
Volt Motor: 24
-
Self-Adjusting Electric Disc Brake
-
WRAP-AROUND HAND GUARD
-
Welded Construction with Reinforced Heavy-Duty Bumper
-
AC Drive Motor (No Brushes or Commutator)
-
Galvanized option for wet or cold climates
-

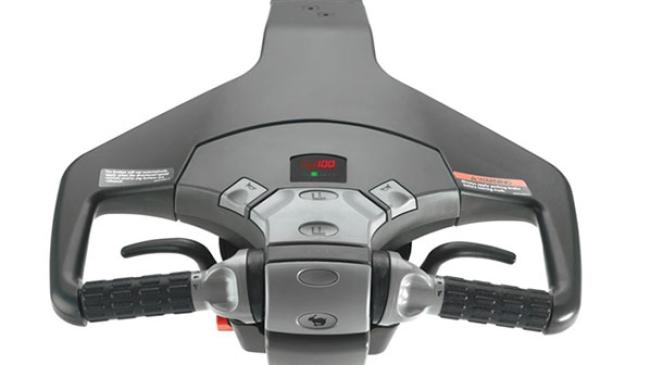

Multifunction Control Handle with Ergonomically Angled Hand Grips and Wrap-Around Hand Guard
-
Box Rail Fork Construction
-
Regenerative Braking
-
Controller Area Network (CAN-bus) Communications
-
Up to 8,000 lbs. Carrying Capacity
-
SPRING-LOADED CONTROL HANDLE
-
RUNAWAY PROTECTION
-
DIRECTIONAL REVERSE SWITCH ON CONTROL HANDLE
-
24-Volt Electrical System
-
Soft-Cushioned Rider Platform
-
ELECTRIC HORN
-
Low Platform Step Height
-
Programmable Performance
-
MPH travel speed: 6.2
-
96‘ forks option for order picking
-
STABILITY HAND RAIL WITH LIFT, LOWER, HORN AND HIGH-SPEED FUNCTIONS
-
Teflon® Coated PolyLubeLift Linkage Bushings (Maintenance Free)
-
Intuitively Positioned Lift/Lower and Horn Buttons (Horn Button on 8TB50 Only)
-
EMISSIONS: 0
-
Error Indicator with Self-Diagnostics
Specifications
Height (Extended Handle): |
56.7 in |
Load Capacity: |
6,000 - 8,000 lb. Load Capacity |
Overall Length: |
76.4 - 186.8 in |
Overall Width: |
36 in |
Travel Speed Full Load: |
6.2 mph Travel Speed Full Load |
Voltage: |
24 Voltage |
