Toyota Industrial Walkie Stacker (2,200-4,000 LBS)
Pallet Jacks and Stackers
How can we help?
(509) 535-1776

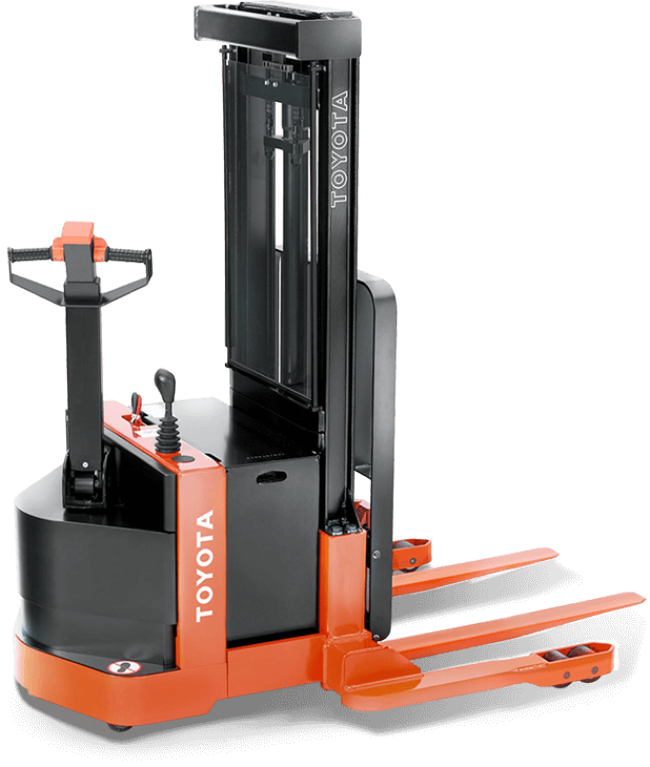

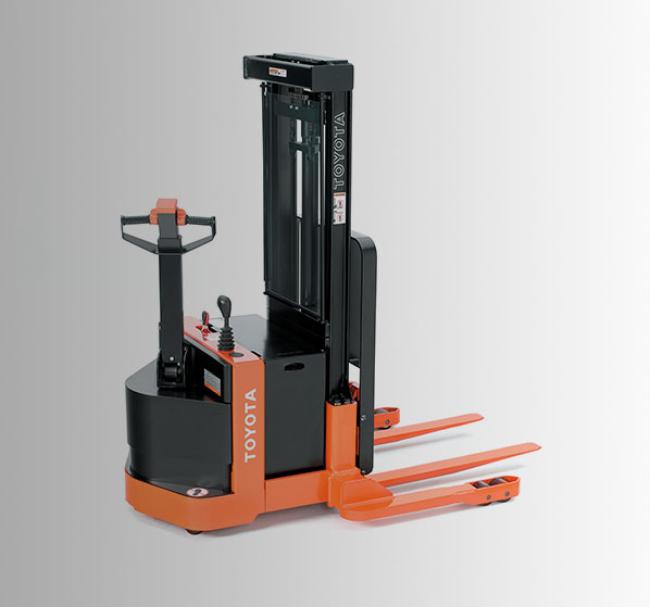

Industrial Walkie Stacker
| Model Number | Load Capacity* (lbs.) | Max. Travel Speed Full Load (MPH) | Max. Lift Speed Full Load (FPM) | Max. Gradeability Full Load (%) | Basic Right Angle Stack** (IN.) |
|---|---|---|---|---|---|
| 6BSW11 | 2,200 | 2.9 | 32 | 6 | 81 |
| 6BWS15 | 3,000 | 2.9 | 32 | 6 | 85 |
| 6BWS20 | 4,000 | 2.6 | 27 | 6 | 88 |
Continued Performance
According to recent studies by Peerless Research Group, more and more forklift owners plan to keep their forklifts for 10+ years! Just like a car, truck or other motorized asset, periodic maintenance, service and upkeep is required, even under normal operating conditions, to keep your Toyota Industrial Stacker operating to peak performance. It is not uncommon for Toyota forklift owners to well exceed 10 years of use, as long as the forklift is properly maintained. Paired with a Planned Maintenance (PM) Plan, the Industrial Stacker can be an asset for your company for years to come.
Features
-
Multifunction Control Handle
-
Power On Self Test
-
Directional Thumb Control
-
FPM Lower Speed: 60
-
Safety Glass Mast Guard
-
Fully-Programmable Drive System
-
Navigation in 7-8‘ aisles
-
MOSFET Programmable Controller
-
Mechanical Drum Brake
-
Battery Compartment: 32.3‘ x 13.3‘ x Open Height
-
On/Off Key Switch
-
Easy-Access Service Cover
-
Automatic Resetting Circuit Breaker
-
24 Volt Electrical System
-
UL-Approved Model Type E
-
Electric Horn
-
Reverse Polarity Protection Contactor
-
Up to 4,000 lb. Lifting Capacity
-
Steel Access Door
-
SB-175 Red Connector
-
High-Visibility Mast
-
Emergency Power Disconnect Switch
-
MPH Travel Speed: 2.8
-
Direction Reverse Switch In Control Handle
-
12‘ Lift Heights
-
Emissions: 0
Specifications
Length to forkface: |
38.4 - 47.9 in |
Load Capacity: |
2,200 - 4,000 lb. Load Capacity |
Mast Lowered Height: |
83 in |
Overall Width: |
40 - 58 in |
Travel Speed Full Load: |
2.6 - 2.9 mph Travel Speed Full Load |
Voltage: |
24 Voltage |
