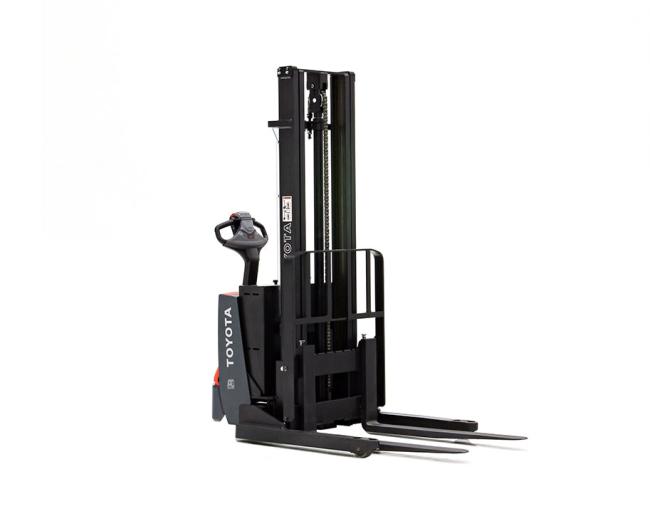

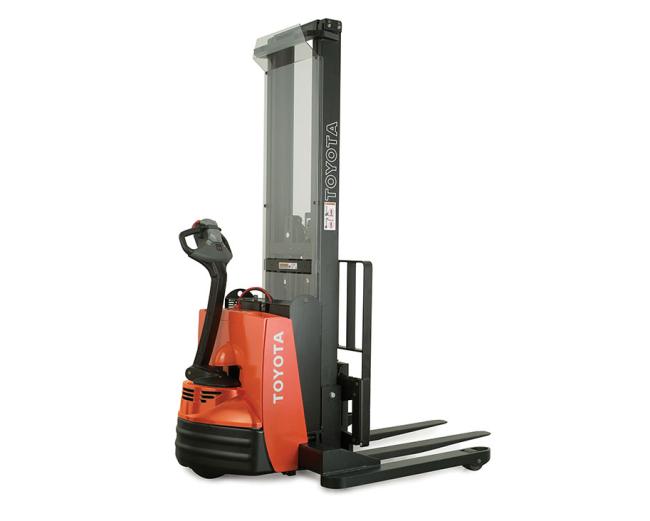

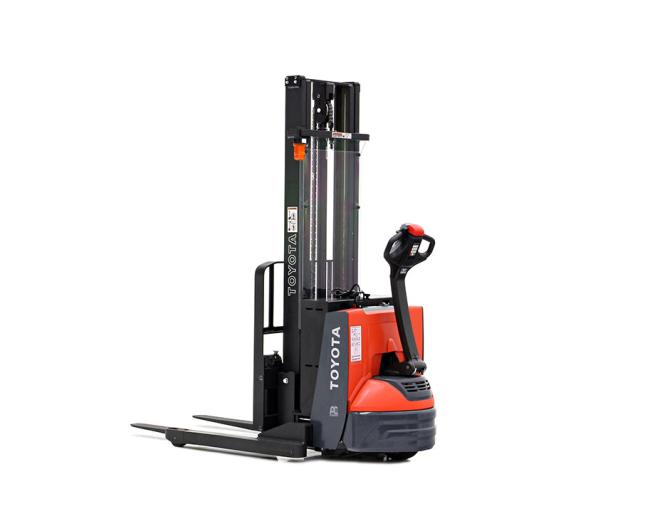

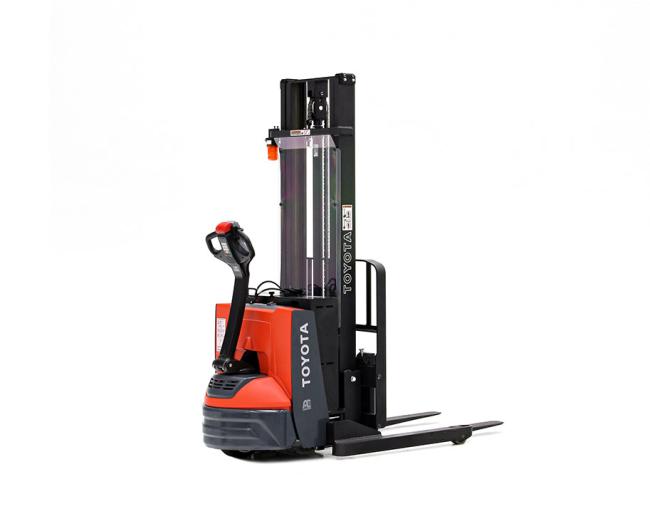

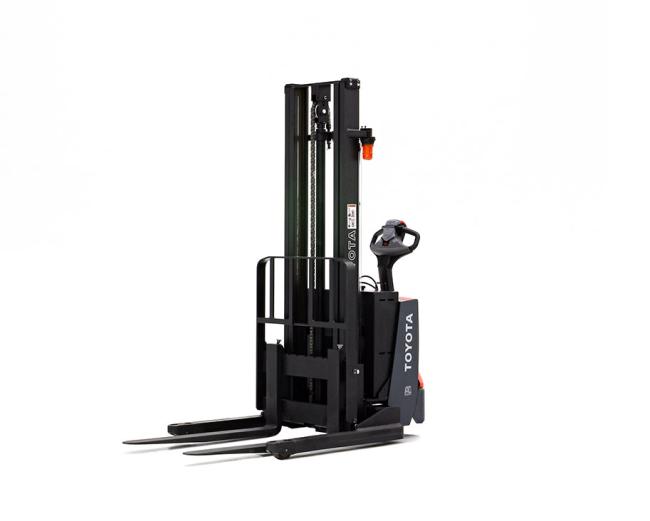

Walkie Stacker (2,000-2,500 LBS)
Walkie Stacker (2,000-2,500 LBS)
Walkie Stacker (2,000-2,500 LBS)
Walkie Stacker (2,000-2,500 LBS)
Walkie Stacker (2,000-2,500 LBS)
Walkie Stacker (2,000-2,500 LBS)
Walkie Stacker (2,000-2,500 LBS)
Walkie Stacker (2,000-2,500 LBS)
Walkie Stacker (2,000-2,500 LBS)
Walkie Stacker (2,000-2,500 LBS)
Walkie Stacker (2,000-2,500 LBS)
Walkie Stacker (2,000-2,500 LBS)
Walkie Stacker (2,000-2,500 LBS)
Walkie Stacker (2,000-2,500 LBS)
Walkie Stacker (2,000-2,500 LBS)
Walkie Stacker (2,000-2,500 LBS)
Walkie Stacker (2,000-2,500 LBS)
Walkie Stacker (2,000-2,500 LBS)
Walkie Stacker (2,000-2,500 LBS)
Walkie Stacker (2,000-2,500 LBS)

Overview

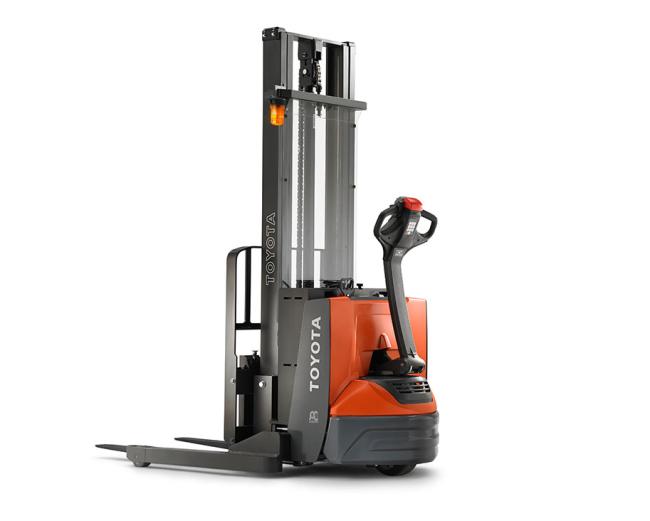

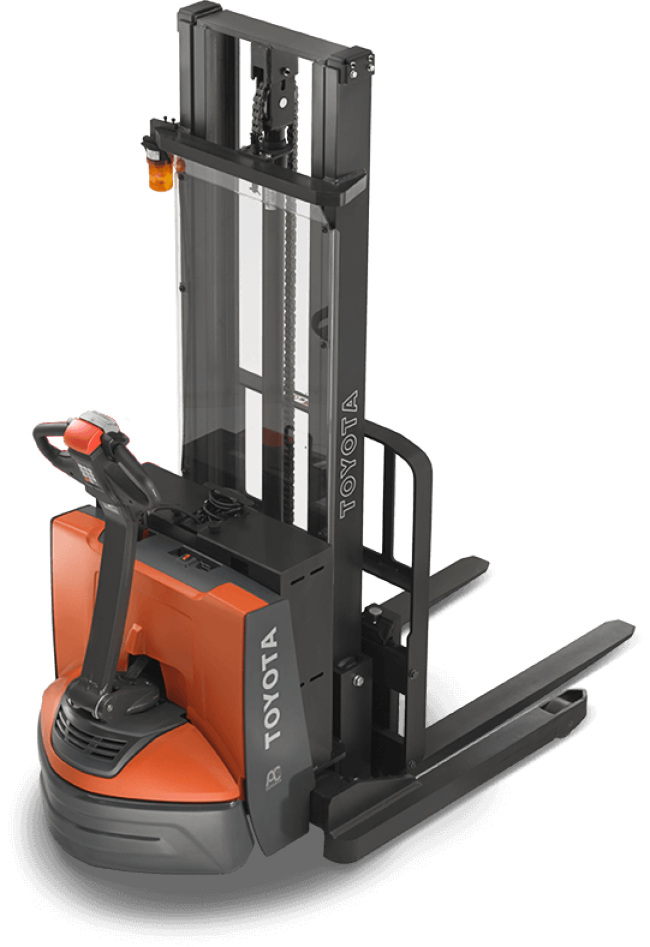

Toyota’s industry-leading Walkie Stacker includes adjustable baselegs to accommodate various pallet sizes and aisle widths. The versatility of this walk behind forklift makes it a strong complement to nearly any indoor application. Extremely durable and budget friendly, the Toyota Walkie Stacker Forklift can help increase both your uptime and your bottom line.


Walkie Stacker

Model Number Load Capacity* (lbs.) Max. Travel Speed Full Load (MPH) Max. Lift Speed Full Load (FPM) Max. Gradeability Full Load (%) Basic Right Angle Stack** (IN.)
8BWS10 2000 3.4 20 - 53 6 86.7
8BWS13 2500 3.4 19 - 54 10 86.7

Continued Performance

According to recent studies by Peerless Research Group, more and more forklift owners plan to keep their forklifts for 10+ years! Just like a car, truck or other motorized asset, periodic maintenance, service and upkeep is required, even under normal operating conditions, to keep your Toyota Industrial Stacker operating to peak performance. It is not uncommon for Toyota forklift owners to well exceed 10 years of use, as long as the forklift is properly maintained. Paired with a Planned Maintenance (PM) Plan, the Industrial Stacker can be an asset for your company for years to come.

Features

  • Electronic Brake Release

  • Volt Motor: 24

  • Increased Bumper Clearance

  • Error Indicator with Self-Diagnostics

  • 182º Steering Arc

  • Click-to-Creep travel function

  • Stainless Steel Linkage Pins

  • 24 Volt Electrical System

  • Rated: IP65

  • Safety Glass Mast Guard

  • One-piece High-Strength Service Cover

  • Up to 2,500 lb. Lifting Capacity

  • Click-to-Creep Function

  • Navigation in 7-8‘ aisles

  • Battery Compartment: 27.3‘L x 7.8‘W x Open Height

  • Bolt-On Mast Mounting

  • IP65 Electrical System

  • Electric Horn

  • Directional Thumb Wheels

  • Controller Area Network (CAN-Bus) Communication

  • Fingertip Control of all Functions

  • Emissions: 0

  • Transistor Drive Control System (MOSFET)

  • Class ‘F‘ Motor Insulation

  • AC Drive Motor

  • Programmable Neutral Speed Reduction

  • Direction Reverse Switch

  • Emergency Power Disconnect Switch

  • Programmable Performance

  • Battery Discharge Indicator & Correction With Lift Interrupt

  • Multifunction Control Handle with Ergonomically-Angled Hand Grips

  • Rugged, All-Steel Frame Construction

  • Programmable Service Indicator

  • Up to 12‘ Lift Heights

  • Regenerative Braking

  • 32‘ to 51‘ Straddle Openings Available

  • Heavy Duty Bumpers

Specifications

Electrical System:
24 V Electrical System
Length to forkface:
35.6 in
Load Capacity:
2,000 - 2,500 lb. Load Capacity
Mast Lowered Height:
71 - 91 in
Overall Width:
40 - 59 in
Travel Speed Full Load:
3.4 mph Travel Speed Full Load
